Hydraulic Hose Crimping Machine Troubleshooting Guide: Common Problems & Solutions

Your crimping machine just stopped working in the middle of an important job. Every minute of downtime costs money and frustrates customers.

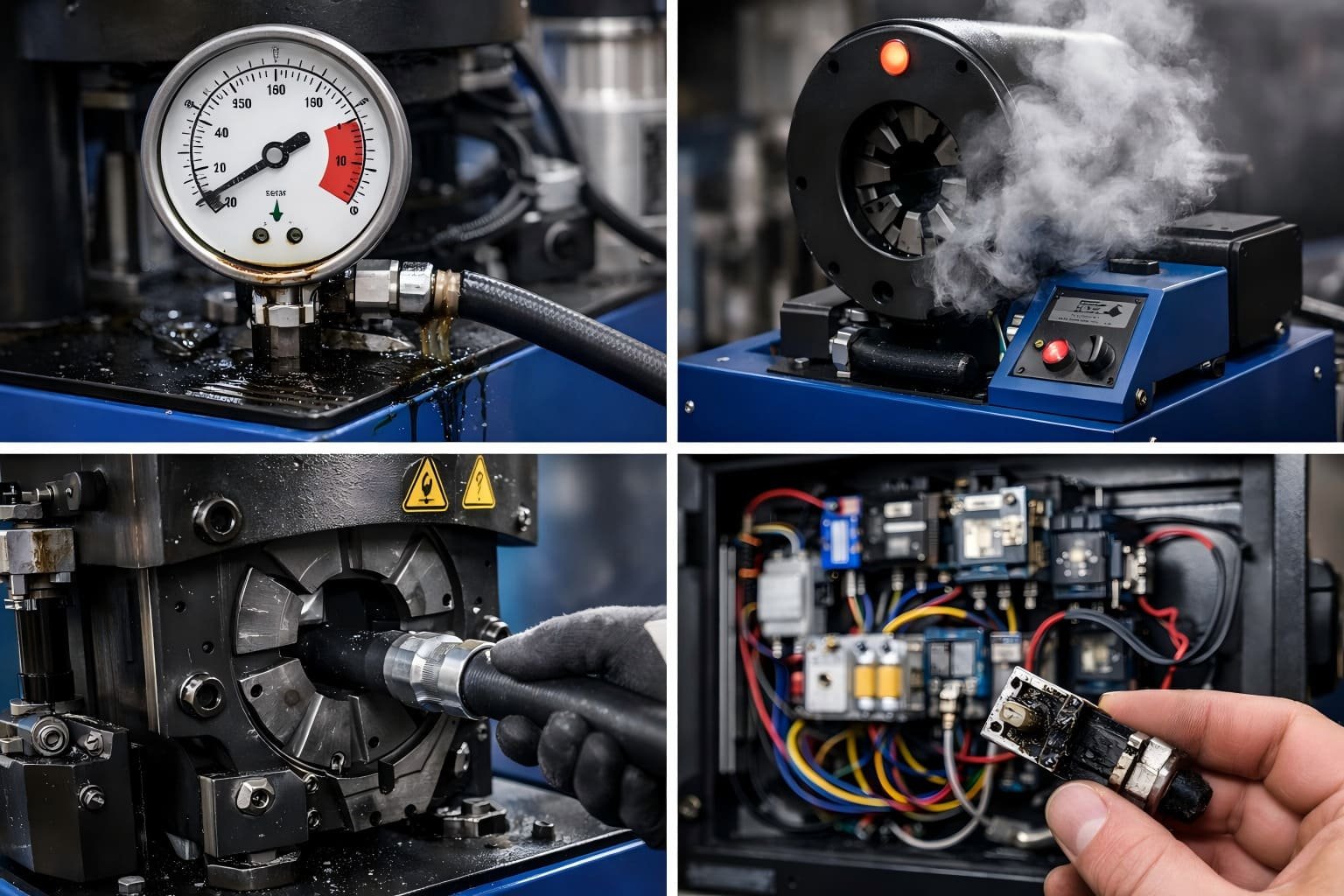

Hydraulic hose crimping machine problems¹ typically involve pressure issues², excessive noise³, movement malfunctions⁴, or electrical failures⁵. Most issues stem from hydraulic oil problems⁶, worn components⁷, air in the system⁸, or improper maintenance⁹ that can be resolved with systematic troubleshooting.

At CYT-HYDRAULIC, I've helped countless customers solve crimping machine problems over the phone. Most issues follow predictable patterns that you can fix yourself with the right knowledge.

What causes no pressure or low pressure in hydraulic hose crimping machines?

Machine won't build pressure when you need it most? This frustrating problem has several common causes that are easier to fix than you think.

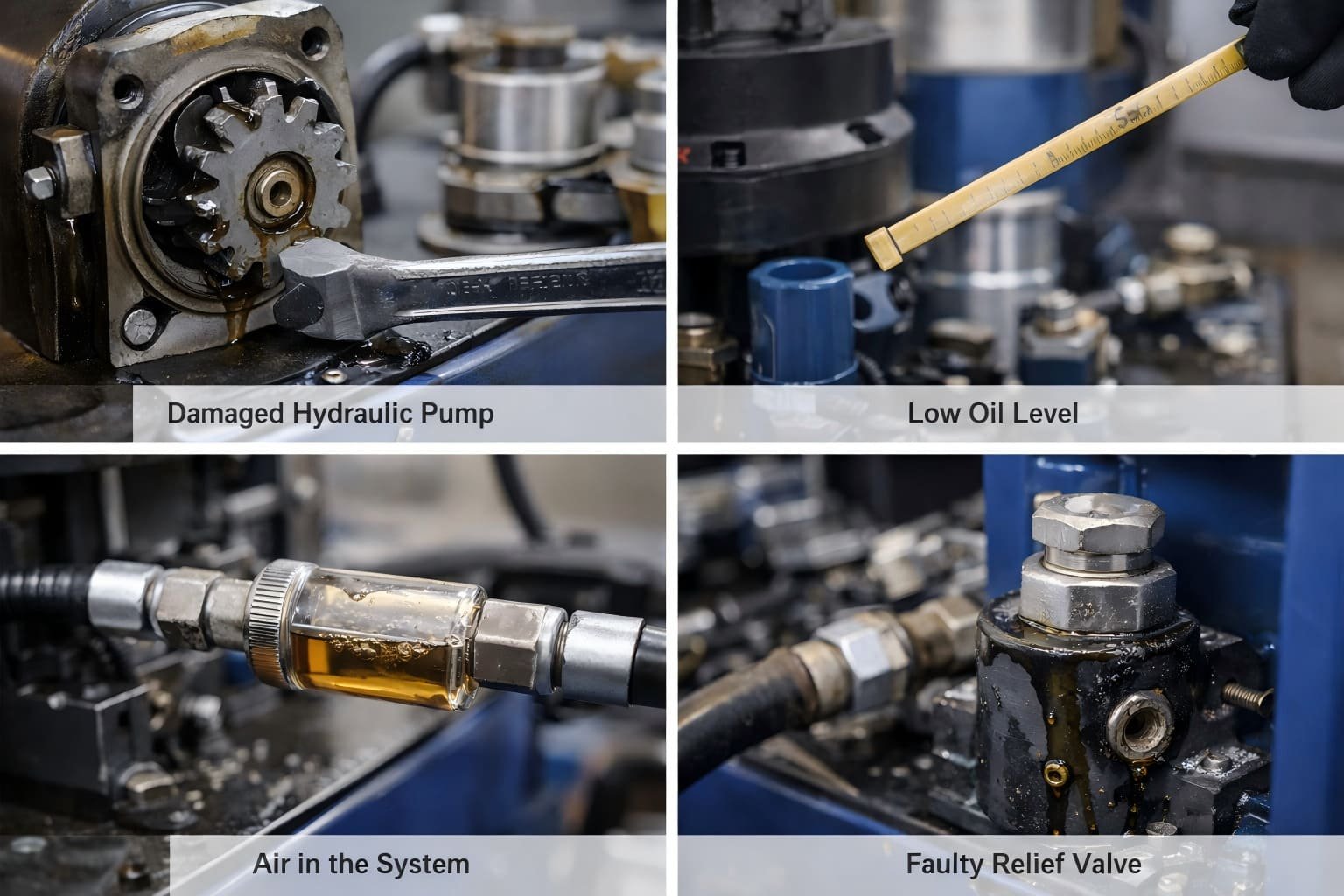

No pressure or low pressure in crimping machines usually results from damaged hydraulic pumps¹⁰, low oil levels, air in the system⁸, or faulty relief valves¹¹. These issues prevent proper hydraulic force generation needed for effective hose crimping operations.

Complete Pressure Loss Solutions

When your machine shows zero pressure, start with the basics. Check your hydraulic oil level first. I can't count how many service calls I've received where the solution was simply adding oil. Air enters the system when oil levels drop too low, preventing pressure buildup.

The hydraulic plunger pump creates system pressure. If it's damaged internally, you'll get no pressure output. Listen for unusual pump noises or check for external oil leaks around the pump housing. A damaged pump needs immediate replacement to restore function.

Relief valve malfunction is another common cause. These valves regulate maximum system pressure and can stick open or closed. Clean the relief valve thoroughly with hydraulic fluid. If cleaning doesn't work, replacement becomes necessary.

Low Pressure Diagnosis and Repair

Low pressure problems often develop gradually. You might notice reduced crimping force before complete failure occurs. The overflow valve regulates system pressure through spring tension. If the spring deforms or weakens, pressure drops below operating requirements.

O-shaped joint rings in the reversing valve create seals between moving parts. When these rings fail, internal leakage reduces system pressure. Similarly, damaged seals in the oil cylinder allow pressurized fluid to bypass, reducing available force.

Pipeline leaks represent the most visible pressure loss. Check all hydraulic connections for external leakage. Tighten loose fittings and replace damaged ones. Even small leaks can significantly impact system performance over time.

Why does my crimping machine make excessive noise³ and vibrate?

Strange noises and vibrations from your crimping machine signal serious problems that need immediate attention before they cause expensive damage.

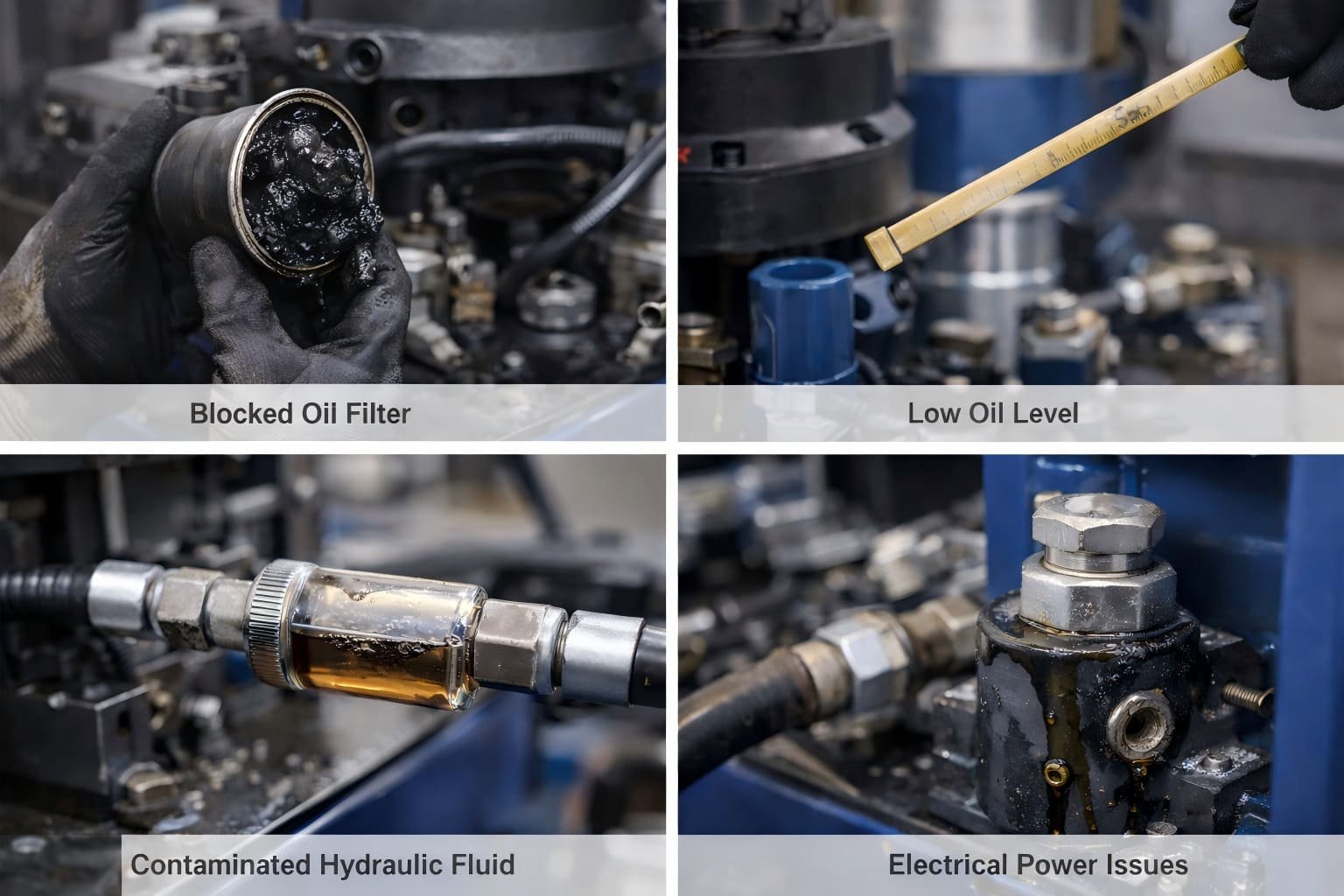

Excessive noise and vibration in crimping machines typically indicate blocked oil filters¹², contaminated hydraulic fluid¹³, low oil levels, or electrical power issues¹⁴. These problems can damage components and reduce machine lifespan if not addressed quickly.

Noise-Related Problems and Solutions

Oil filter blockage creates the most common noise issues. Blocked filters force the pump to work harder, generating excessive noise³ and heat. Clean or replace filters according to manufacturer recommendations. I always tell customers to check filters first when noise problems start.

Hydraulic oil quality directly affects system noise levels. Contaminated or wrong-grade oil causes pump cavitation and valve chatter. Always use manufacturer-specified hydraulic fluid. Change oil regularly to prevent contamination buildup that damages components.

Power phase shortage creates electrical noise and can damage motor windings. Verify all three phases are present and properly connected. Single-phase operation on three-phase motors causes excessive current draw and overheating.

Vibration and Creeping Issues

Air in the hydraulic system causes the most frustrating vibration problems. Air bubbles compress under pressure, creating jerky movements and vibration. Check for foam on the oil surface or in the tank. Air usually enters through loose fittings or low oil levels.

Remove air by operating the cylinder through several full strokes at maximum speed. This forces air bubbles to the surface where they can escape. Always maintain proper oil levels to prevent air entry.

Uneven oil pump supply creates vibration during operation. Internal pump wear causes inconsistent flow output, resulting in jerky cylinder movement. Pump repair or replacement becomes necessary when wear reaches this level.

Overflow valve vibration or system resonance creates mechanical noise transmission. This happens when valve components wear or adjustment becomes improper. Check all valve parts for wear and ensure proper adjustment according to specifications.

How to fix crimping direction and die base synchronization issues?

Crimping dies won't move properly or work out of sync? These mechanical problems can halt production and require systematic diagnosis to resolve effectively.

Crimping direction problems stem from faulty electromagnets¹⁵, broken valve spools, or locked control valves. Die base synchronization issues usually involve oil contamination¹⁶, worn springs, or thick hydraulic fluid that prevents smooth operation.

Directional Control Problems

The reversing valve controls crimping direction through electromagnetic operation. When the electromagnet fails, the valve spool won't move to change direction. Test electromagnet continuity with a multimeter. Replace damaged electromagnets immediately to restore directional control.

Valve spool breakage prevents proper directional switching even with working electromagnets. Internal contamination or excessive wear can break valve spools. Spool replacement requires complete valve disassembly and careful reassembly with proper torque specifications.

Hydraulic control valve locking occurs when contamination blocks spool movement. Clean the valve core thoroughly with approved solvents. Remove all debris and old seals before installing new components. Use only manufacturer-approved replacement parts.

Die Base Synchronization Solutions

Non-synchronous die base operation creates uneven crimping pressure and poor assembly quality. Oil shortage between die bases is the primary cause. Add clean hydraulic oil and operate the machine without dies to distribute oil evenly through all passages.

Spring fatigue causes timing differences between die movements. Worn springs don't provide consistent force, resulting in uneven operation. Replace all die base springs as a set to maintain synchronization. Never replace individual springs unless absolutely necessary.

Thick hydraulic oil prevents smooth die movement, especially in cold conditions. Check oil viscosity specifications and operating temperature range. Change to proper grade oil or install oil heaters for cold weather operation.

Regular maintenance prevents most synchronization problems. Check die base lubrication weekly and replace springs annually under normal use conditions. Monitor oil temperature and viscosity to ensure optimal performance year-round.

What should I do when cylinders, sensors, or power systems fail?

Complete system failures involving cylinders, sensors, or electrical components can seem overwhelming, but most have straightforward solutions when approached systematically.

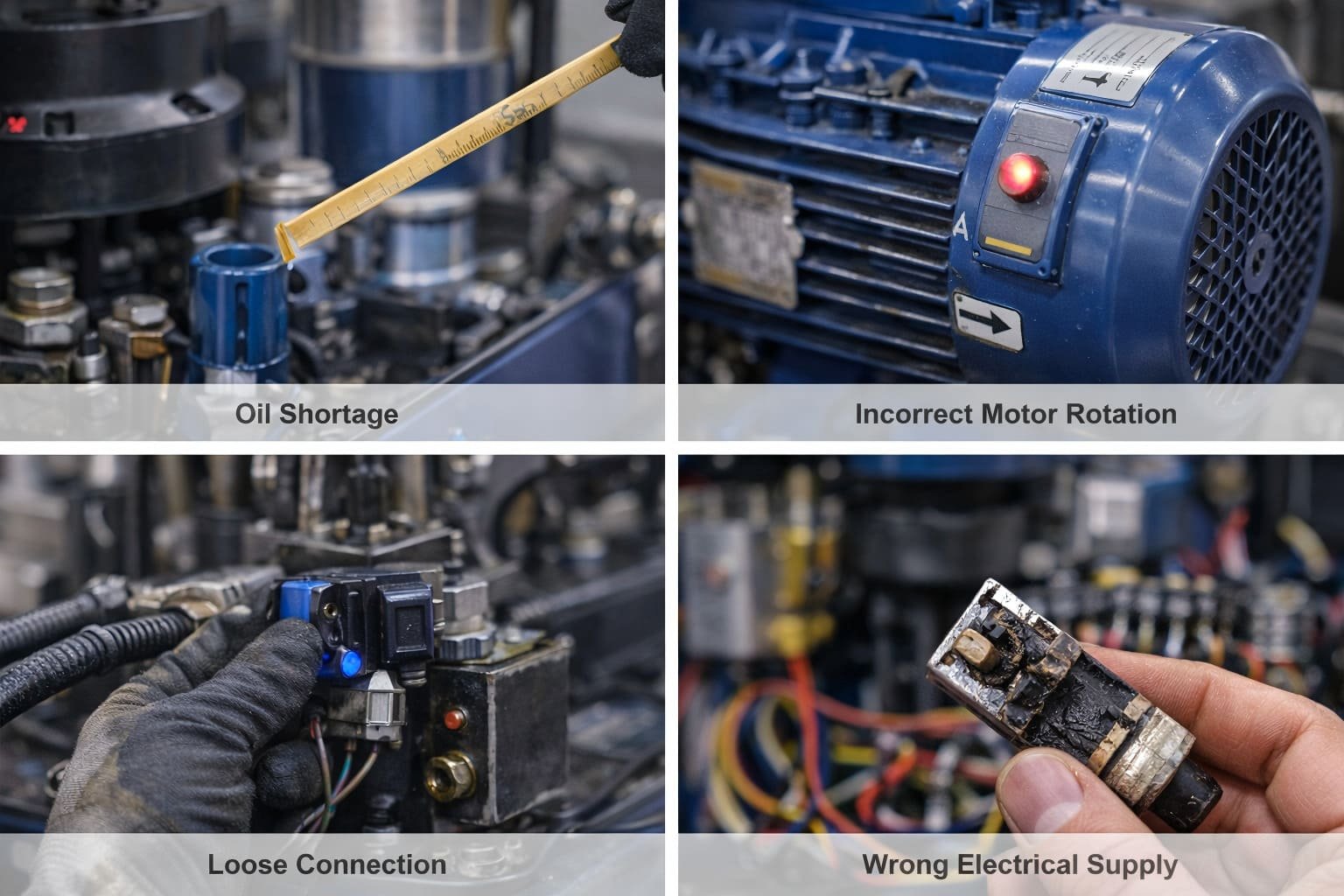

Cylinder, sensor, and power failures typically result from oil shortage, incorrect motor rotation, loose connections, or wrong electrical supply. These problems require careful diagnosis to avoid damaging expensive components during repair attempts.

Hydraulic Cylinder Failures

When hydraulic cylinders stop working after machine operation, oil shortage tops the list of probable causes. Cylinders need constant oil supply for proper operation. Check tank levels and add hydraulic oil to manufacturer specifications.

Motor rotation direction affects pump operation and system pressure. Three-phase motors can rotate in either direction depending on wiring connections. Incorrect rotation reduces pump efficiency or prevents pressure buildup entirely. Swap any two motor leads to reverse rotation direction.

Cylinder seal failure allows internal leakage that prevents proper operation. Look for oil leakage around cylinder rods or decreased holding pressure when stopped. Cylinder rebuild with new seals restores proper function but requires complete disassembly.

Sensor and Electrical Problems

Sensor failures often involve loose wire connections rather than damaged sensors. Vibration loosens electrical connections over time. Check all sensor wiring for tight connections and proper routing away from moving parts.

Virtual wire connections look connected but don't carry electrical current. Clean connection points and ensure proper terminal crimping. Use electrical contact cleaner on oxidized connections before reassembly.

Damaged sensors require replacement with exact manufacturer specifications. Generic sensors may not provide proper signals for machine control systems. Always verify part numbers before ordering replacement sensors.

Power System Troubleshooting

Power supply problems affect entire machine operation. Verify incoming voltage matches machine requirements. Industrial crimping machines typically require specific three-phase power with proper grounding for safe operation.

Check electrical connections at the main panel and motor terminals. Loose connections create heat and voltage drops that damage components. Tighten all electrical connections according to manufacturer torque specifications.

Circuit breakers trip for protection when electrical problems occur. Don't just reset tripped breakers without finding the root cause. Check for short circuits, overloads, or ground faults before restoring power to prevent equipment damage.

Conclusion

Most hydraulic hose crimping machine problems stem from maintenance issues that systematic troubleshooting and proper repair techniques can resolve effectively.
