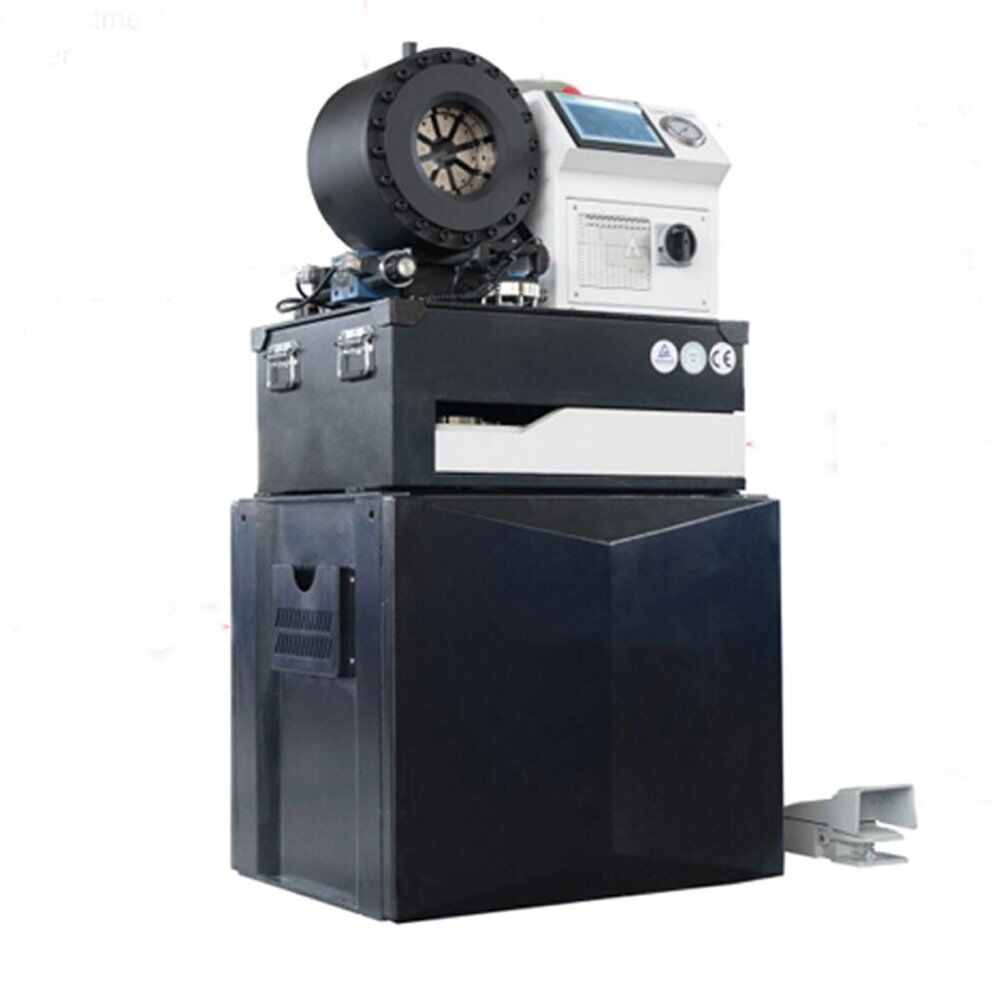

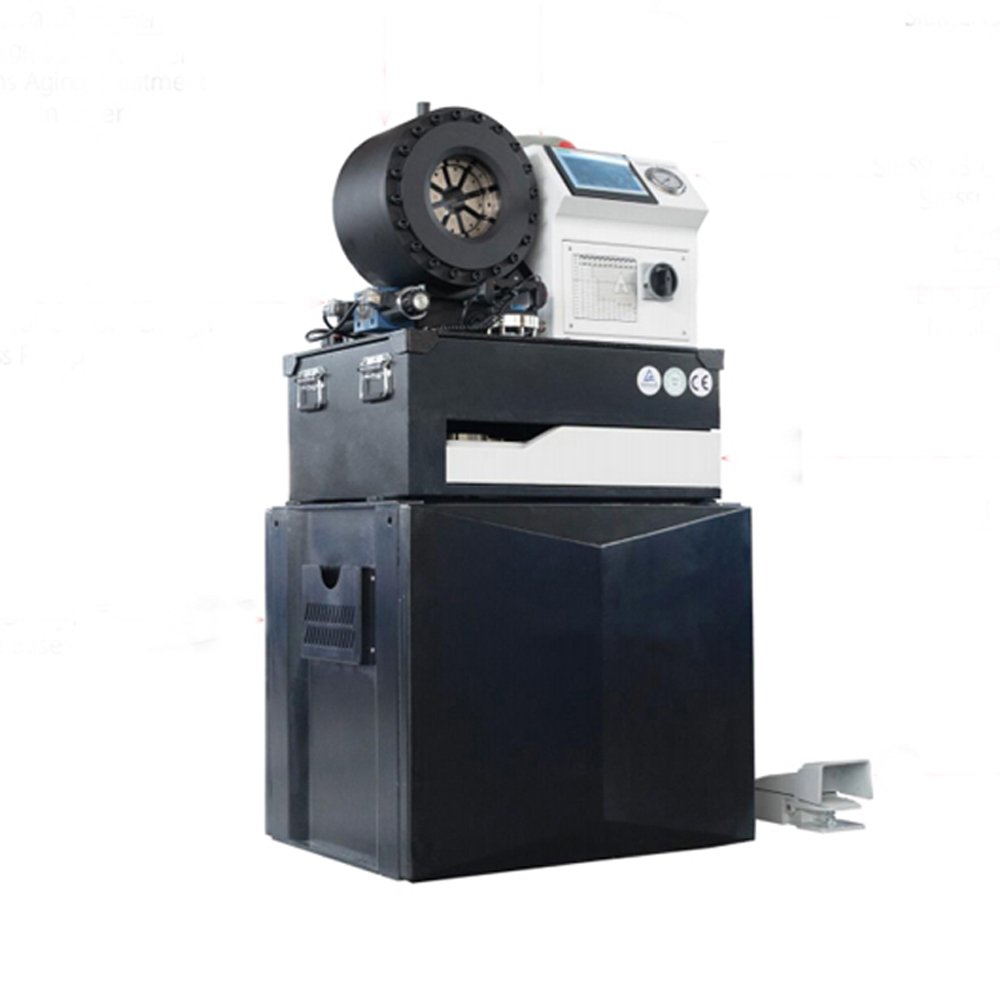

The crimping force of Y120D SIEMENS PLC Digital hydraulic hose crimping machine is 2000KN, with a crimp range of 3~80mm and 10 sets of standard dies. Y120D crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, fire sprinkler hoses, automobile brake cables, water hoses, air conditioner hoses and bathroom hoses etc.
| Crimping Range | 3mm to 61mm |
|---|---|
| Hose Capacity | 2" 4SP |
| Max. Opening | +/-21mm |
| Opening Without Dies | 96mm |
| Master Die Length | 70mm |
| Max. Crimping Force | 1750KN |
| Control | SIEMENS PLC |
| Motor Power | 3kw/4kw |
| Standard Voltage | 110V~480V |
| Noise Level | 60dB(A) |
| Weight | 225kg |
| Size | 650*500*700mm |

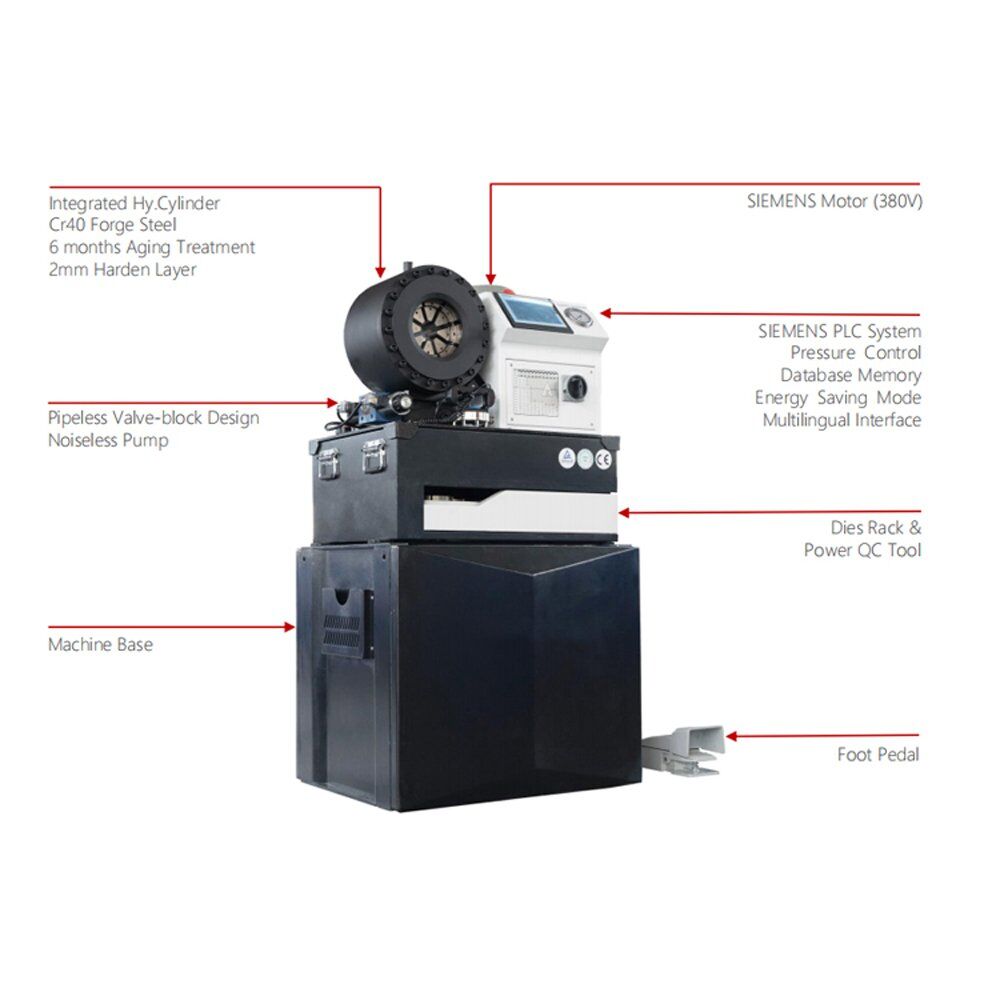

Y120D hose crimper can crimp 1/8″ to 2″ 4SP rubber hose. It adopts SIMENS PLC system and operates more simply. In addition, Database memory can keep crimping datas and improve working efficiency.
At last, it can set different kinds of language so that customer understands.
Y120D hose crimper can crimp 1/8″ to 2″ 4SP rubber hose. It adopts SIMENS PLC system and operates more simply. In addition, Database memory can keep crimping datas and improve working efficiency.
At last, it can set different kinds of language so that customer understands.
| Crimping Range | 3mm to 61mm |
|---|---|
| Hose Capacity | 2" 4SP |
| Max. Opening | +/-21mm |
| Opening Without Dies | 96mm |
| Master Die Length | 70mm |
| Max. Crimping Force | 1750KN |
| Control | SIEMENS PLC |
| Motor Power | 3kw/4kw |
| Standard Voltage | 110V~480V |
| Noise Level | 60dB(A) |
| Weight | 225kg |
| Size | 650*500*700mm |
