Description
Feature of 3inch hydraulic hose crimper
Duplex conical surface, large crimping force
More convenient for users with the transitional die set.
New material for die base, to ensure it’s the long service life

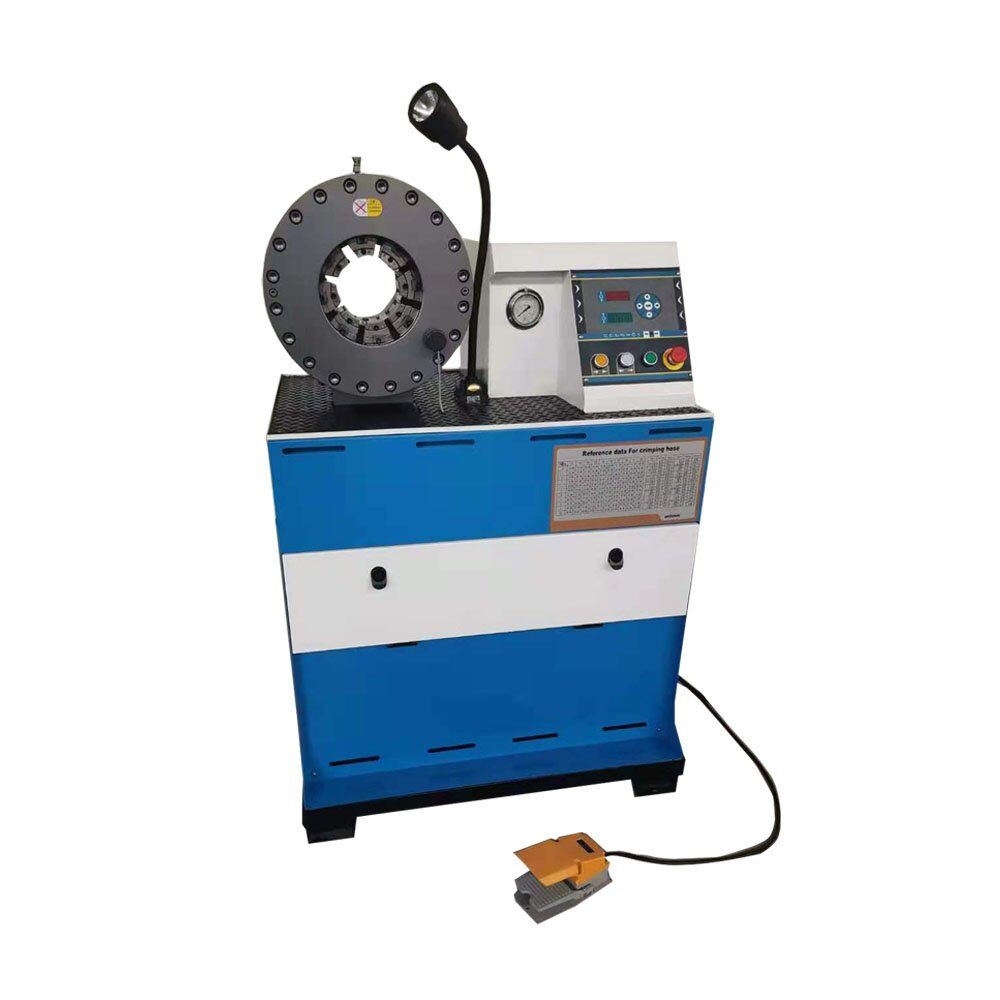

This 3inch hydraulic hose crimping machine is perfect for service crimping in the hardest environments all around the world. The traditional strong design is ideal for extreme working conditions for example in mines or tropical sites.
| Crimping Range | 1/8" to 3" |
|---|---|
| Max. Hydraulic Hose | 3" 4SP |
| Opening Without Dies | 168mm |
| System Pressure | 31.5Mpa |
| Motor Power | 4kw |
| Standard Voltage | 110V~480V |
| Control | Button or computer |
| Weight | 395KG |
| Dimension | 80*63.5*140cm |
Feature of 3inch hydraulic hose crimper
Duplex conical surface, large crimping force
More convenient for users with the transitional die set.
New material for die base, to ensure it’s the long service life
Feature of 3inch hydraulic hose crimper
Duplex conical surface, large crimping force
More convenient for users with the transitional die set.
New material for die base, to ensure it’s the long service life
| Crimping Range | 1/8" to 3" |
|---|---|
| Max. Hydraulic Hose | 3" 4SP |
| Opening Without Dies | 168mm |
| System Pressure | 31.5Mpa |
| Motor Power | 4kw |
| Standard Voltage | 110V~480V |
| Control | Button or computer |
| Weight | 395KG |
| Dimension | 80*63.5*140cm |
