Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 20542C-xx-xx.

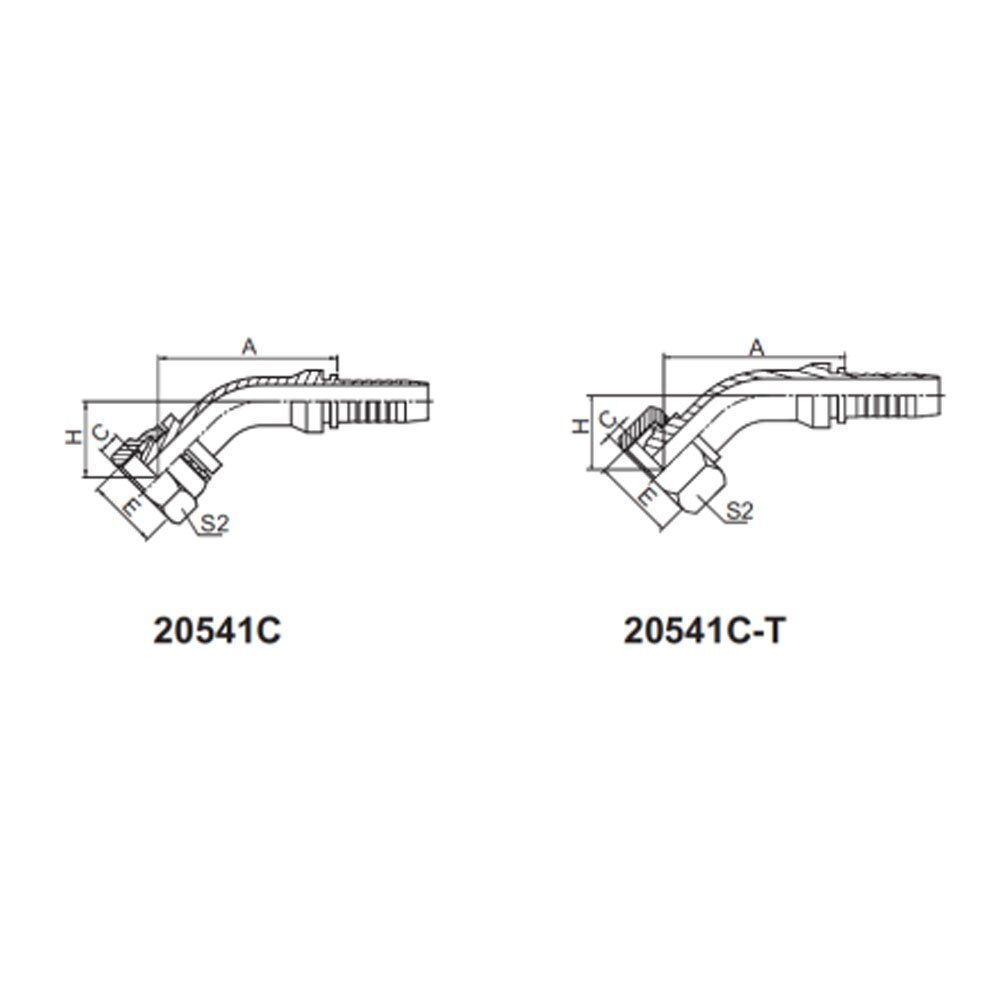

45° METRIC FEMALE 24°MULTISEAL H.T. DIN 3868
| PART NO. | THREAD | HOSE BORE | TUBE O.D | A | C | H | S2 | |
| DN | DASH | |||||||
| 20541C-16-04 | M16X1.5 | 6 | 04 | 8 | 44.8 | 3 | 22.7 | 19 |
| 20541C-18-04T | M18X1.5 | 6 | 04 | 10 | 43.7 | 3 | 21.6 | 22 |
| 20541C-20-06T | M20X1.5 | 10 | 06 | 12 | 48.9 | 4.5 | 24.6 | 24 |
| 20541C-24-08T | M24X1.5 | 12 | 08 | 16 | 61.4 | 2.5 | 26.5 | 30 |
