Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 20242-xx-xx.

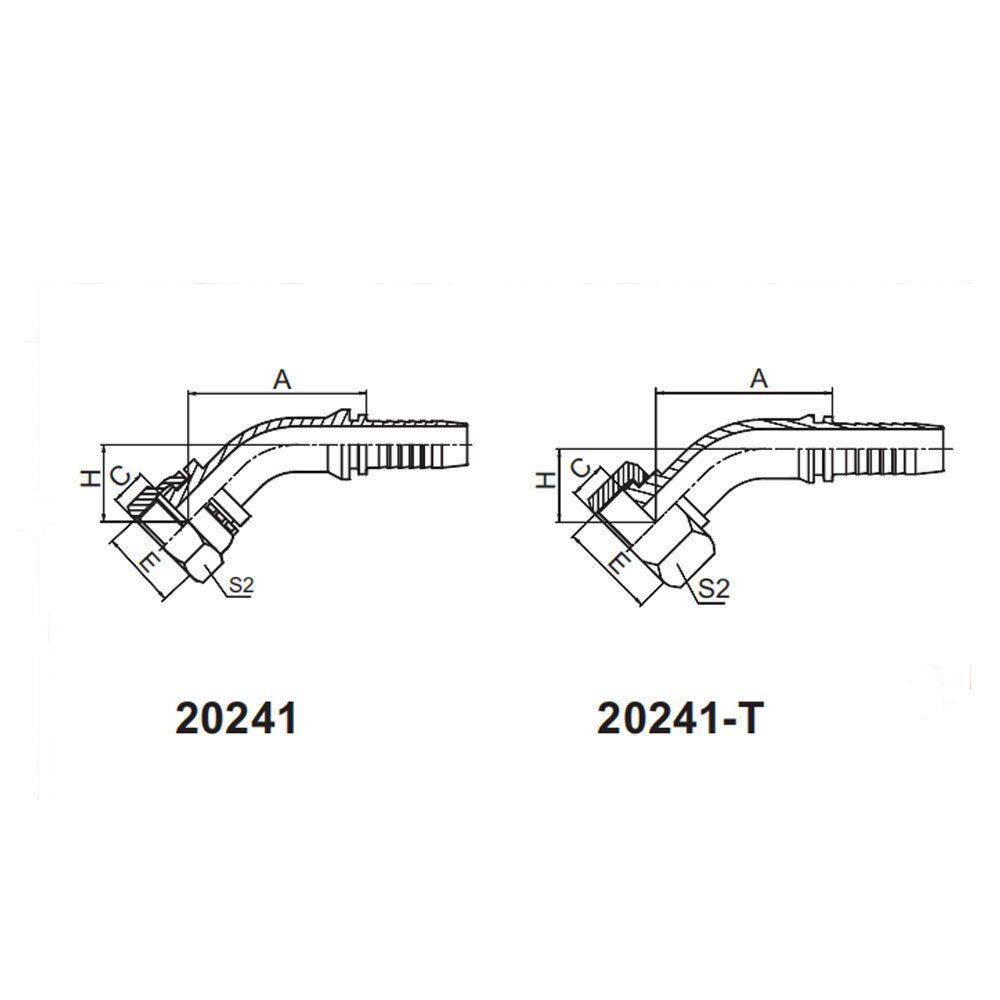

45°METRIC FEMALE FLAT SEAT REF. GB/T9065.3
| PART NO. | THREAD | HOSE BORE | A | C | H | S2 | |
| DN | DASH | ||||||
| 20241-14-04 | M14X1.5 | 6 | 04 | 40.5 | 8.5 | 18.5 | 19 |
| 20241-14-05 | M14X1.5 | 8 | 05 | 42.7 | 8.5 | 19.3 | 19 |
| 20241-16-05 | M16X1.5 | 8 | 05 | 44.4 | 8.5 | 20 | 22 |
| 20241-18-06 | M18X1.5 | 10 | 06 | 45.7 | 8 | 21.4 | 24 |
| 20241-22-08 | M22X1.5 | 12 | 08 | 58.9 | 10 | 24 | 27 |
| 20241-27-10T | M27X1.5 | 16 | 10 | 68.6 | 10 | 24.3 | 32 |
| 20241-30-12 | M30X1.5 | 20 | 12 | 78.1 | 11 | 30 | 36 |
| 20241-36-12T | M36X2 | 20 | 12 | 75 | 13 | 27.5 | 41 |
| 20241-36-14T | M36X2 | 22 | 14 | 77.3 | 13 | 27 | 41 |
| 20241-36-16 | M36X2 | 25 | 16 | 85.7 | 13 | 31.5 | 41 |
| 20241-39-16T | M39X2 | 25 | 16 | 83.9 | 13 | 29.7 | 46 |
| 20241-42-20T | M42X2 | 32 | 20 | 97.3 | 15 | 36.6 | 50 |
| 20241-45-20T | M45X2 | 32 | 20 | 94.5 | 15 | 33.8 | 55 |
| 20241-52-20T | M52X2 | 32 | 20 | 94.5 | 17 | 33.8 | 60 |
| 20241-52-24T | M52X2 | 40 | 24 | 108.5 | 17 | 37.7 | 60 |
| 20241-60-28T | M60X2 | 45 | 28 | 118.7 | 20 | 43.6 | 70 |
| 20241-64-32T | M64X2 | 50 | 32 | 127.8 | 23 | 45.6 | 75 |
