1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 20692-xx-xx.

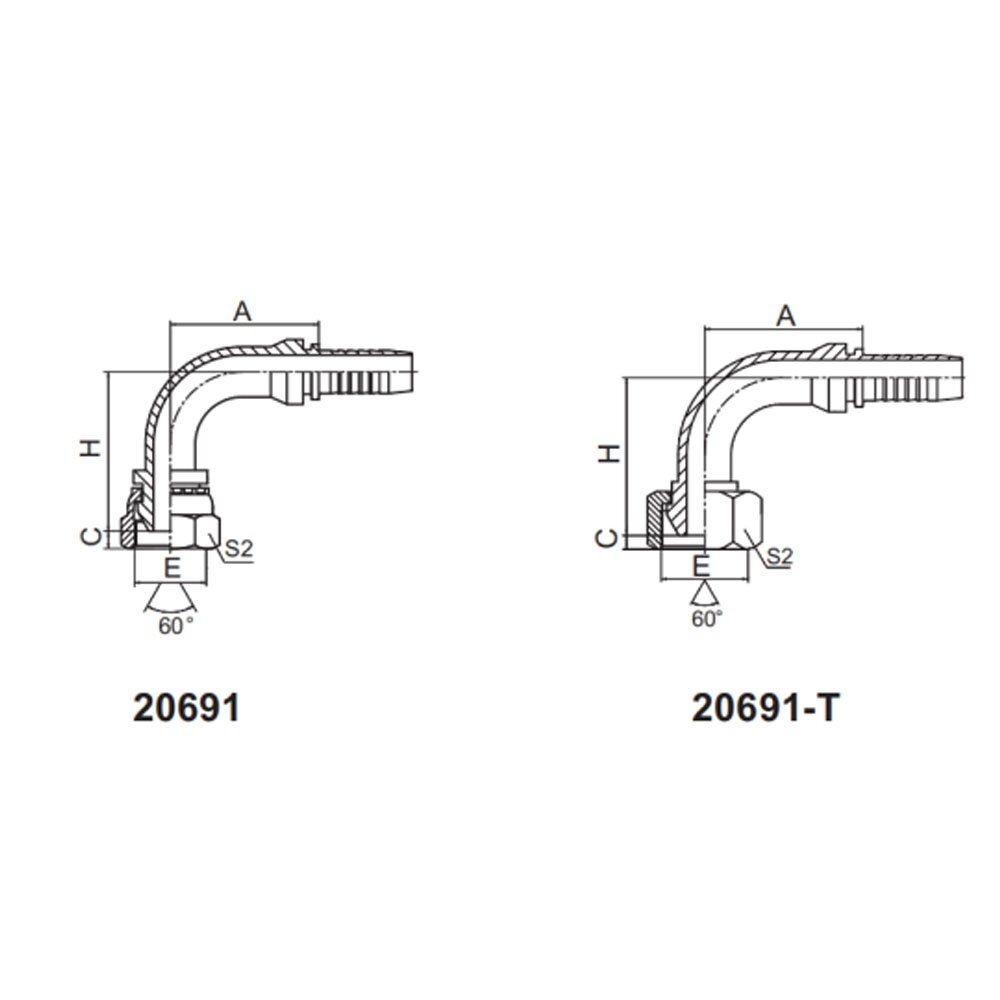

90° METRIC FEMALE 60° CONE
| PART NO. | THREAD | HOSE BORE | A | C | H | S2 | |
| DN | DASH | ||||||
| 20691-14-04 | M14X1.5 | 6 | 04 | 30 | 5.5 | 37 | 19 |
| 20691-16-05 | M16X1.5 | 8 | 05 | 33 | 5.5 | 40.5 | 22 |
| 20691-18-06 | M18X1.5 | 10 | 06 | 35.3 | 5.5 | 43.8 | 24 |
| 20691-22-08 | M22X1.5 | 12 | 08 | 41 | 6 | 52 | 27 |
| 20691-27-10DT | M27X1.5 | 16 | 10 | 56 | 6 | 55 | 32 |
| 20691-30-12D | M30X1.5 | 20 | 12 | 66.2 | 6 | 68.5 | 36 |
| 20691-36-16 | M36X2 | 25 | 16 | 78 | 6.5 | 76.5 | 41 |
| 20691-36-14T | M36X2 | 22 | 14 | 71.2 | 6.5 | 67.5 | 41 |
| 20691-39-16T | M39X2 | 25 | 16 | 76.7 | 6.5 | 74 | 46 |
| 20691-45-20T | M45X2 | 32 | 20 | 91.5 | 8.5 | 85 | 55 |
| 20691-52-24T | M52X2 | 40 | 24 | 109.4 | 10 | 99 | 60 |
