Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 22612D-xx-xx.

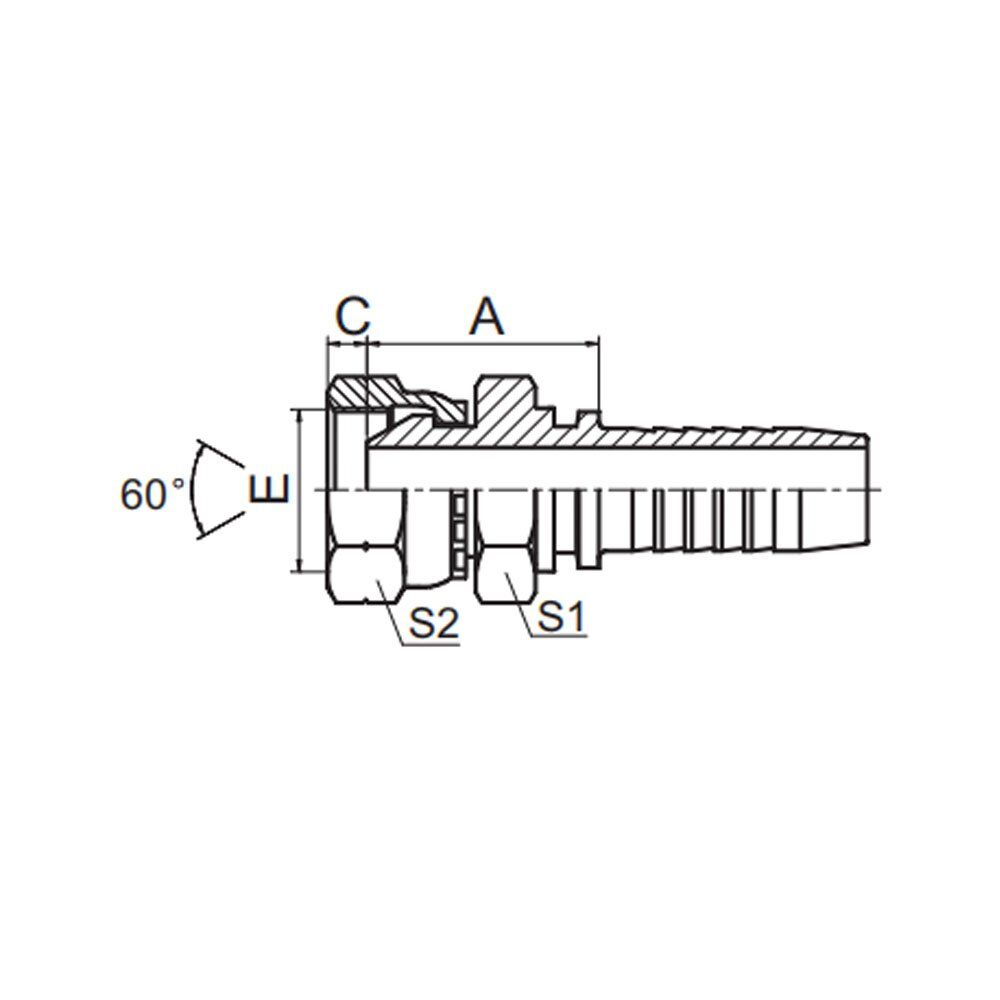

BSP FEMALE 60° CONE DOUBLE HEXAGON
| PART NO. | THREAD | HOSE BORE | A | C | S1 | S2 | |
| DN | DASH | ||||||
| 22611D-04-04 | G1/4″X19 | 6 | 04 | 23.5 | 5.5 | 19 | 19 |
| 22611D-06-06 | G3/8″X19 | 10 | 06 | 26.5 | 6.3 | 22 | 22 |
| 22611D-08-08 | G1/2″X14 | 12 | 08 | 31 | 7.5 | 27 | 27 |
| 22611D-10-08 | G5/8″X14 | 12 | 08 | 31 | 9.5 | 30 | 30 |
| 22611D-12-08 | G3/4″X14 | 12 | 08 | 31.5 | 10.9 | 32 | 32 |
| 22611D-12-12 | G3/4″X14 | 20 | 12 | 33.5 | 10.9 | 32 | 32 |
| 22611D-16-16 | G1″X11 | 25 | 16 | 33.5 | 11.7 | 41 | 41 |
| 22611D-20-20W | G1.1/4″X11 | 32 | 20 | 44 | 11 | 50 | 50 |
