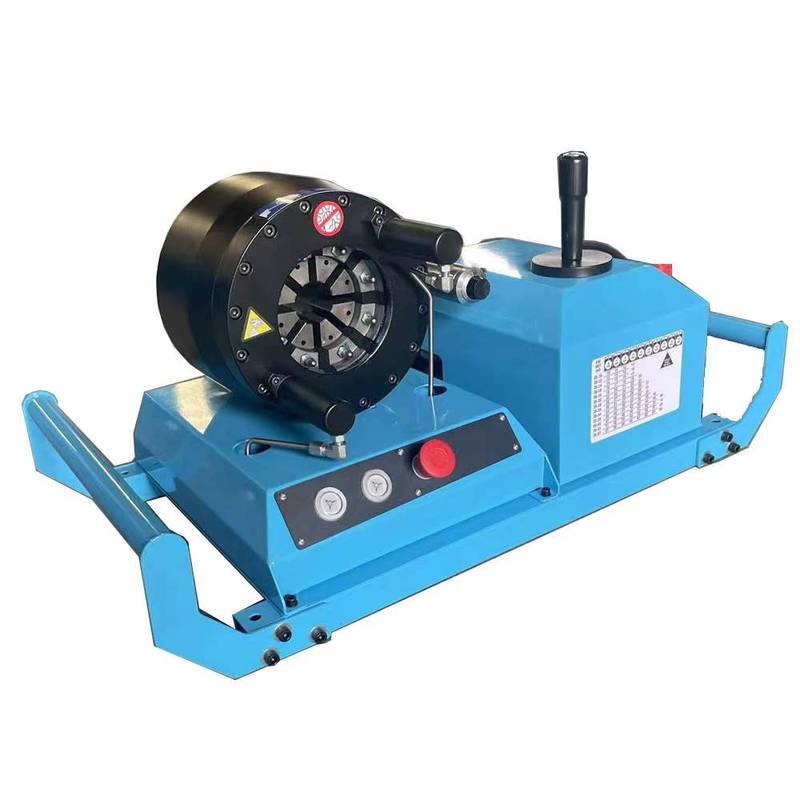

CYT-P32DC mobile hydraulic hose crimper is suitable for hydraulic repair mobile service. The machine is battery powered with 12V or 24V. It can crimp 1/4” to 2” 4 layers of hose. The compact design allows this crimper to be mounted in a service van.
| Crimping Range | 10mm to 87mm |
|---|---|
| Max. Hydraulic Hose | 2" 4SP |
| Max. Opening | +/-33mm |
| System Pressure | 31.5Mpa |
| Dies Quantity | 13sets |
| Max. Crimping Force | 2000KN |
| Motor Power | 4kw |
| Control | Automatic |
| Weight | 270KGS |
| Dimension | 900*600*450mm |
This hydraulic hose crimping machine inculdes 13sets of dies. Besides, the quick change dies tool and dies rack can be optional.
