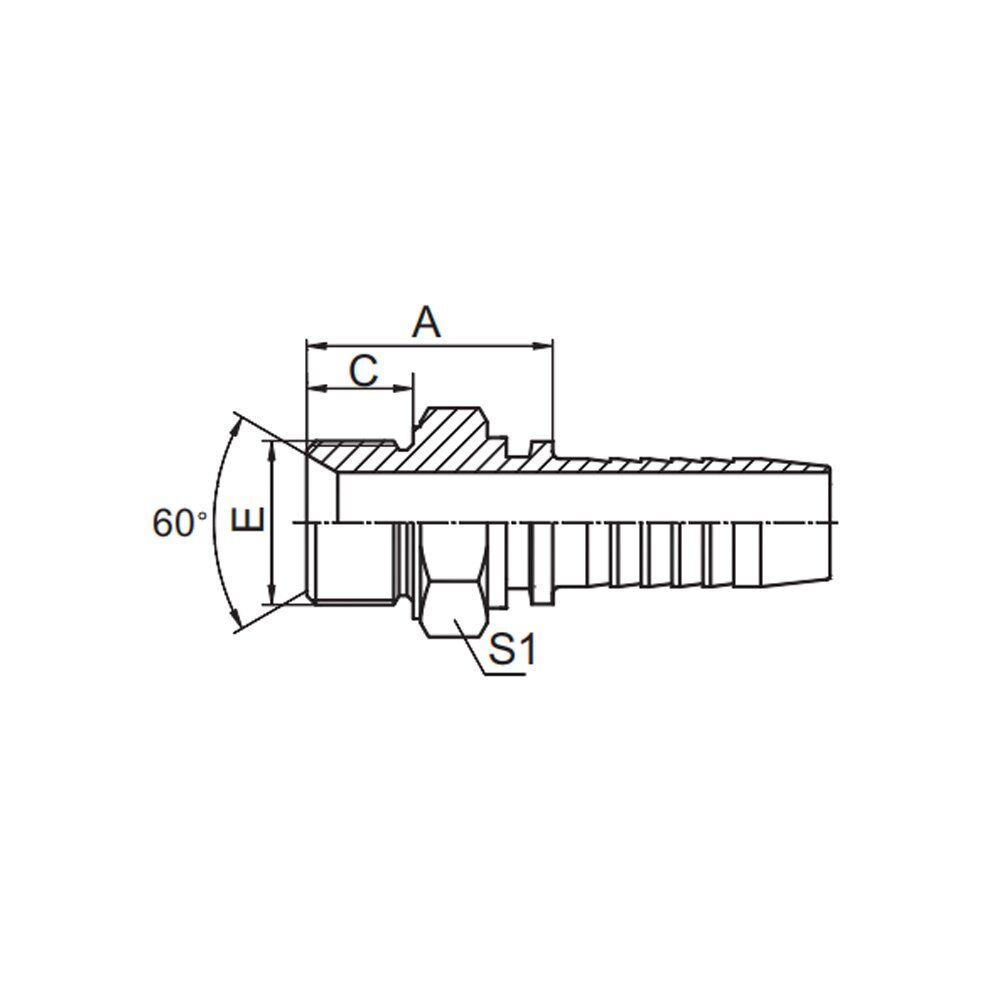

METRIC MALE 60° CONE SEAT
| PART NO. | THREAD | HOSE BORE | A | C | S1 | |
| DN | DASH | |||||
| 10611-14-04 | M14X1.5 | 6 | 04 | 23.5 | 11 | 19 |
| 10611–14-06 | M14X1.5 | 10 | 06 | 25 | 11 | 19 |
| 10611-16-04 | M16X1.5 | 6 | 04 | 27.5 | 12 | 22 |
| 10611-16-05 | M16X1.5 | 8 | 05 | 27.5 | 12 | 22 |
| 10611-18-06 | M18X1.5 | 10 | 06 | 29.5 | 12 | 24 |
| 10611-22-06 | M22X1.5 | 10 | 06 | 30.5 | 14 | 27 |
| 10611-22-08 | M22X1.5 | 12 | 08 | 31 | 14 | 27 |
| 10611-24-10 | M24X1.5 | 16 | 10 | 35 | 14 | 30 |
| 10611-26-10 | M26X1.5 | 16 | 10 | 35 | 16 | 32 |
| 10611-27-10D | M27X1.5 | 16 | 10 | 35 | 16 | 32 |
| 10611-27-10 | M27X2 | 16 | 10 | 37 | 18 | 32 |
| 10611-30-12D | M30X1.5 | 20 | 12 | 38 | 18 | 36 |
| 10611-30-12 | M30X2 | 20 | 12 | 38 | 18 | 36 |
| 10611-33-16 | M33X2 | 25 | 16 | 43 | 20 | 46 |
| 10611-42-20 | M42X2 | 32 | 20 | 46 | 20 | 50 |
| 10611-45-20 | M45X2 | 32 | 20 | 46 | 20 | 55 |
| 10611-48-24 | M48X2 | 40 | 24 | 46 | 20 | 55 |
| 10611-52-24 | M52X2 | 40 | 24 | 46 | 20 | 60 |
