Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 21692-xx-xx.

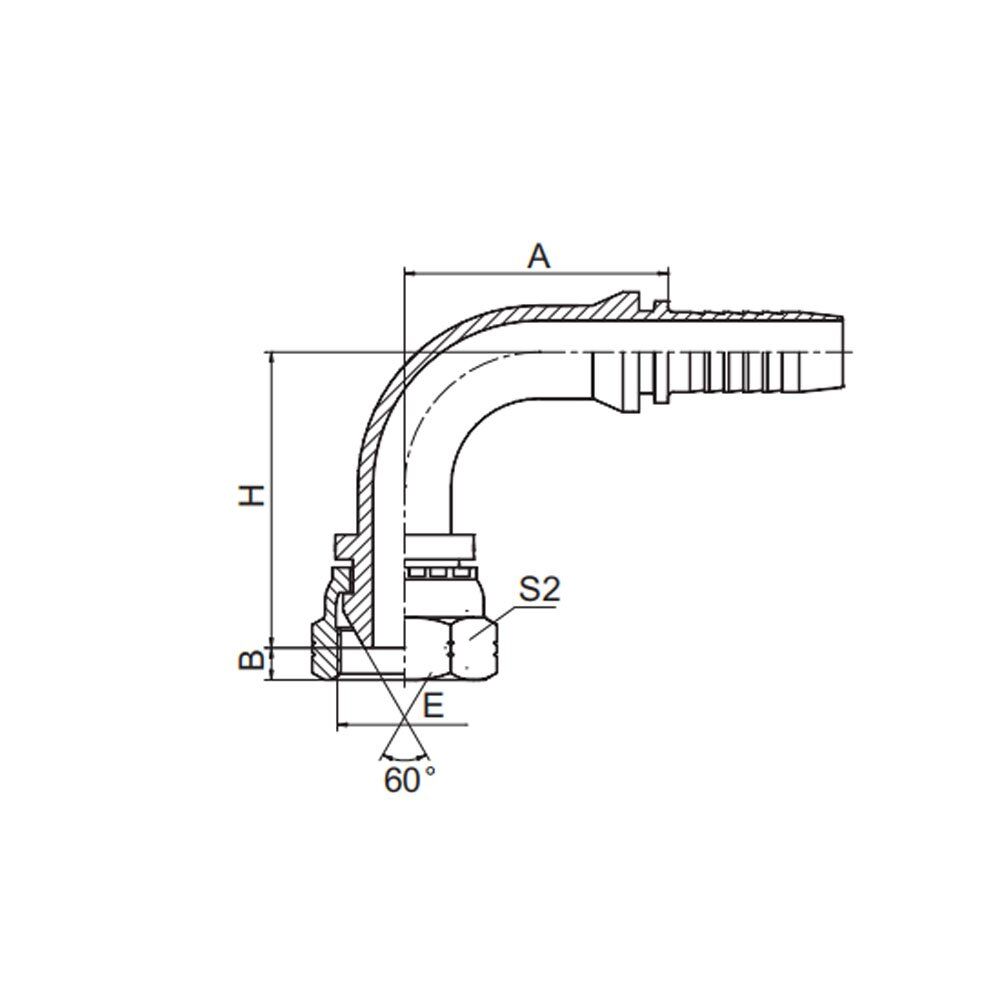

NPSM FEMALE 60° CONE SAE J514
| PART NO. | THREAD | HOSE BORE | A | B | S2 | S2 | |
| DN | DASH | ||||||
| 21691-04-04 | 1/4″X18 | 6 | 04 | 30 | 4.6 | 36.5 | 19 |
| 21691-06-04 | 3/8″X18 | 6 | 04 | 30 | 6 | 37.7 | 22 |
| 21691-06-05 | 3/8″X18 | 8 | 05 | 34 | 6 | 40.7 | 22 |
| 21691-06-06 | 3/8″X18 | 10 | 06 | 35.3 | 6 | 43 | 22 |
| 21691-08-08 | 1/2″X14 | 12 | 08 | 41 | 7.5 | 51 | 27 |
| 21691-12-10 | 3/4″X14 | 16 | 10 | 56.5 | 8.9 | 53.5 | 32 |
| 21691-12-12 | 3/4″X14 | 20 | 12 | 65.5 | 8.9 | 69.1 | 32 |
| 21691-16-12T | 1″X11.5 | 20 | 12 | 65.5 | 10.5 | 64.5 | 41 |
| 21691-16-16 | 1″X11.5 | 25 | 16 | 76.7 | 10.5 | 73.8 | 41 |
| 21691-20-20W | 1.1/4″X11.5 | 32 | 20 | 91.5 | 11.2 | 86 | 50 |
| 21691-24-20T | 1.1/2″X11.5 | 32 | 20 | 91.5 | 11.2 | 83.5 | 55 |
| 21691-24-24W | 1.1/2″X11.5 | 40 | 24 | 109.4 | 11.2 | 101.5 | 55 |
| 21691-32-32W | 2″X11.5 | 50 | 32 | 131.8 | 11.2 | 124.5 | 70 |
