Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 40012-xx-xx.

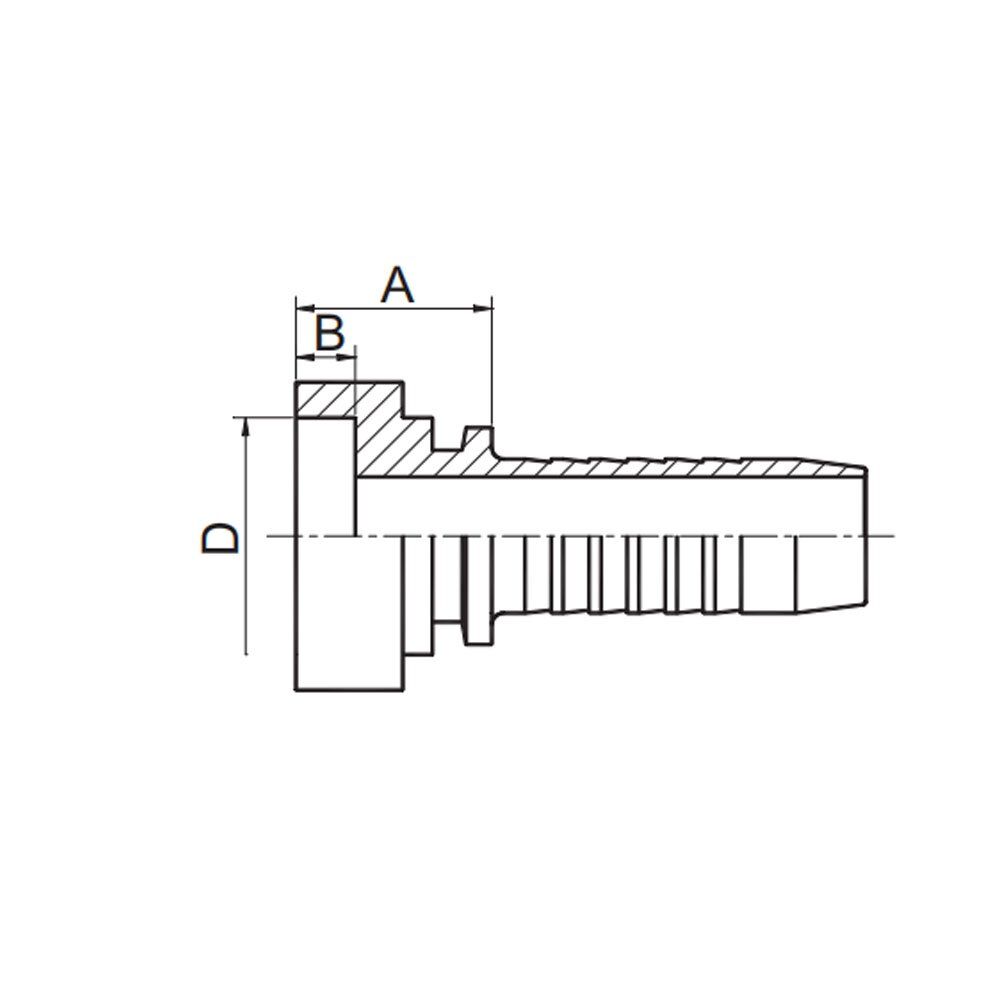

SOCKET WELD HOSE FITTING
| PART NO. | TUBE O.D. | HOSE BORE | A | B | |
| DN | DASH | ||||
| 40011-08-04 | 8 | 6 | 04 | 14.5 | 5 |
| 40011-09-04 | 9 | 6 | 04 | 14.5 | 5 |
| 40011-10-04 | 10 | 6 | 04 | 14.5 | 5 |
| 40011-10-05 | 10 | 8 | 05 | 12.5 | 5 |
| 40011-13-05 | 13 | 8 | 05 | 15 | 5 |
| 40011-15-06 | 15 | 10 | 06 | 15.5 | 5 |
| 40011-16-08 | 16 | 12 | 08 | 14 | 5 |
| 40011-20-08 | 20 | 12 | 08 | 16.5 | 5 |
| 40011-22-10 | 22 | 16 | 10 | 18 | 5 |
