Hydraulic ferrules (also known as hose sleeves) are vital for ensuring leak-free and secure connections in hydraulic hose assemblies. Whether you’re a hydraulic equipment importer, distributor, or OEM, choosing the right ferrule helps improve safety, reduce downtime, and enhance system performance in high-pressure applications.
In this guide, we’ll explore everything from ferrule types and materials to installation tips, real-world usage, and market-specific preferences.

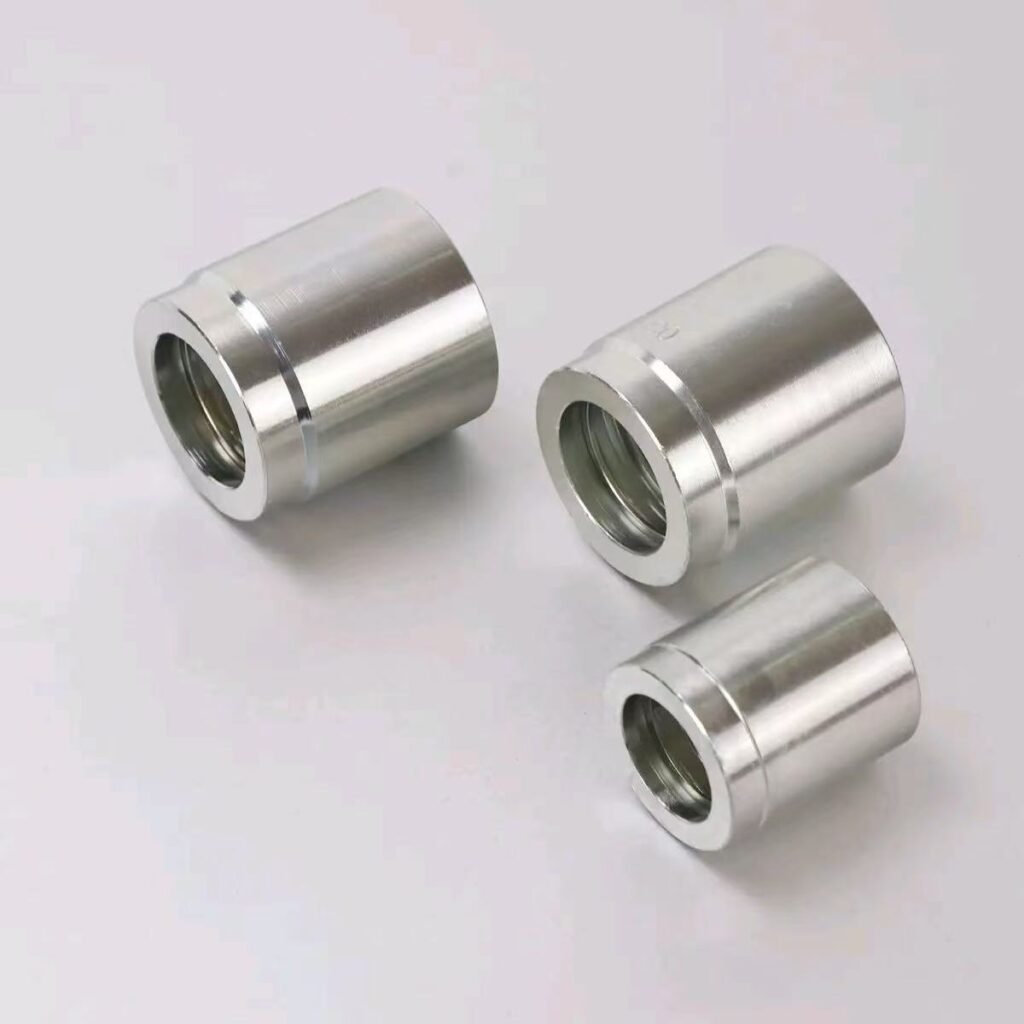

🔧 What Are Hydraulic Ferrules?
Ferrules are metal sleeves that compress around the hose and fitting, securing them together under high pressure. They’re designed to:
- Prevent fluid leaks
- Withstand vibration and pressure surges
- Extend the service life of the hose assembly
The ferrule must match the hose type, working pressure, and application environment to function properly.
Table of Contents of Hydraulic Ferrule
- Ferrule naming conventions
- Ferrule types & materials
- Detailed model breakdown
- Crimped vs swaged vs push-on
- One-piece vs two-piece vs interlock
- Skive vs non-skive
- Installation best practices & common mistakes
- Standards and performance testing
- Regional use cases & market preferences
- Maintenance, inspection & troubleshooting
- Cost vs benefit & material selection
- FAQs
1. Ferrule Naming Conventions
Ferrule part numbers aren’t random—they encode:
- Hose type compatibility (braided vs spiral)
- Skive vs non-skive design
- Intended pressure class (medium/heavy duty)
- Wall thickness & fit tolerance
Example models:
- 00110 – single-wire braided hose
- 00210 – double-wire braided hose
- 03310-double-wire braided hose and single-wire braided hose
- 00400, 00402, 00621 – spiral hoses (4- or 6-layer)
Knowing the code helps you match ferrule to system demands accurately.
2. Types & Materials of Hose Sleeves
Hose ferrules vary by construction and material:
- Steel ferrules – robust, high-pressure reliability
- Stainless steel – corrosion-resistant, ideal for harsh environments
- Brass – used in low-pressure, non-corrosive settings
- Composite – PTFE and specialty coatings for chemical compatibility
Ferrule types:
- Crimped – permanent, high-pressure stability
- Swaged – mechanically attached, requires specialty tools
- Push-on – quick-connect, best suited for low-pressure systems
Mechanism:
- Compression effect: nut/ferrule seal tightly around hose, assured under high pressure
3. Detailed Model Overview of Hose sleeves

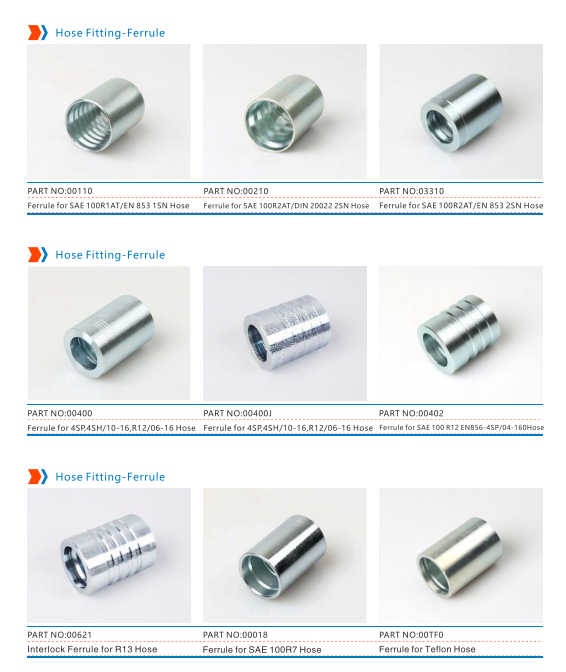

🧩 Ferrule For Braided Hoses (1SN, 2SN, 1ST, 2ST)

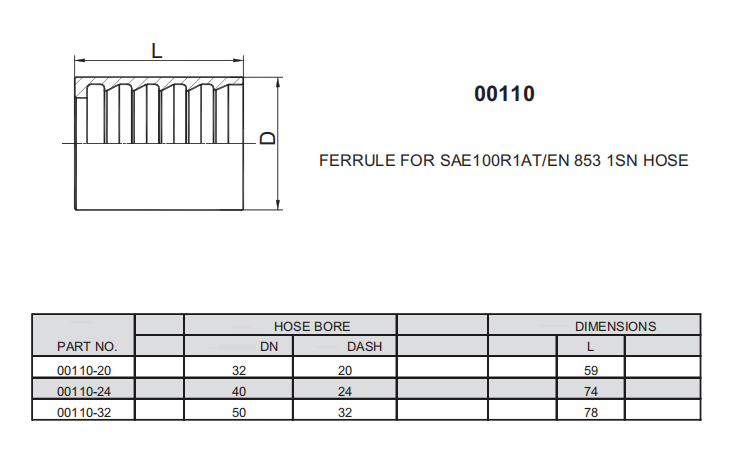

00110 – medium pressure, economical, widely used

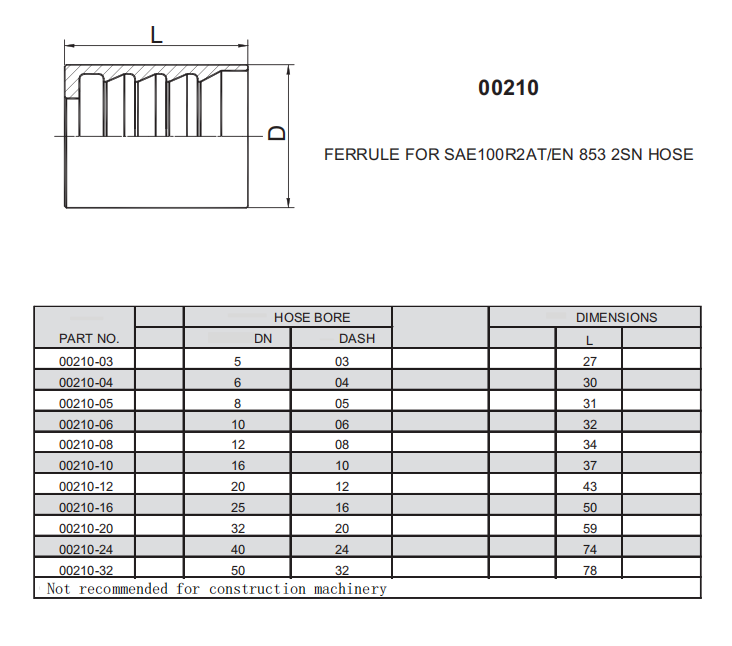

00210 – thicker walls, higher pressure applications

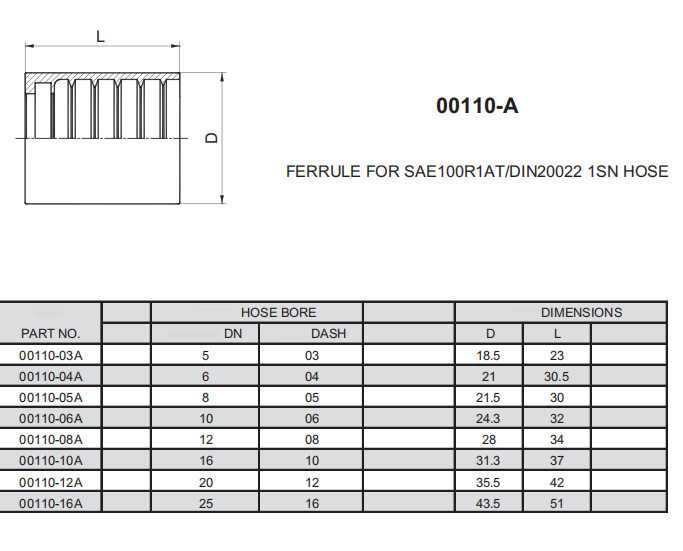

00110-A – enhanced structure, easier skiving/crimping

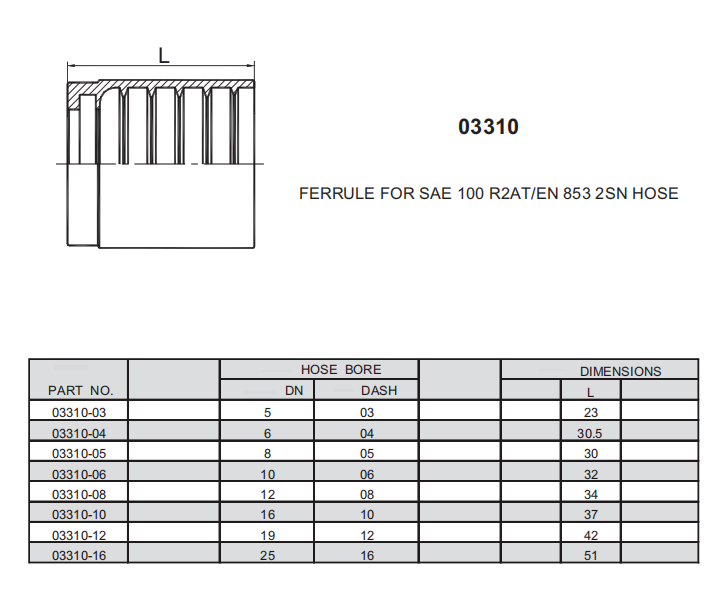

03310 – non-skive version, ideal for quick assembly
⚙️ Hydraulic Ferrule For Spiral Hoses (4SP, 4SH, R12, R13, R15)

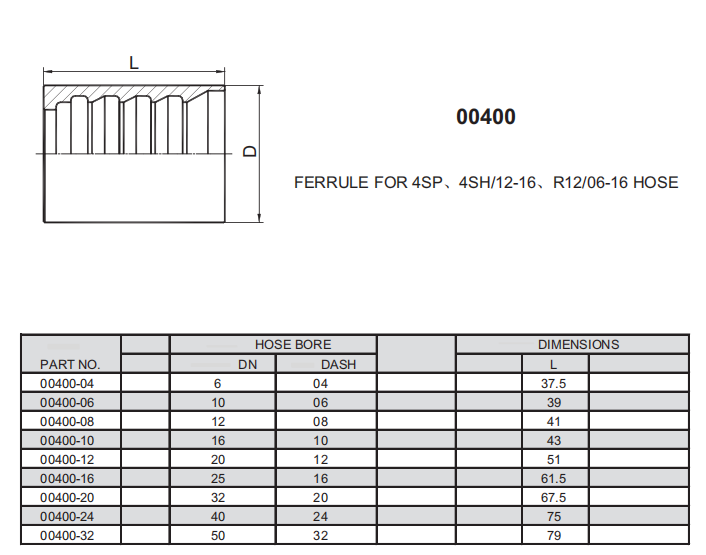

00400 – 4-wire spiral, heavy-duty assemblies

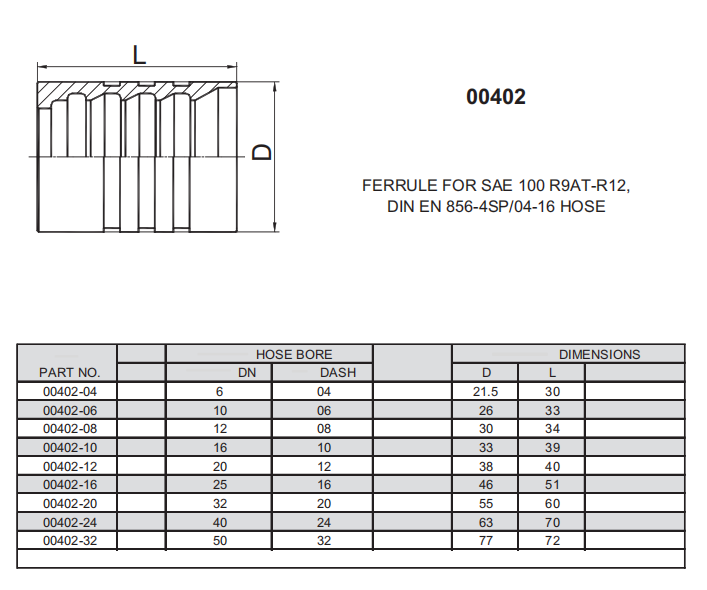

00402 – skive version, better for thick hoses (e.g., Tanzania preference)

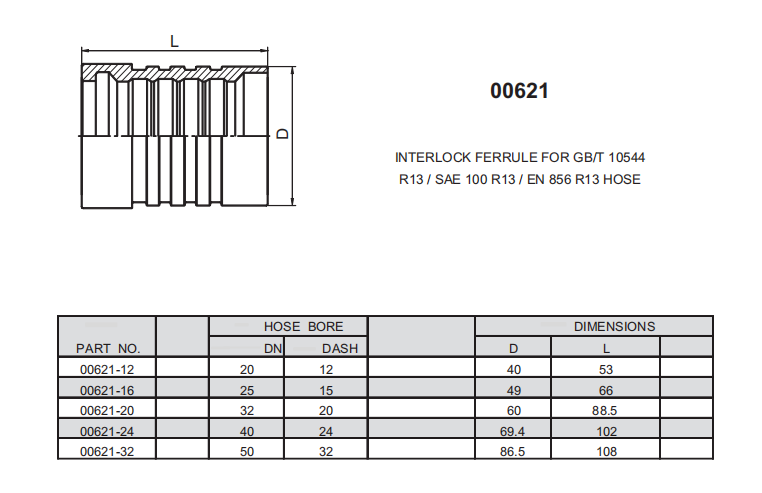

00621 – 6-layer spiral, interlock type for ultra-high pressure
Cost-effective practice: stock universal “hose tails” and multiple ferrules per hoses types
If you want to know more other types of ferrule, please kindly visit this link: https://cyt-hydraulic.com/product-category/ferrule/
4. Crimped vs Swaged vs Push-on
| Type | Pros | Cons | Use Cases |
|---|---|---|---|
| Crimped | Permanent, high strength | One-time use, needs hydraulic crimper | Heavy machinery, mining |
| Swaged | Precise attachment | Requires special tooling | OEM factory setups |
| Push-on | Quick, reusable | Low-pressure only | Maintenance, pneumatic lines |
Permanent crimps break tubing for safety and strength; swage provides a precise fit using mechanical pressure. Push-ons fit quick needs but aren’t for heavy-duty systems
5. One‑Piece vs Two‑Piece vs Interlock Ferrules
- One-piece: ferrule+fitting integrated, fast assembly but less flexible
- Two-piece: separates ferrule from fitting; great flexibility and easier part replacement
- Interlock: ferrule teeth engage hose spirals; ideal for ultra-high pressure (e.g. 00621)
6. Skive vs Non‑Skive Ferrules
- Skive: removes outer hose cover for wire grip—better seal, needed in R13/R15 assemblies
- Non-skive: quicker install, adequate for medium pressure
Tradeoff: durability vs speed .
7. Best Practices & Pitfalls in Installation
Key steps:
- Cut hose squarely, remove debris
- Fully insert hose into ferrule
- Use correct ferrule size—avoid leaks from misfit
- Crimp using manufacturer tolerances (+0.01–0.2 mm)
- Inspect visually and pressure-test
Common issues:
- Oversized ferrule → leaks
- Undersized → hose damage
- Over/under-crimp → failure
Reddit safety note: “always use the correct hose barb/ferrule… for safety”
8. Standards & Functional Testing
Ferrules must align with:
- SAE (e.g., 4SP/4SH specs)
- ISO, DIN, ASTM for threads, sizes, pressure ratings
Testing:
- Proof testing to 1.5× working pressure
- Burst testing, cyclic fatigue
- Visual and dimensional inspections
9. Regional Preferences & Market Insights
- Different markets prefer different ferrule types:
- Africa (e.g., Tanzania): 00402 ferrules (skive type) popular for 4SP hoses
- Middle East: Stainless steel ferrules often used in oil & gas
- Asia: High demand for non-skive ferrules due to fast-paced assembly
- 💡 Inventory tip: Stock a wide variety of ferrules with fewer hose tails to reduce cost.
10. Maintenance, Inspections & Troubleshooting
*Inspect ferrules annually for corrosion, cracks, or wear
*Always depressurize system before inspection
*Replace ferrule + hose if signs of damage
*Never reuse crimped ferrules
11. Cost vs Benefit & Material Selection
- Brass: low cost, indoor use
- Steel: medium duty
- Stainless: heavy-duty, corrosion resistance
Though stainless ferrules cost more, their lifetime value often outweighs initial price
Inventory lesson: stocking more ferrule sizes vs fewer hose tails reduces warehouse costs .
12. FAQs
Q1: Can I reuse ferrules?
Reusable versions exist but crimped ones should not be reused due to deformation
Q2: Best ferrule for R15 hoses?
Use interlock type like 00621—requires skiving and interlock fittings.
Q3: What if hose slips after crimp?
Likely undersize or under-crimp—recrimp with proper tooling .
Q4: Skive vs non-skive speed tradeoffs?
Non-skive saves prep time but may not hold at ultra-high pressures.
Q5: Swaged vs crimped?
Swaged is precise and field-suited; crimped is stronger and permanent .
✅ Summary & Next Steps
Choosing the right hydraulic ferrule isn’t just about part numbers—it’s about system safety, long-term performance, and compatibility. By understanding ferrule design, materials, installation, and regional trends, you can optimize your hydraulic systems and reduce failures.
