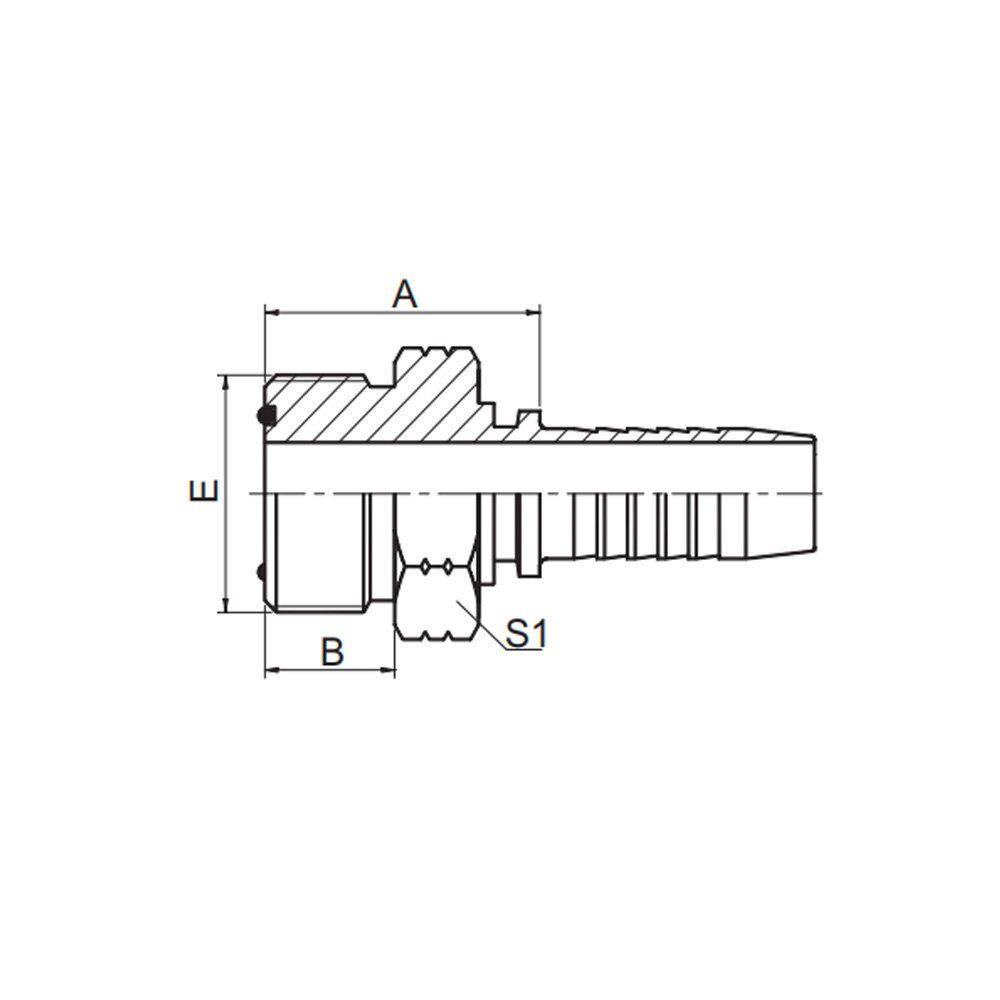

| PART NO. | THREAD | HOSE BORE | O RING | A | C | S1 | |
| DN | DASH | ||||||
| 14211-04-04 | 9/16″X18 | 6 | 04 | O011 | 22.5 | 9.8 | 17 |
| 14211-06-04 | 11/16″X16 | 6 | 04 | O012 | 24 | 11.2 | 19 |
| 14211-06-06 | 11/16″X16 | 10 | 06 | O012 | 24 | 11.2 | 19 |
| 14211-08-06 | 13/16″X16 | 10 | 06 | O014 | 27.5 | 12.8 | 22 |
| 14211-08-08 | 13/16″X16 | 12 | 08 | O014 | 28.5 | 12.8 | 22 |
| 14211-08-10 | 13/16″X16 | 16 | 10 | O014 | 28.5 | 12.8 | 22 |
| 14211-10-08 | 1″X14 | 12 | 08 | O016 | 32.5 | 15.5 | 27 |
| 14211-10-10 | 1″X14 | 16 | 10 | O016 | 33.5 | 15.5 | 27 |
| 14211-12-08 | 1.3/16″X12 | 12 | 08 | O018 | 35.5 | 17 | 32 |
| 14211-12-10 | 1.3/16″X12 | 16 | 10 | O018 | 36 | 17 | 32 |
| 14211-12-12 | 1.3/16″X12 | 20 | 12 | O018 | 36.5 | 17 | 32 |
| 14211-16-12 | 1.7/16″X12 | 20 | 12 | O021 | 37 | 17.5 | 38 |
| 14211-16-16 | 1.7/16″X12 | 25 | 16 | O021 | 38.5 | 17.5 | 38 |
| 14211-20-20 | 1.11/16″X12 | 32 | 20 | O025 | 41.5 | 17.5 | 46 |
| 14211-24-24 | 2″X12 | 40 | 24 | O029 | 46.5 | 17.5 | 55 |
