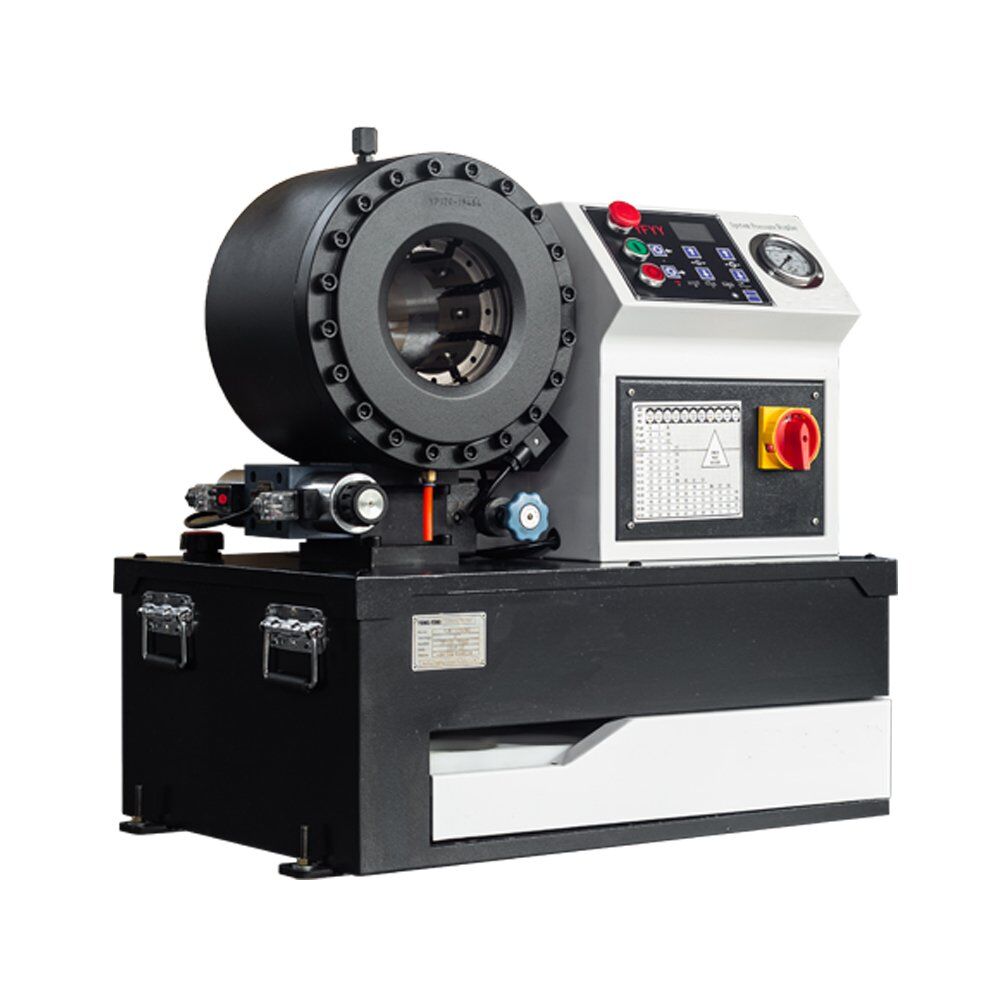

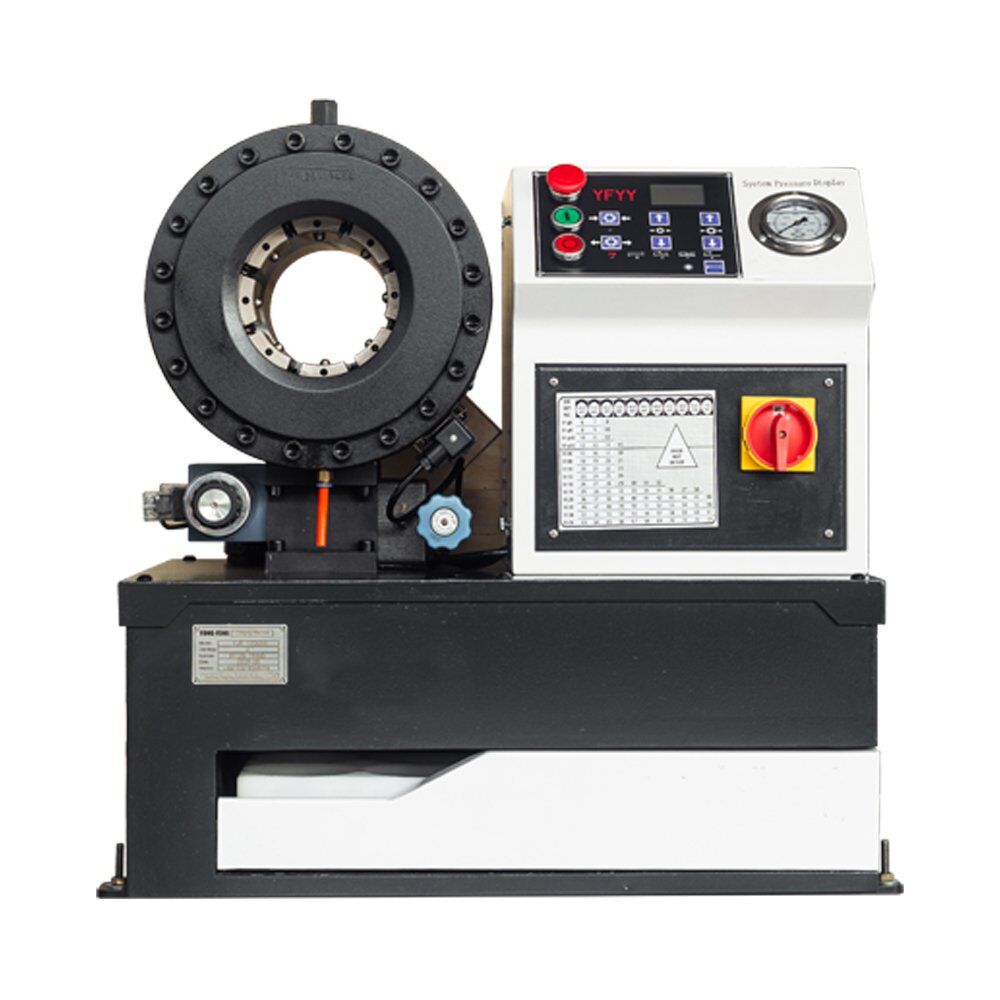

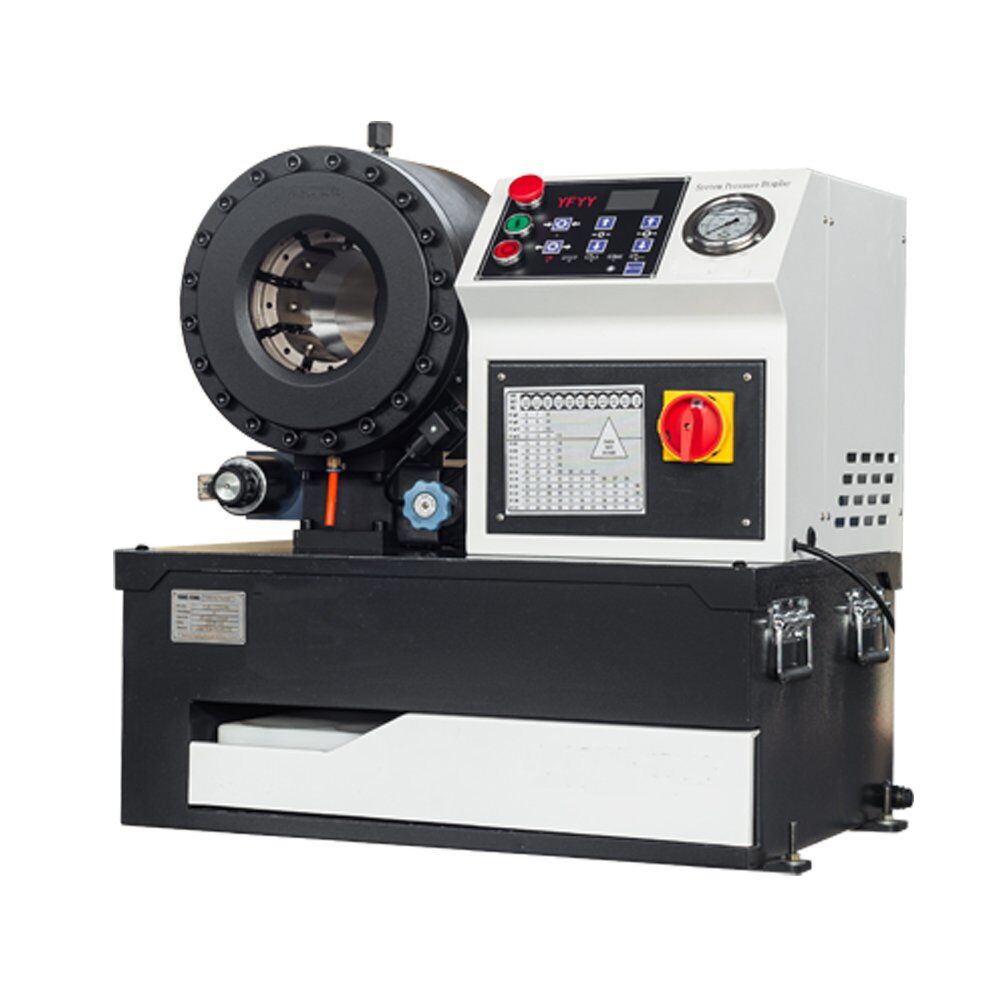

Y120 hose crimper is perfect for service crimping in the hardest environments all around the world. The traditional strong design is ideal for extreme working conditions for example in mines or tropical sites.
| Crimping Range | 3-80mm |
|---|---|
| Max. Hydraulic Hose | 2" 4SP |
| Max. Opening | +25mm |
| Opening Without Dies | 118mm |
| Accessible Diameter | 118mm |
| Master Die Length | 80mm |
| Max. Crimping Force | 2000KN |
| Motor Power | 4kw |
| Standard Voltage | 110V~480V |
| System Pressure | 31.5Mpa |
| Control | Digital |
| Weight | 248kg |
| Dimension | 650*500*700mm |
Y120 hose crimping machine is very easy to operate and offers affordable crimping in service operations. The compact design of Y120 means it is easily movable to anywhere.
Application of hydraulic crimping machine
The crimping force of the hydraulic hose crimping machine is 2000KN, with a crimping range of 6~73mm and 14 sets of the standard die. Y120 hose crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, fire sprinkler hoses, automobile brake cables, water hoses, air conditioner hoses, and bathroom hoses, etc.
Max. inner diameter
Industrial hoses: 2½”
Hoses with 2 braided wires: 2″
Hoses with 4 spiral wires: 2″
Low-pressure hoses φ6, φ8, φ10, φ12
