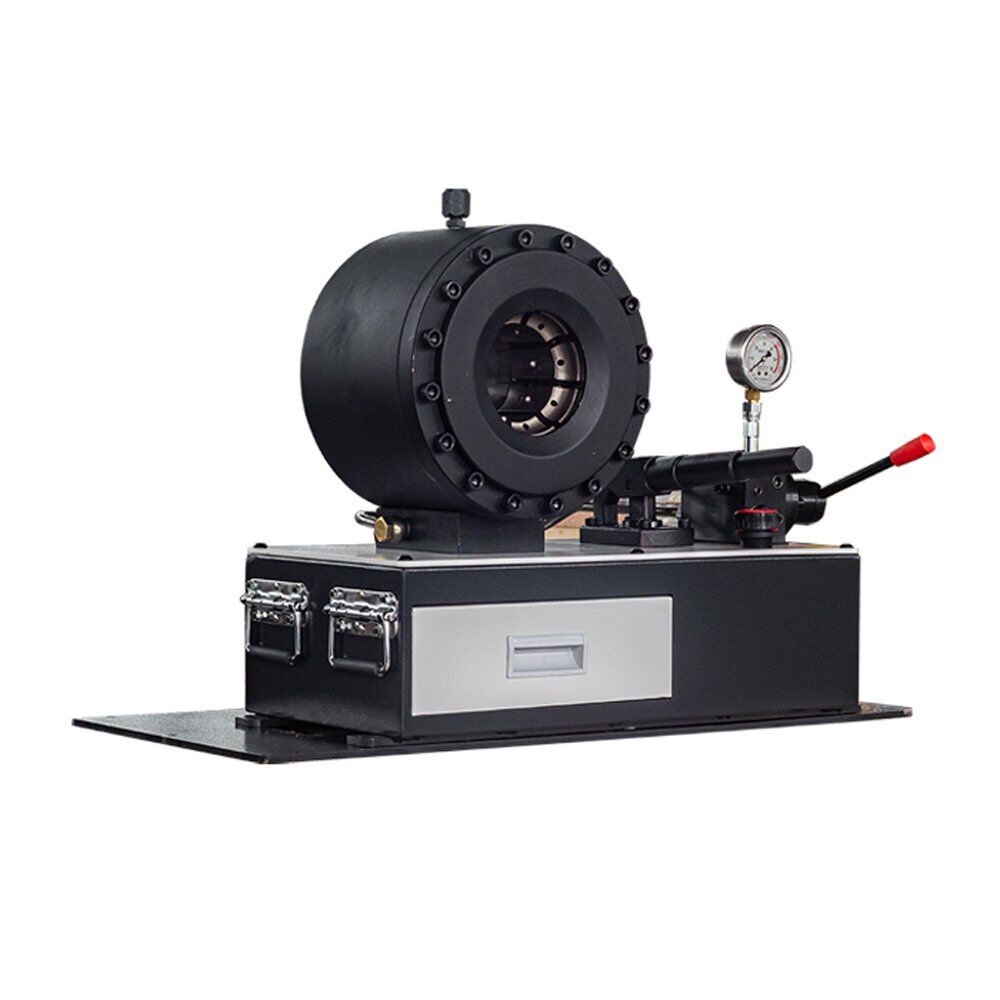

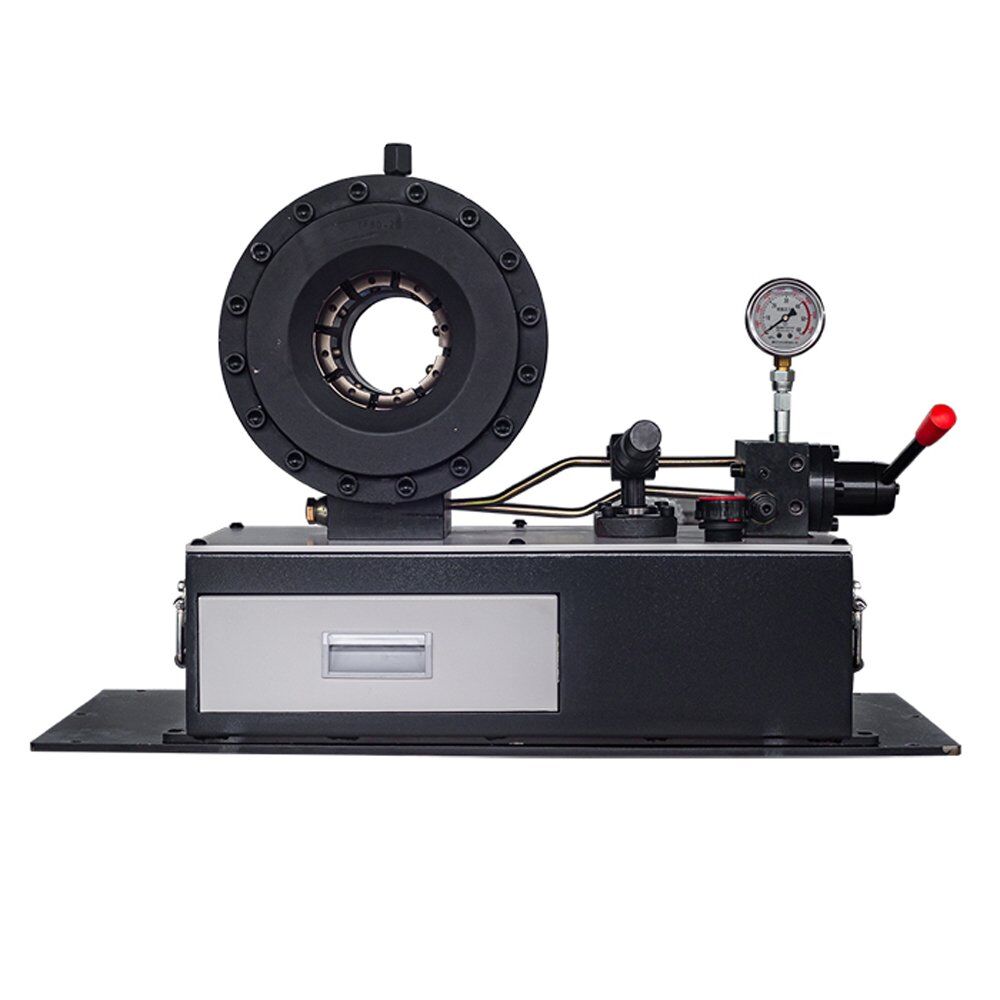

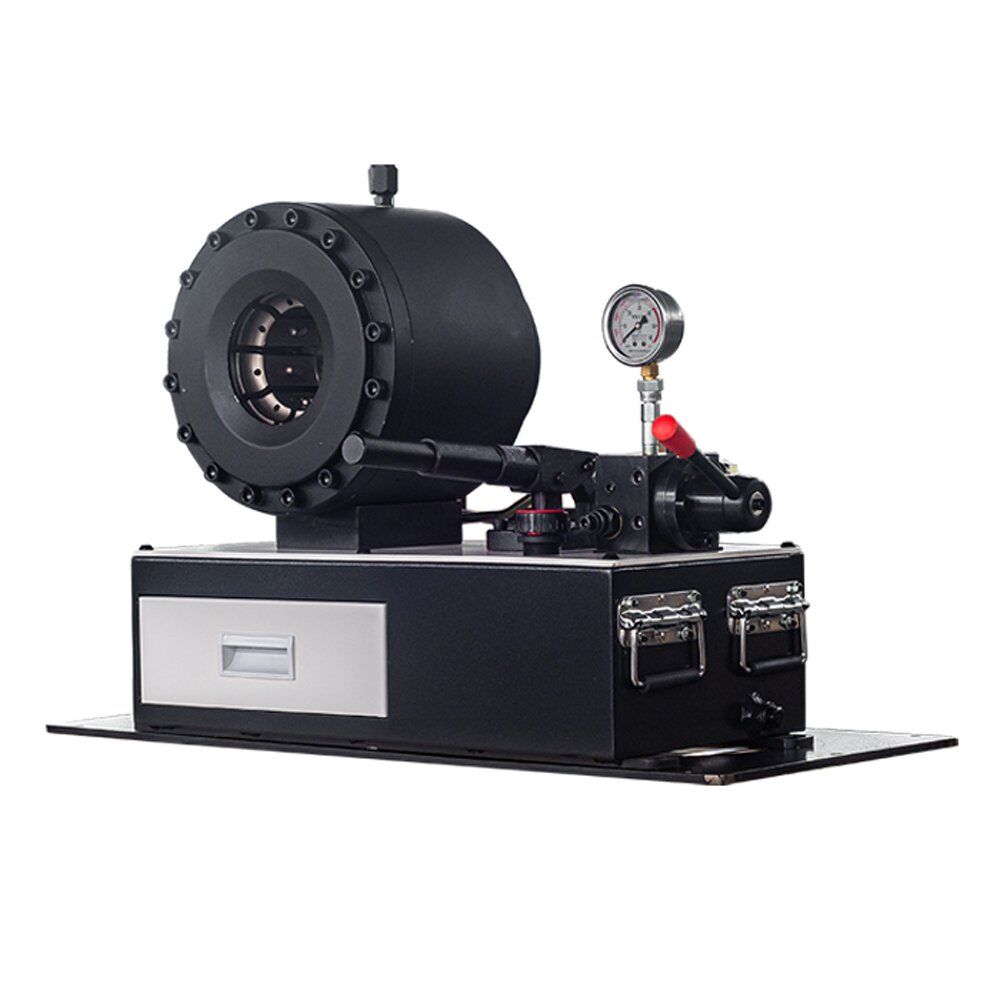

51S is a manually operated hydraulic crimping machine for repair workshop. This hand-operated movable crimper works even in places where electricity or compressed air are not available.
| Crimping Range | 3-80mm |
|---|---|
| Max. Hydraulic Hose | 2" 4SP |
| Max. Opening | +25mm |
| Opening Without Dies | 118mm |
| Accessible Diameter | 118mm |
| Master Die Length | 80mm |
| System Pressure | 31.5Mpa |
| Max. Crimping Force | 2000KN |
| Standard Voltage | None |
| Control | Manual |
| Weight | 150kg |
| Dimension | 550*280*600mm |
Y51S is simple in construction, easy to operate and highly reliable. Its ergonomic design, efficient, fast pump and impressively high crimping force makes it ideal crimper for field service.
Application
The crimp force of this manual crimping machine for the hydraulic hose is 2000KN, with a crimping range of 15~73mm and 10 sets of standard dies. This manual crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, hydraulic hoses, and water hoses and automobile airbags.
Max. inner diameter
Industrial hoses: 2½”
Hoses with 2 braided wires: 2″
Hoses with 4 spiral wires: 2″
