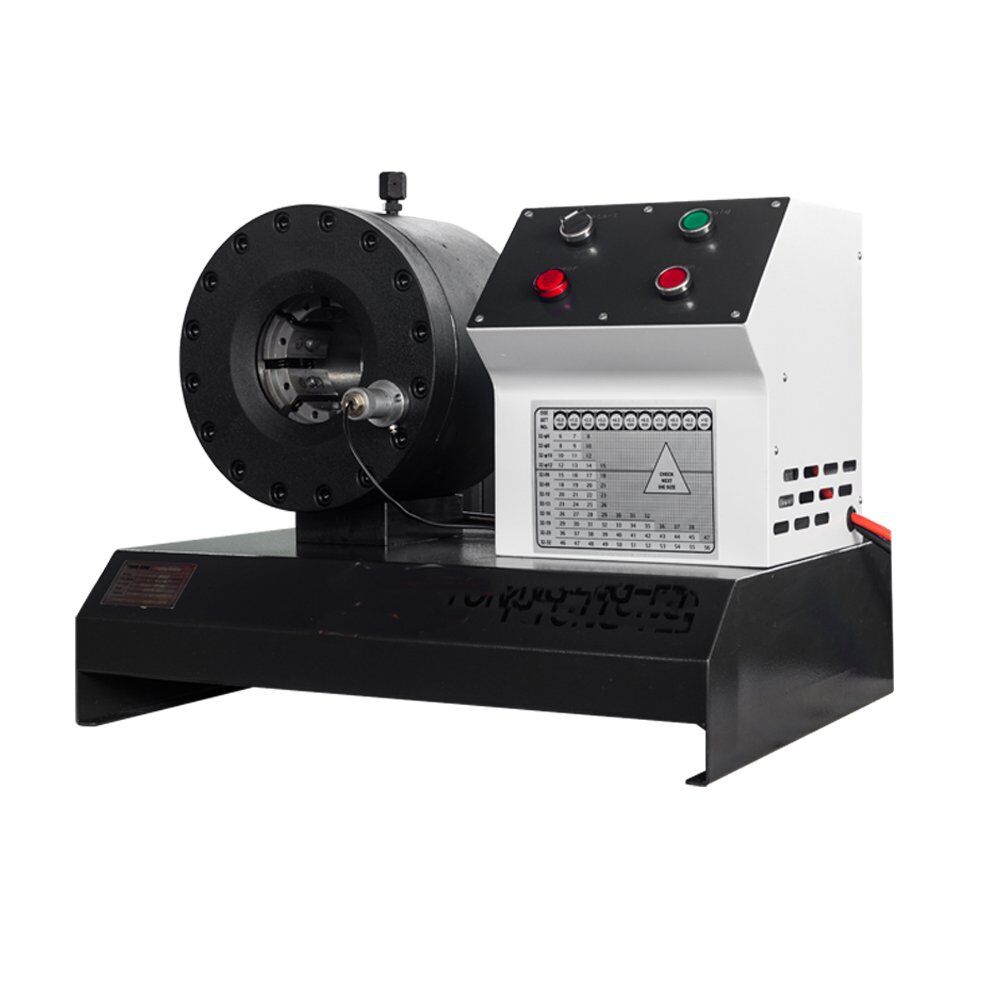

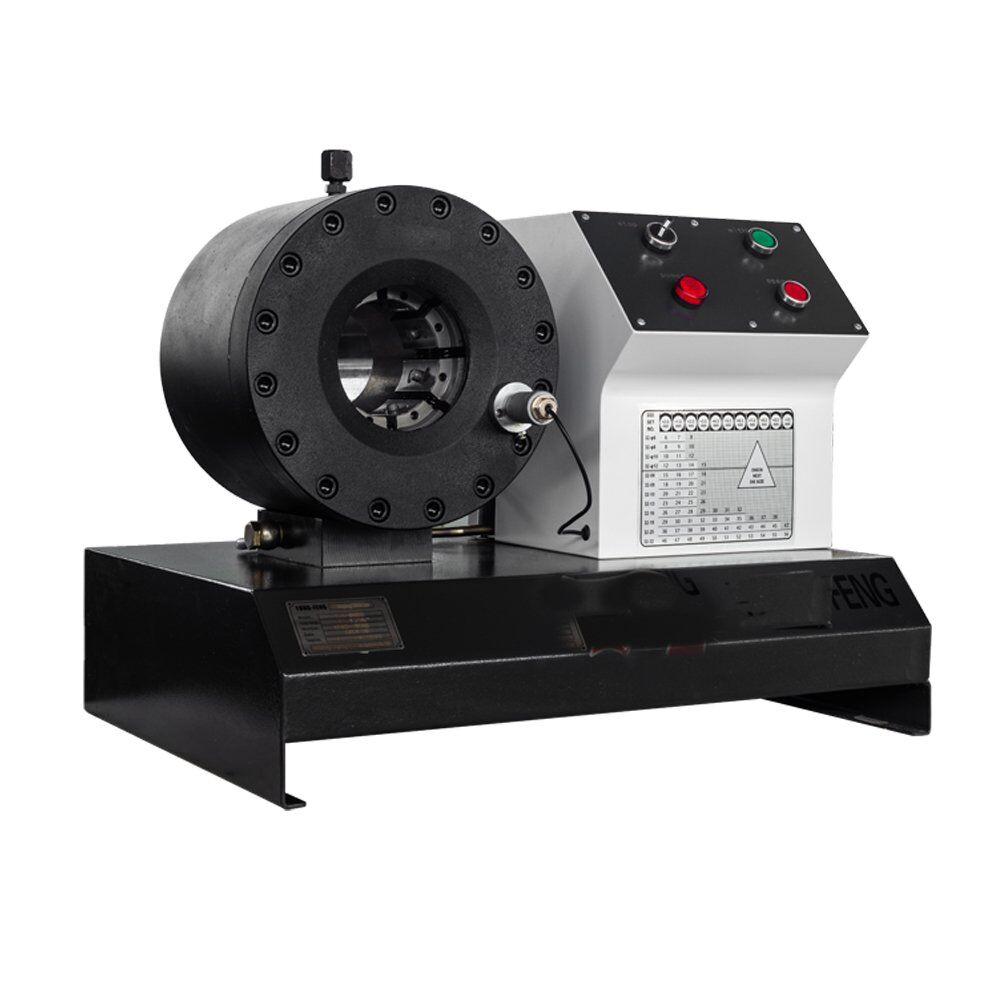

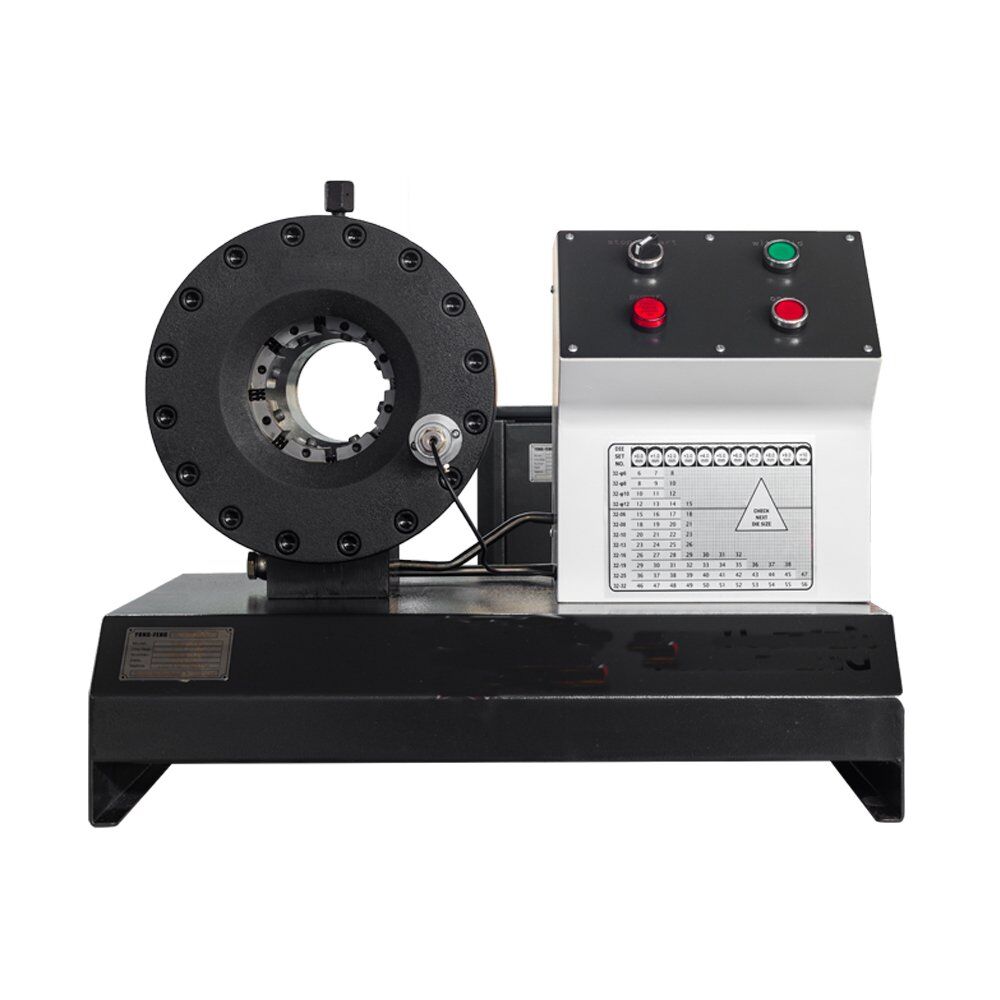

Y51V crimping machine is designed for field service when repairs must be made on-site, it is simple and compact in construction, easy to operate.
| Crimping Range | 3-80mm |
|---|---|
| Max. Hydraulic Hose | 2" 4SP |
| Max. Opening | +25mm |
| Opening Without Dies | 118mm |
| Accessible Diameter | 118mm |
| Master Die Length | 80mm |
| System Pressure | 31.5Mpa |
| Max. Crimping Force | 2000KN |
| Motor Power | 3kw |
| Control | Automatic |
| Weight | 165kg |
| Dimension | 600*460*540mm |
Y51V is battery powered with 12V or 24V, provides 2000KN crimping force in a highly compact, ergonomic design. Portability and usefulness for service vehicles in carious industries make them ideal for field service and emergency repairs.
Application of 2″ 12V/24V hose crimping machine
Y51V hydraulic hose crimper machine is powered by 12V/24V DC and is mainly used for outdoor mobile mechanical maintenance. The crimp force of vehicle hose crimper is 2000KN and the crimping range is 6-80mm. The hose crimper is equipped with 10 sets of standard dies. It is widely used for crimping high-pressure fuel pipes, hydraulic hoses, wire ropes, and automobile brake cables.
Max. inner diameter
Industrial hoses: 2″
Hoses with 2 braided wires: 1¼”
Hoses with 4 spiral wires: 1¼”
