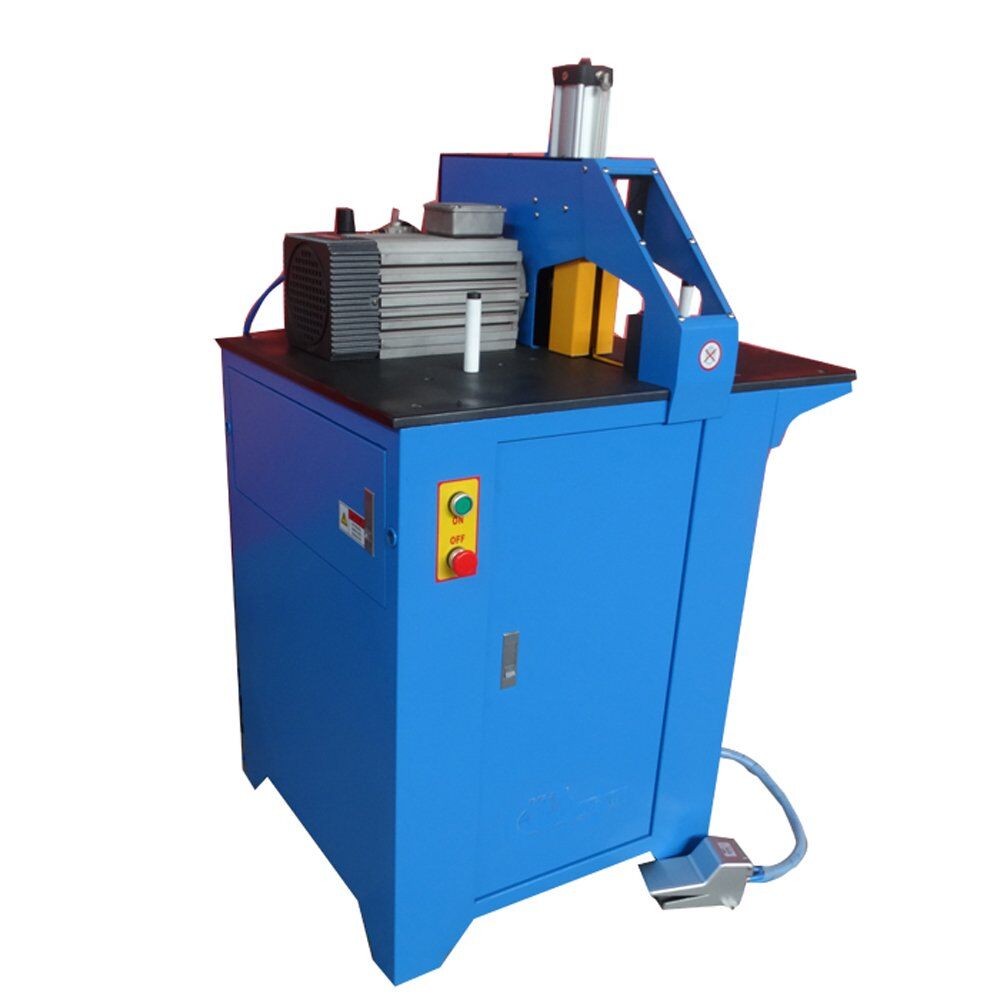

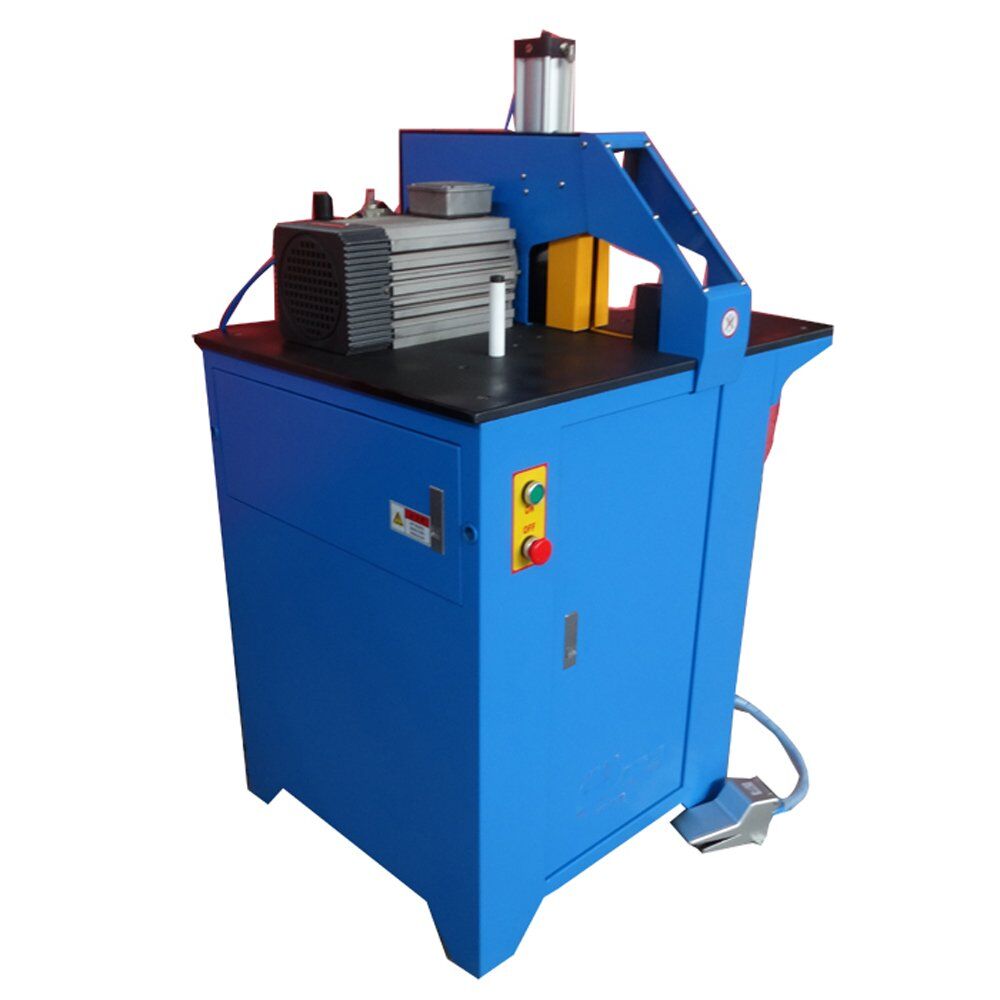

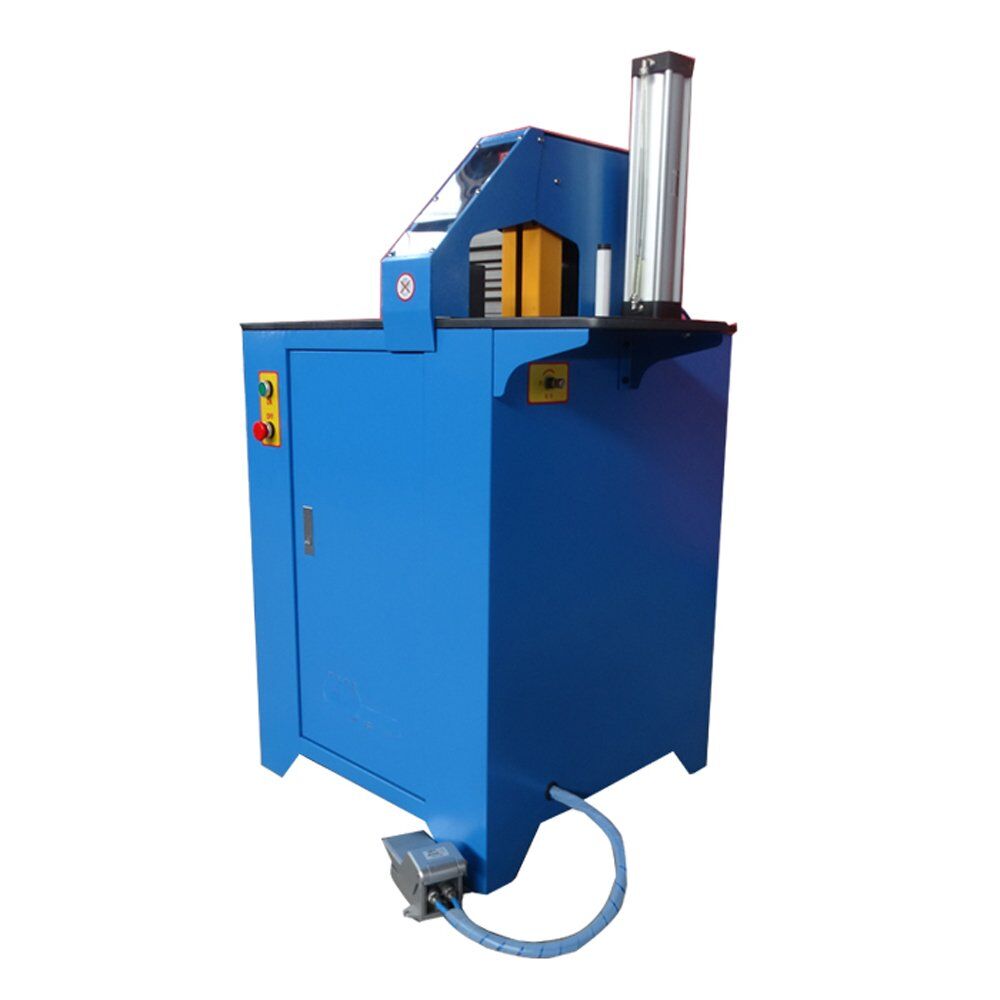

This pneumatic hose cutting machine is the hose crimping machine kit products, the structure of the machine is novel in design, it uses a new type of motor with an aluminum shell to drive the blade, greatly reduce the hose vibration in the cutting process, so it works more safe and reliable, with today’s most advanced special high-pressure hose blade (European imports blade), this machine has a long service life, cutting speed, no pungent odor, no debris, sand, and cutting hose with cooling and atomizing device, that reduces the wear but raise the blade using life, and equip with a dust collecting unit, clean and environment protection.
| Hose Capacity | 2" 4SP |
|---|---|
| Motor Power | 5.5kw |
| Standard Voltage | 380V |
| Speed of Blade | 2900rpm |
| Blade Diameter | 350mm |
| Control | Penumatic/Automatic |
| Weight | 163KG |
| Dimension | 810*635*1300mm |
Advantages Of Hose Cutting Machine
1)Imported cutting blade, high intension and long lifetime, and possessing the function of compensating wearing of cutting blade;
2)Hose cutting speed can be regulated;
3)Extracting fume and smoke, environmental protection, and healthy.
4)Special motor and cutting blade has good stability.
Advantages Of Hose Cutting Machine
1)Imported cutting blade, high intension and long lifetime, and possessing the function of compensating wearing of cutting blade;
2)Hose cutting speed can be regulated;
3)Extracting fume and smoke, environmental protection, and healthy.
4)Special motor and cutting blade has good stability.
| Hose Capacity | 2" 4SP |
|---|---|
| Motor Power | 5.5kw |
| Standard Voltage | 380V |
| Speed of Blade | 2900rpm |
| Blade Diameter | 350mm |
| Control | Penumatic/Automatic |
| Weight | 163KG |
| Dimension | 810*635*1300mm |
