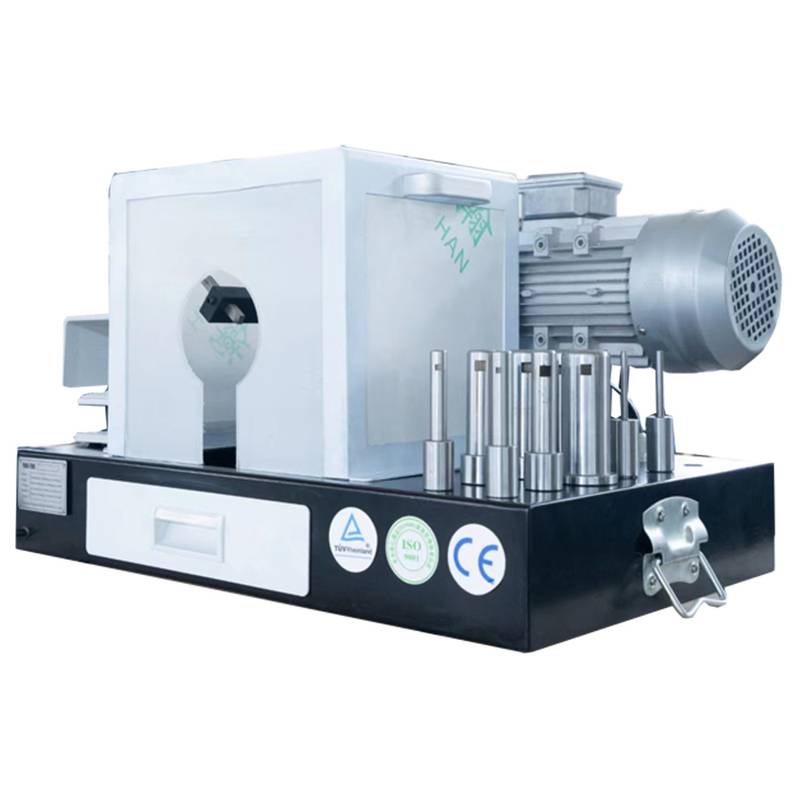

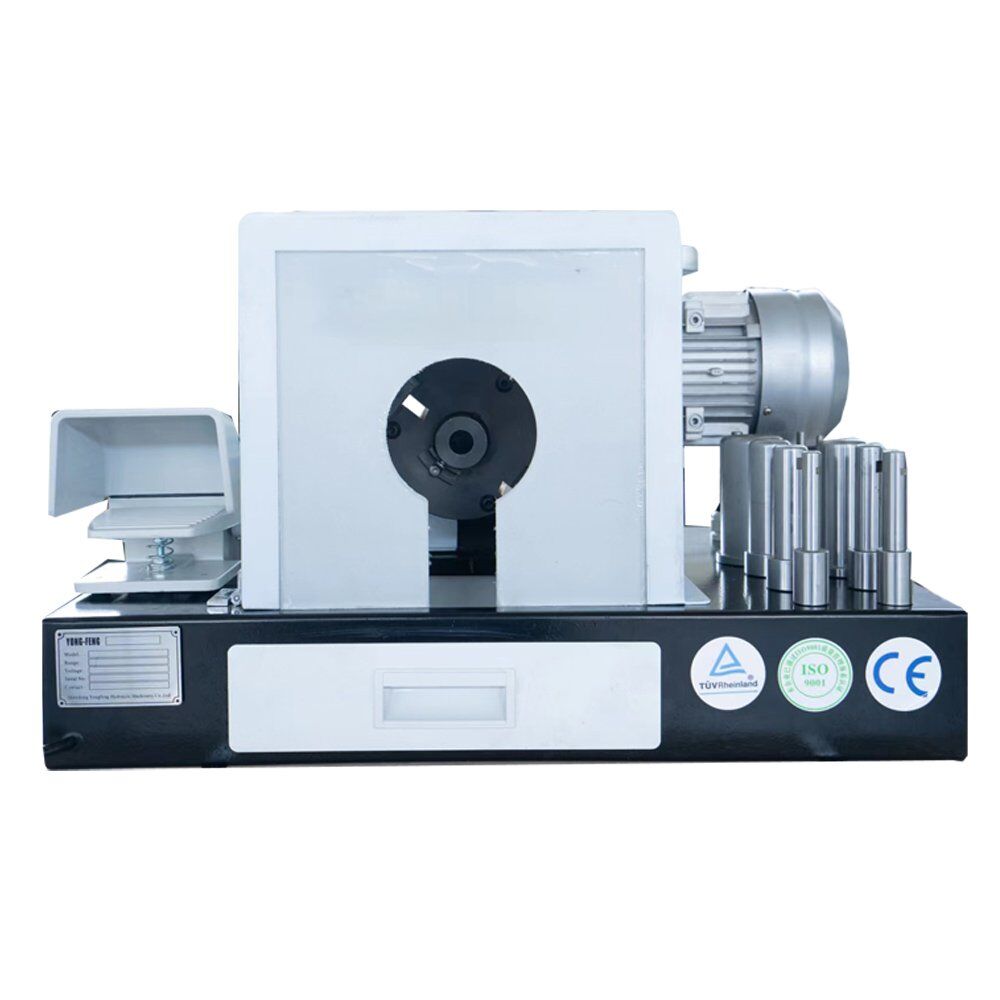

The S51 automatic hose skiving machine is mainly used to skive the inner and outer rubber layers of hydraulic hoses. The skiving is fast, neat, and nice. The skive range is 6~80mm. The voltage can be customized.
| Hose Capacity | 2" 4SP |
|---|---|
| Motor Power | 0.75kw |
| Standard Voltage | 110v-480v |
| Mandrel Tools | 10pcs |
| Speed of Tool Rotation | 100r/min |
| Control | Foot Operation |
| Noise Level | 60dB(A) |
| Weight | 45kg |
| Dimension | 600*400*370mm |
1) The skiving machine is highly automatic, with a neat, efficient skiving performance.
2) The CYT-S51 automatic hose skiving machine is equipped with a reducer to stabilize the speed.
3) For the sake of safety, the machine will automatically cease operation if the protective cover is removed.
