30° SAE FLANGE 3000PSI

30° SAE FLANGE 3000PSI

Category Flange Fitting Tag 87331

Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 87332-xx-xx.

Additional information

Product Video

Product Details:

30° SAE FLANGE 3000PSI

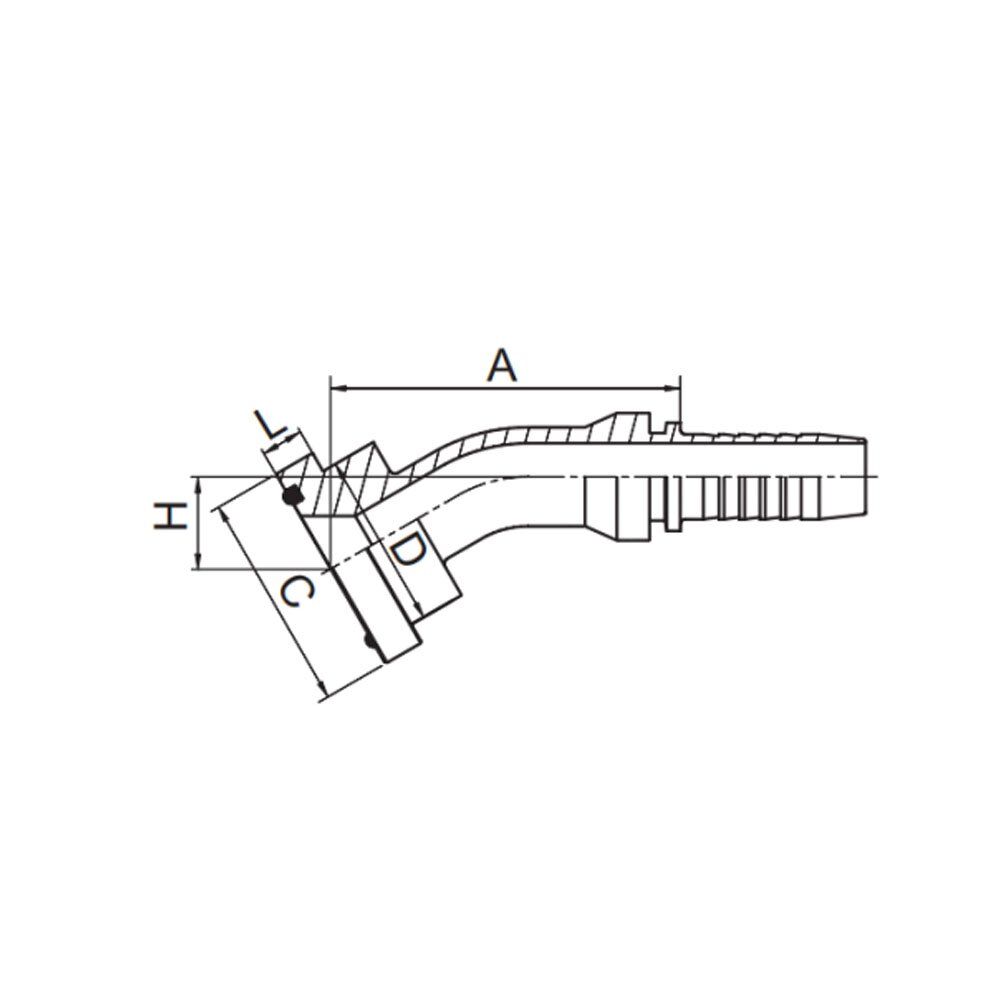

PART NO.	FLANGE SIZE	HOSE BORE		O RING	DIMENSIONS
PART NO.	FLANGE SIZE	DN	DASH	O RING	A	C	D	H	L
87331-08-08	1/2″	12	08	18.64X3.53		30.2	23.9	14.7	7
87331-12-12	3/4″	20	12	24.99X3.53		38.1	31.7	18.3	7
87331-16-12	1″	20	12	32.92X3.53		44.4	38	18.3	8.2
87331-16-16	1″	25	16	32.92X3.53		44.4	38	18.3	8.2
87331-20-16	1.1/4″	25	16	37.69X3.53		50.8	43.2	18.3	8.2
87331-20-20	1.1/4″	32	20	37.69X3.53		50.8	43.2	20.5	8.2
87331-24-20	1.1/2″	32	20	47.22X3.53		60.3	50.3	23	8.2
87331-24-24	1.1/2″	40	24	47.22X3.53		60.3	50.3	24.8	8.2
87331-32-32	2″	50	32	56.74X3.53		71.4	62.2	28.6	9.8

Description
Reviews (0)

Description

30° SAE FLANGE 3000PSI

PART NO.	FLANGE SIZE	HOSE BORE		O RING	DIMENSIONS
PART NO.	FLANGE SIZE	DN	DASH	O RING	A	C	D	H	L
87331-08-08	1/2″	12	08	18.64X3.53		30.2	23.9	14.7	7
87331-12-12	3/4″	20	12	24.99X3.53		38.1	31.7	18.3	7
87331-16-12	1″	20	12	32.92X3.53		44.4	38	18.3	8.2
87331-16-16	1″	25	16	32.92X3.53		44.4	38	18.3	8.2
87331-20-16	1.1/4″	25	16	37.69X3.53		50.8	43.2	18.3	8.2
87331-20-20	1.1/4″	32	20	37.69X3.53		50.8	43.2	20.5	8.2
87331-24-20	1.1/2″	32	20	47.22X3.53		60.3	50.3	23	8.2
87331-24-24	1.1/2″	40	24	47.22X3.53		60.3	50.3	24.8	8.2
87331-32-32	2″	50	32	56.74X3.53		71.4	62.2	28.6	9.8

Reviews

There are no reviews yet.

Be the first to review “30° SAE FLANGE 3000PSI”
