Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 22242-xx-xx.

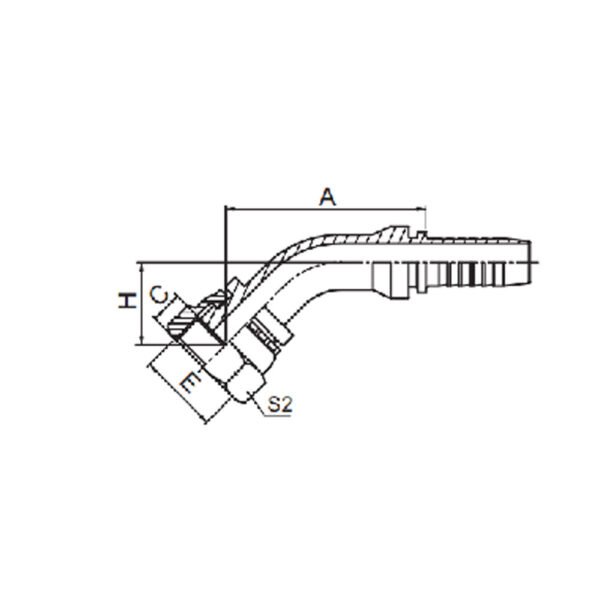

45° BSP FEMALE FLAT SEAT
| PART NO. | THREAD | HOSE BORE | A | C | H | S2 | |
| DN | DASH | ||||||
| 22241-04-04 | G1/4″X19 | 6 | 04 | 40.9 | 8 | 18.8 | 19 |
| 22241-06-06 | G3/8″X19 | 10 | 06 | 45.3 | 9 | 21 | 22 |
| 22241-08-08 | G1/2″X14 | 12 | 08 | 58.9 | 10.5 | 24 | 27 |
| 22241-12-12 | G3/4″X14 | 20 | 12 | 76.8 | 13.5 | 30 | 32 |
| 22241-16-16 | G1″X11 | 25 | 16 | 82.7 | 15.5 | 31.5 | 41 |
| 22241-20-20W | G1.1/4″X11 | 32 | 20 | 97.3 | 15.5 | 36.6 | 50 |
