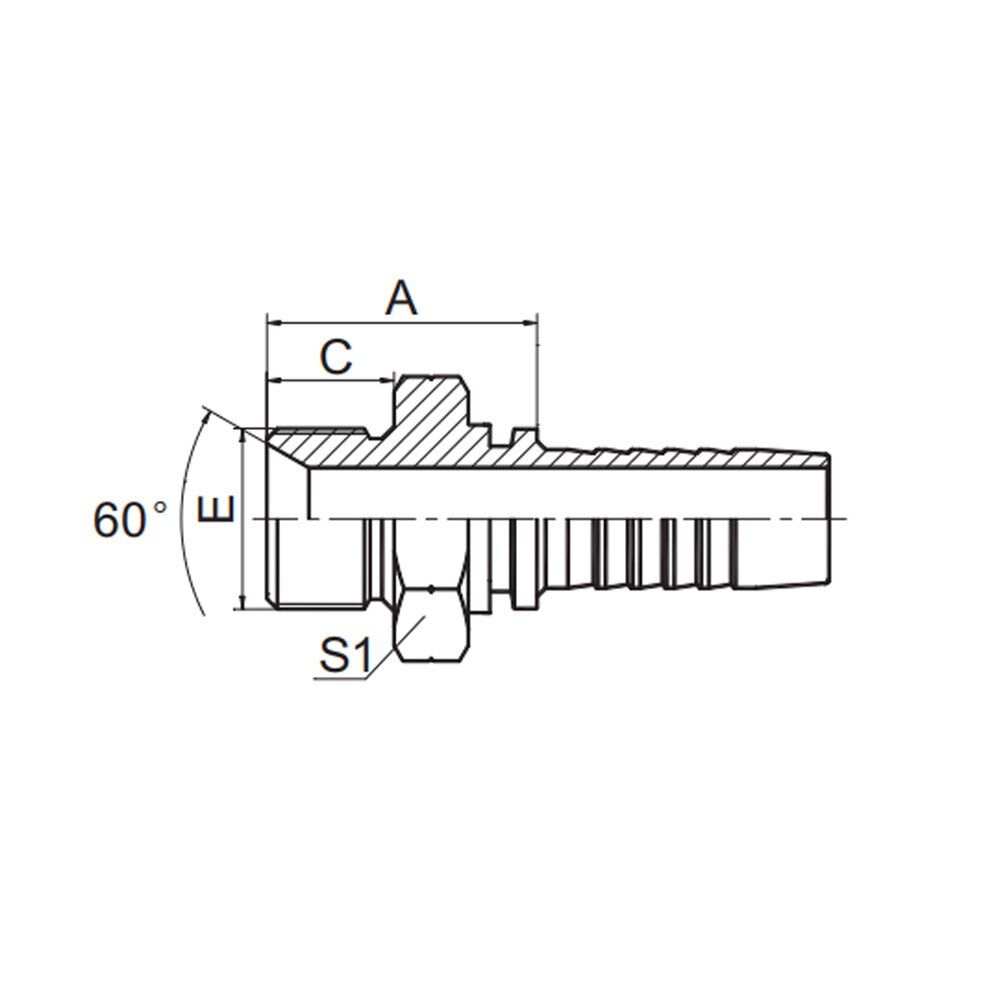

BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL
| PART NO. | THREAD | HOSE BORE | A | C | S1 | |
| DN | DASH | |||||
| 12611A-02-03 | G1/8″X28 | 5 | 03 | 22 | 10 | 14 |
| 12611A-04-04 | G1/4″X19 | 6 | 04 | 24.5 | 12 | 19 |
| 12611A-04-05 | G1/4″X19 | 8 | 05 | 24.5 | 12 | 19 |
| 12611A-06-05 | G3/8″X19 | 8 | 05 | 26 | 13.5 | 22 |
| 12611A-06-06 | G3/8″X19 | 10 | 06 | 28 | 13.5 | 22 |
| 12611A-06-08 | G3/8″X19 | 12 | 08 | 28.5 | 13.5 | 22 |
| 12611A-08-06 | G1/2″X14 | 10 | 06 | 33 | 16 | 27 |
| 12611A-08-08 | G1/2″X14 | 12 | 08 | 33.5 | 16 | 27 |
| 12611A-08-10 | G1/2″X14 | 16 | 10 | 32 | 16 | 27 |
| 12611A-10-08 | G5/8″X14 | 12 | 08 | 35 | 17.5 | 30 |
| 12611A-10-10 | G5/8″X14 | 16 | 10 | 35 | 17.5 | 30 |
| 12611A-12-08 | G3/4″X14 | 12 | 08 | 36.5 | 18.5 | 32 |
| 12611A-12-10 | G3/4″X14 | 16 | 10 | 37.5 | 18.5 | 32 |
| 12611A-12-12 | G3/4″X14 | 20 | 12 | 37.5 | 18.5 | 32 |
| 12611A-16-12 | G1″X11 | 20 | 12 | 42.5 | 20.5 | 41 |
| 12611A-16-16 | G1″X11 | 25 | 16 | 43.5 | 20.5 | 41 |
| 12611A-20-16 | G1.1/4″X11 | 25 | 16 | 45.5 | 20.5 | 50 |
| 12611A-20-20 | G1.1/4″X11 | 32 | 20 | 46.5 | 20.5 | 50 |
| 12611A-24-24 | G1.1/2″X11 | 40 | 24 | 49 | 23 | 55 |
| 12611A-32-32 | G2″X11 | 50 | 32 | 54.5 | 25.5 | 70 |
