Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 26742-xx-xx.

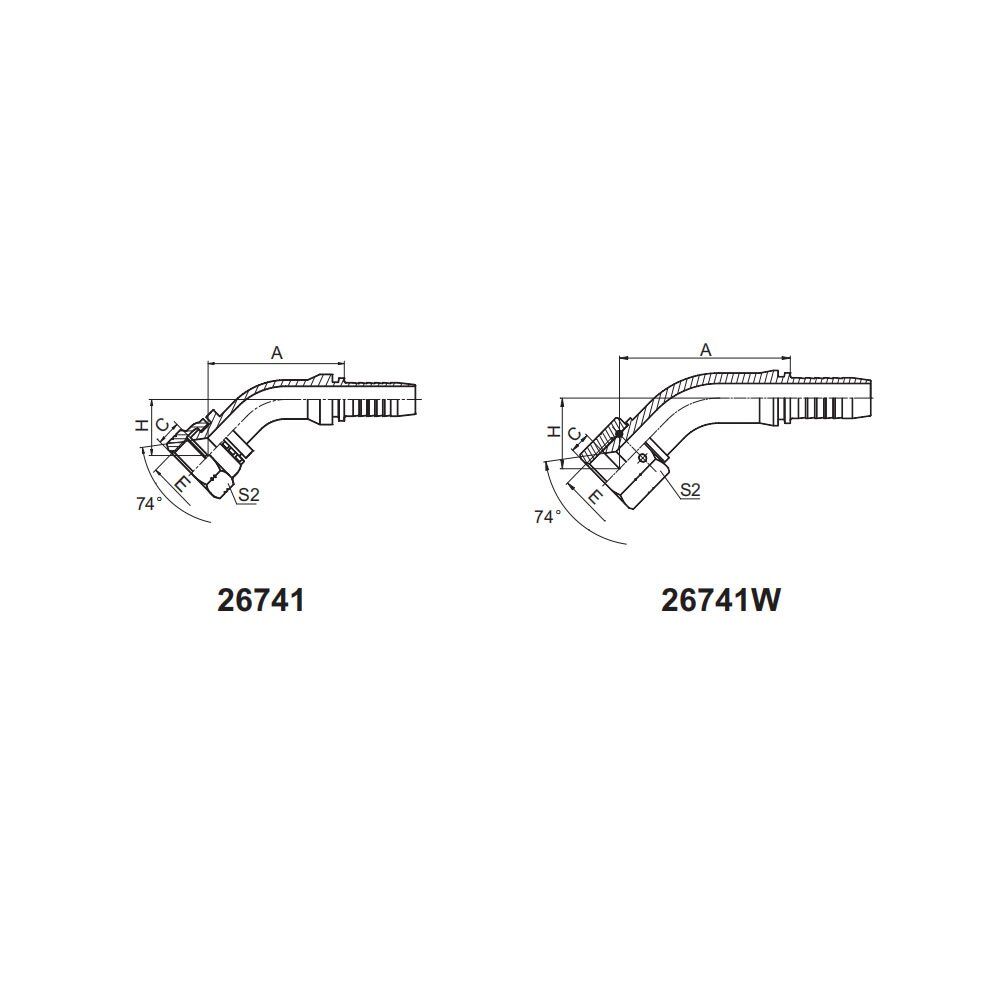

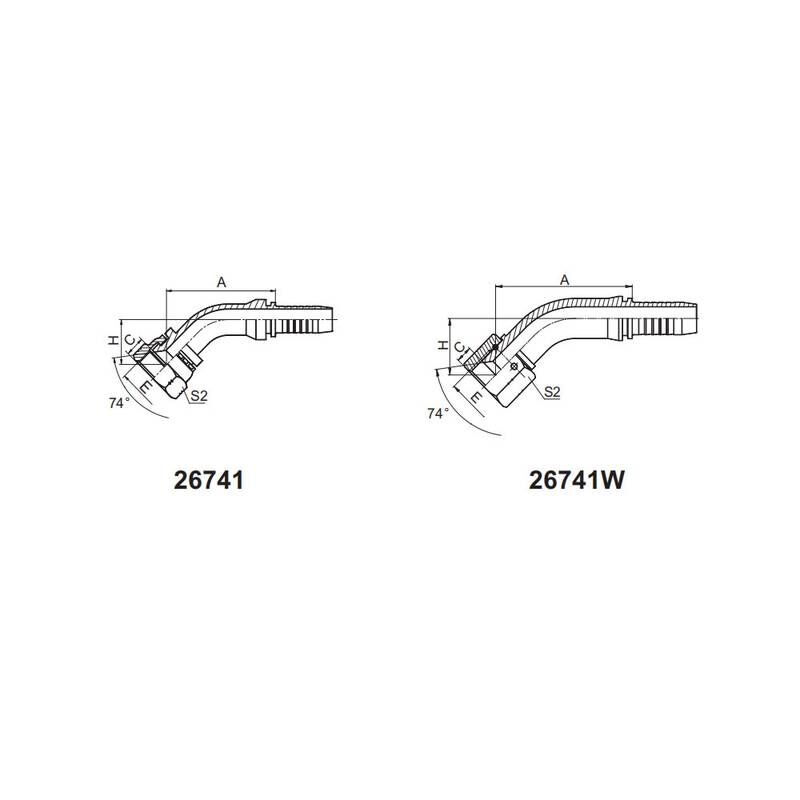

45° JIC FEMALE 74° CONE SEAT SAE J514
| PART NO. | THREAD | HOSE BORE | A | C | H | S2 | |
| DN | DASH | ||||||
| 26741-04-03 | 7/16″X20 | 5 | 03 | 37.6 | 9 | 17.2 | 15 |
| 26741-04-04 | 7/16″X20 | 6 | 04 | 40.2 | 9 | 18.1 | 15 |
| 26741-05-04 | 1/2″X20 | 6 | 04 | 40.2 | 9.5 | 18.5 | 17 |
| 26741-05-05 | 1/2″X20 | 8 | 05 | 42.7 | 9.5 | 19.3 | 17 |
| 26741-05-06 | 1/2″X20 | 10 | 06 | 44.6 | 9.5 | 20.3 | 17 |
| 26741-06-04 | 9/16″X18 | 6 | 04 | 40.5 | 10.5 | 18.5 | 19 |
| 26741-06-05 | 9/16″X18 | 8 | 05 | 42.6 | 10.5 | 19.3 | 19 |
| 26741-06-06 | 9/16″X18 | 10 | 06 | 44.3 | 10.5 | 20 | 19 |
| 26741-08-06 | 3/4″X16 | 10 | 06 | 45.7 | 11 | 21.4 | 24 |
| 26741-08-08 | 3/4″X16 | 12 | 08 | 57.9 | 11 | 22.9 | 24 |
| 26741-10-08 | 7/8″X14 | 12 | 08 | 58.9 | 13 | 24 | 27 |
| 26741-10-10 | 7/8″X14 | 16 | 10 | 69.6 | 13 | 25.3 | 27 |
| 26741-10-12 | 7/8″X14 | 20 | 12 | 75.7 | 13 | 28.9 | 27 |
| 26741-12-08 | 1.1/16″X12 | 12 | 08 | 60 | 15 | 25.1 | 32 |
| 26741-12-10 | 1.1/16″X12 | 16 | 10 | 70.7 | 15 | 26.4 | 32 |
| 26741-12-12 | 1.1/16″X12 | 20 | 12 | 76.8 | 15 | 30 | 32 |
| 26741-14-12 | 1.3/16″X12 | 25 | 12 | 77.4 | 15 | 30 | 32 |
| 26741-16-12 | 1.5/16″X12 | 20 | 12 | 77.4 | 16 | 30 | 41 |
| 26741-16-16 | 1.5/16″X12 | 25 | 16 | 85.7 | 16 | 31.5 | 41 |
| 26741-20-20W | 1.5/8″X12 | 32 | 20 | 95.9 | 17 | 35.2 | 50 |
| 26741-24-20T | 1.7/8″X12 | 32 | 20 | 100.9 | 20 | 40.1 | 55 |
| 26741-24-24W | 1.7/8″X12 | 40 | 24 | 114.8 | 20 | 44.1 | 55 |
| 26741-32-32W | 2.1/2″X12 | 50 | 32 | 135.9 | 23.5 | 51.6 | 75 |
