Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 29642-xx-xx.

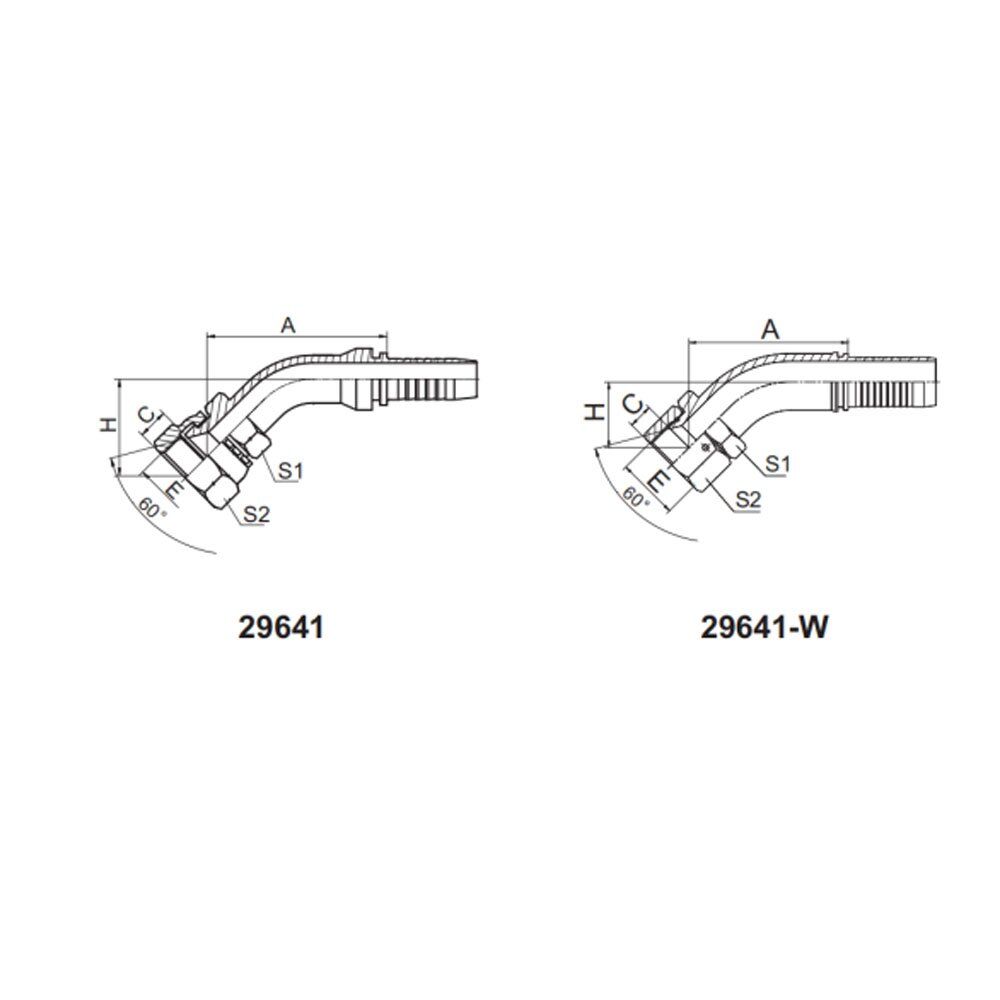

45° JIS GAS FEMALE 60° CONE SEAT JIS B8363
| PART NO. | THREAD | HOSE BORE | A | C | H | S1 | S2 | |
| DN | DASH | |||||||
| 29641-04-04 | G1/4″X19 | 6 | 04 | 43.4 | 8 | 21.3 | 19 | 19 |
| 29641-06-06 | G3/8″X19 | 10 | 06 | 48.9 | 9 | 24.6 | 22 | 22 |
| 29641-08-08 | G1/2″X14 | 12 | 08 | 63.5 | 12 | 27.5 | 27 | 27 |
| 29641-12-12 | G3/4″X14 | 20 | 12 | 81.3 | 13.5 | 33.9 | 32 | 32 |
| 29641-16-16 | G1″X11 | 25 | 16 | 87.3 | 16 | 36.1 | 41 | 41 |
| 29641-20-20W | G1.1/4″X11 | 32 | 20 | 104.4 | 18.5 | 43.7 | 50 | 50 |
| 29641-24-24W | G1.1/2″X11 | 40 | 24 | 121.5 | 19 | 50.8 | 55 | 55 |
| 29641-32-32W | G2″X11 | 50 | 32 | 140.6 | 23 | 57.6 | 70 | 70 |
