Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 20442-xx-xx.

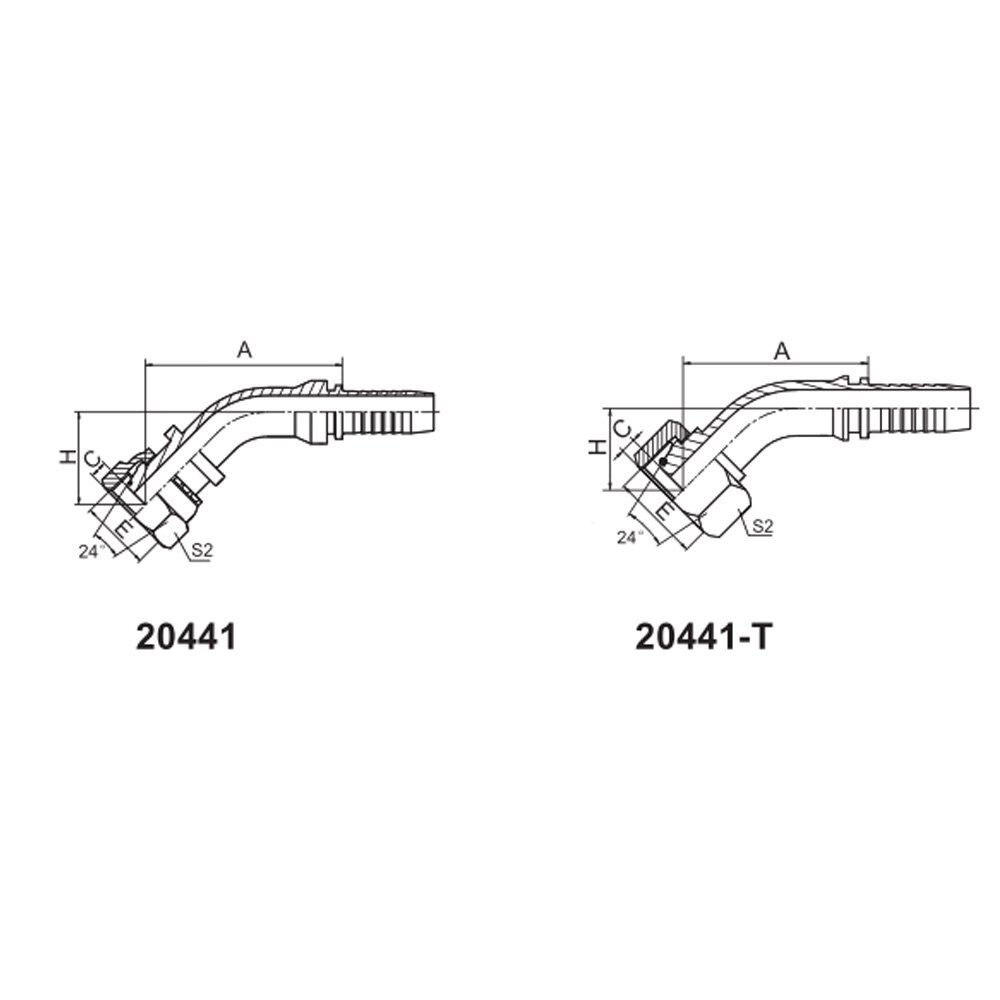

| PART NO. | THREAD | HOSE BORE | TUBE O.D | O RING | A | C | H | S2 | |
| DN | DASH | ||||||||
| 20441-14-04 | M14X1.5 | 6 | 04 | 8 | O06.5X1.5 | 49 | 2 | 27 | 19 |
| 20441-16-05 | M16X1.5 | 8 | 05 | 10 | O08.0X1.5 | 51.5 | 2 | 28.2 | 22 |
| 20441-16-06 | M16X1.5 | 10 | 06 | 10 | O08.0X1.5 | 53.4 | 2 | 29.2 | 22 |
| 20441-18-05T | M18X1.5 | 8 | 05 | 12 | O10.0X1.5 | 46.6 | 1.5 | 23.2 | 22 |
| 20441-18-06 | M18X1.5 | 10 | 06 | 12 | O10.0X1.5 | 54.2 | 2.5 | 29.9 | 24 |
| 20441-22-05T | M22X1.5 | 8 | 05 | 15 | O12.0X2.0 | 46.5 | 3 | 23.2 | 27 |
| 20441-22-06T | M22X1.5 | 10 | 06 | 15 | O12.0X2.0 | 48.5 | 3 | 24.2 | 27 |
| 20441-22-08 | M22X1.5 | 12 | 08 | 15 | O12.0X2.0 | 68.1 | 2.5 | 33.2 | 27 |
| 20441-26-08T | M26X1.5 | 12 | 08 | 18 | O12.0X2.0 | 30.6 | 2.1 | 25.7 | 32 |
| 20441-26-10 | M26X1.5 | 16 | 10 | 18 | O15.0X2.0 | 80.7 | 2.5 | 35.9 | 32 |
| 20441-26-12 | M26X1.5 | 20 | 12 | 18 | O15.0X2.0 | 86.9 | 2.5 | 39.5 | 32 |
| 20441-27-10T | M27X1.5 | 16 | 10 | 18 | O15.0X2.0 | 72 | 2.1 | 27.7 | 32 |
| 20441-27-12 | M27X1.5 | 20 | 12 | 18 | O15.0X2.0 | 86.9 | 2.5 | 39.5 | 32 |
| 20441-30-10T | M30X2 | 16 | 10 | 22 | O20.0X2.0 | 73.5 | 3.8 | 28.6 | 36 |
| 20441-30-12 | M30X2 | 20 | 12 | 22 | O20.0X2.0 | 89.1 | 4 | 41.7 | 36 |
| 20441-36-12T | M36X2 | 20 | 12 | 28 | O26.0X2.0 | 79.5 | 4.5 | 32.1 | 46 |
| 20441-36-14T | M36X2 | 22 | 14 | 28 | O26.0X2.0 | 81.9 | 4.5 | 31.6 | 46 |
| 20441-45-20T | M45X2 | 32 | 20 | 35 | O32.0X2.0 | 99.8 | 4 | 39.1 | 55 |
| 20441-52-20T | M52X2 | 32 | 20 | 42 | O38.0X2.0 | 102 | 4 | 39.8 | 60 |
| 20441-52-24T | M52X2 | 40 | 24 | 42 | O38.0X2.0 | 114.5 | 4 | 43.7 | 60 |
