Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 20442C-xx-xx.

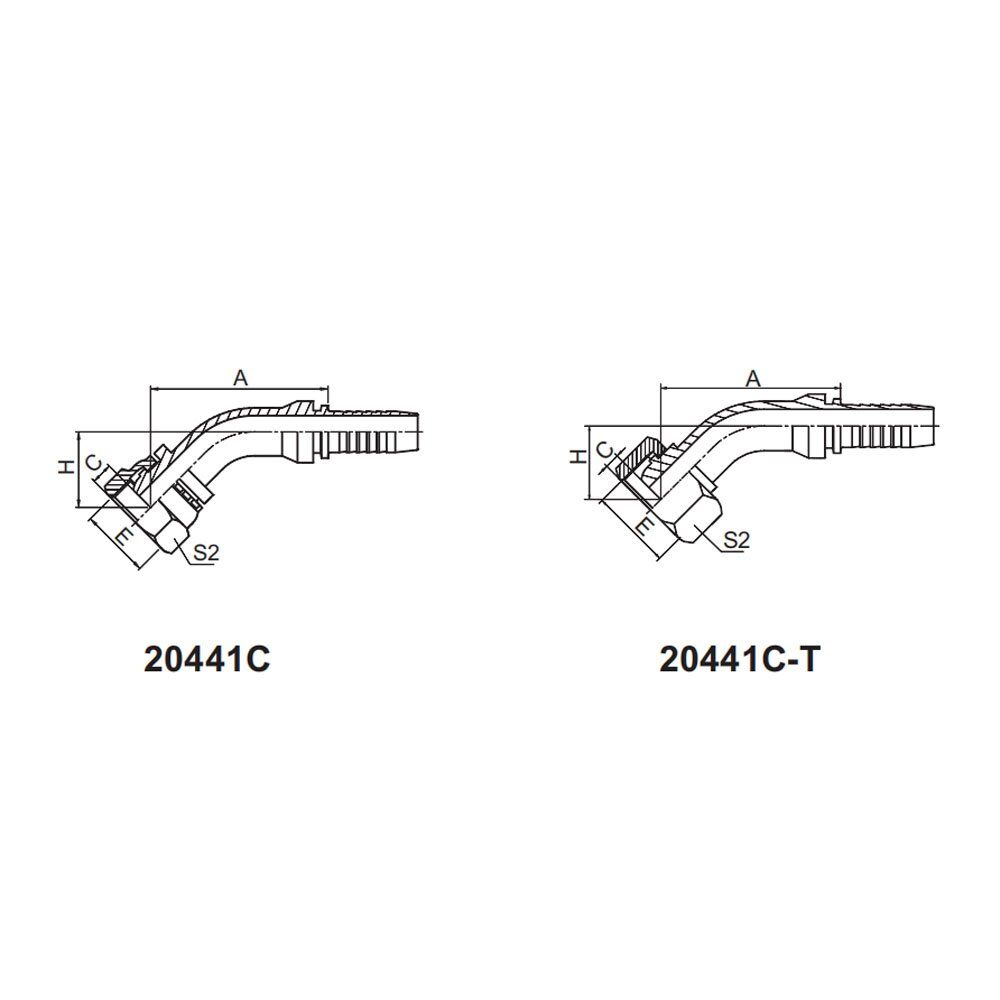

45° METRIC FEMALE 24° MULTISEAL L.T. DIN 3868
| PART NO. | THREAD | HOSE BORE | TUBE O.D | A | C | H | S2 | |
| DN | DASH | |||||||
| 20441C-14-04 | M14X1.5 | 6 | 04 | 8 | 44 | 3.5 | 22 | 19 |
| 20441C-16-04 | M16X1.5 | 6 | 04 | 10 | 44.8 | 3.5 | 22.7 | 22 |
| 20441C-16-05 | M16X1.5 | 8 | 05 | 10 | 46.6 | 3.5 | 23.2 | 22 |
| 20441C-16-06 | M16X1.5 | 10 | 06 | 10 | 48.2 | 3.5 | 23.9 | 22 |
| 20441C-18-06 | M18X1.5 | 10 | 06 | 12 | 50 | 3 | 25.7 | 24 |
| 20441C-22-06T | M22X1.5 | 10 | 06 | 15 | 50.8 | 4.5 | 26 | 27 |
| 20441C-22-08 | M22X1.5 | 12 | 08 | 15 | 62.8 | 4.5 | 27.9 | 27 |
| 20441C-26-10 | M26X1.5 | 16 | 10 | 18 | 75.1 | 4 | 30.6 | 32 |
| 20441C-30-10T | M30X2 | 16 | 10 | 22 | 74.7 | 7 | 29.9 | 36 |
| 20441C-30-12 | M30X2 | 20 | 12 | 22 | 82 | 7 | 33.5 | 36 |
| 20441C-30-14 | M30X2 | 22 | 14 | 22 | 83.8 | 7 | 33.3 | 36 |
| 20441C-36-12T | M36X2 | 20 | 12 | 28 | 80.2 | 6.5 | 32.8 | 41 |
| 20441C-36-16 | M36X2 | 25 | 16 | 28 | 89.6 | 6.5 | 35.7 | 41 |
| 20441C-36-18 | M36X2 | 28 | 18 | 28 | 96.5 | 6.5 | 39.4 | 41 |
| 20441C-45-20T | M45X2 | 32 | 20 | 35 | 102.3 | 7 | 41.5 | 55 |
| 20441C-52-24T | M52X2 | 40 | 24 | 42 | 116.9 | 8 | 46.2 | 60 |
