Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 21642-xx-xx.

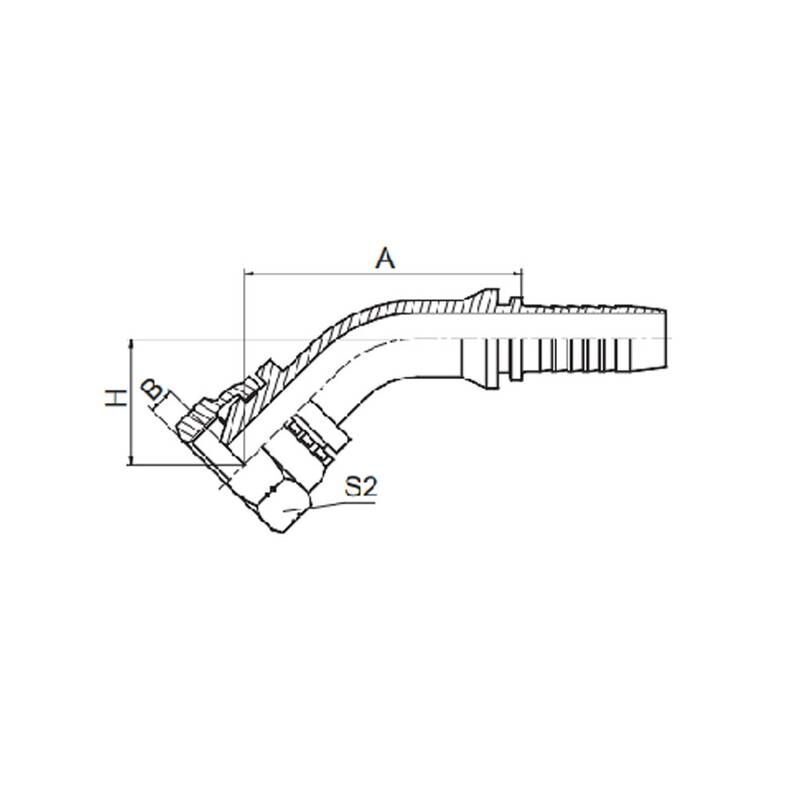

45° NPSM FEMALE 60° CONE
| PART NO. | THREAD | HOSE BORE | A | B | H | S2 | |
| DN | DASH | ||||||
| 21641-04-04 | 1/4″X18 | 6 | 04 | 45.1 | 4.6 | 23 | 19 |
| 21641-06-06 | 3/8″X18 | 10 | 06 | 47.2 | 6 | 24.9 | 22 |
| 21641-08-08 | 1/2″X14 | 12 | 08 | 62.7 | 7.5 | 27.7 | 27 |
| 21641-12-12 | 3/4″X14 | 20 | 12 | 81.4 | 8.9 | 34 | 32 |
| 21641-16-16 | 1″X11.5 | 25 | 16 | 89.2 | 10.5 | 35 | 41 |
| 21641-20-20W | 1.1/4″X11.5 | 32 | 20 | 99.8 | 11.2 | 39.3 | 50 |
| 21641-24-24W | 1.1/2″X11.5 | 40 | 24 | 115.1 | 11.2 | 44.4 | 55 |
| 21641-32-32W | 2″X11.5 | 50 | 32 | 136.4 | 11.2 | 63.4 | 70 |
