Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 22292-xx-xx.

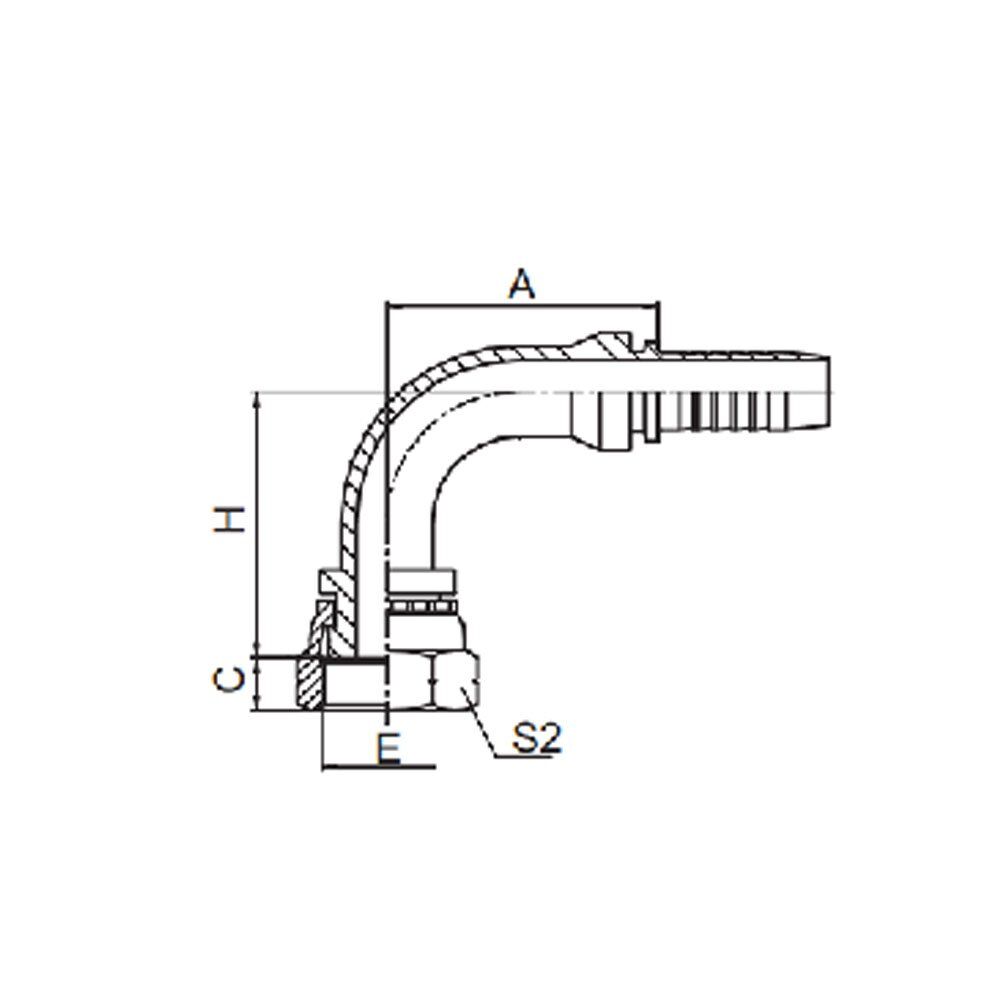

90° BSP FEMALE FLAT SEAT
| PART NO. | THREAD | HOSE BORE | A | C | H | S2 | |
| DN | DASH | ||||||
| 22291-04-04 | G1/4″X19 | 6 | 04 | 30 | 8 | 34.5 | 19 |
| 22291-06-06 | G3/8″X19 | 10 | 06 | 35.3 | 9 | 41.3 | 22 |
| 22291-08-08 | G1/2″X14 | 12 | 08 | 41 | 10.5 | 48 | 27 |
| 22291-12-12 | G3/4″X14 | 20 | 12 | 65.5 | 13.5 | 63.5 | 32 |
| 22291-16-16 | G1″X11 | 25 | 16 | 76.7 | 15.5 | 70 | 41 |
| 22291-20-20W | G1.1/4″X11 | 32 | 20 | 91.5 | 15.5 | 82.5 | 50 |
| 22291-24-24W | G1.1/2″X11 | 40 | 24 | 109.4 | 17.5 | 98.5 | 55 |
