Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 20492-xx-xx.

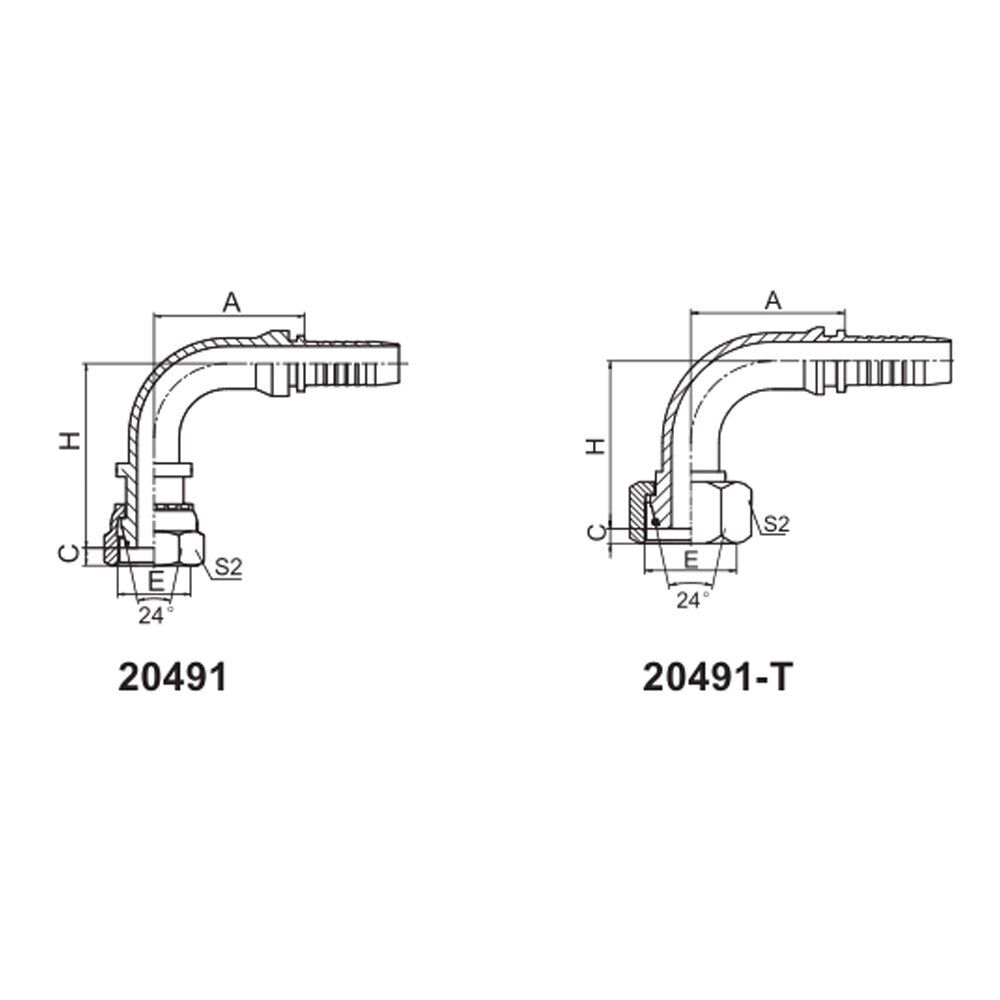

90° METRIC FEMALE 24° CONE O-RING L.T. ISO 12151-2-DIN 3865
| PART NO. | THREAD | HOSE BORE | TUBE O.D | O RING | A | C | H | S2 | |
| DN | DASH | ||||||||
| 20491-12-03 | M12X1.5 | 5 | 03 | 6 | O04.5X1.5 | 26.5 | 1 | 35 | 17 |
| 20491-12-04 | M12X1.5 | 6 | 04 | 6 | O04.5X1.5 | 30 | 1 | 44.5 | 17 |
| 20491-14-04 | M14X1.5 | 6 | 04 | 8 | O06.5X1.5 | 30 | 2 | 38 | 19 |
| 20491-16-04 | M16X1.5 | 6 | 04 | 10 | O06.5X1.5 | 30 | 2 | 39 | 22 |
| 20491-16-05 | M16X1.5 | 8 | 05 | 10 | O08.0X1.5 | 33 | 2 | 42 | 22 |
| 20491-16-06 | M16X1.5 | 10 | 06 | 10 | O08.0X1.5 | 35.3 | 2 | 51.8 | 22 |
| 20491-18-05T | M18X1.5 | 8 | 05 | 12 | O10.0X1.5 | 33 | 1.5 | 42.5 | 22 |
| 20491-18-06 | M18X1.5 | 10 | 06 | 12 | O10.0X1.5 | 35.3 | 2.5 | 44.3 | 24 |
| 20491-22-06T | M22X1.5 | 10 | 06 | 15 | O12.0X2.0 | 35.3 | 3 | 44.8 | 27 |
| 20491-22-08 | M22X1.5 | 12 | 08 | 15 | O12.0X2.0 | 41 | 2.5 | 52 | 27 |
| 20491-26-08T | M26X1.5 | 12 | 08 | 18 | O12.0X2.0 | 41 | 2.1 | 51 | 32 |
| 20491-26-10 | M26X1.5 | 16 | 10 | 18 | O15.0X2.0 | 56 | 2.5 | 58.5 | 32 |
| 20491-26-12 | M26X1.5 | 20 | 12 | 18 | O15.0X2.0 | 64.9 | 2.5 | 77 | 32 |
| 20491-27-10T | M27X1.5 | 16 | 10 | 18 | O15.0X2.0 | 56 | 2.1 | 54.9 | 32 |
| 20491-27-12 | M27X1.5 | 20 | 12 | 18 | O15.0X2.0 | 64.9 | 2.5 | 77 | 32 |
| 20491-30-10T | M30X2 | 16 | 10 | 22 | O20.0X2.0 | 56 | 3.8 | 57.2 | 36 |
| 20491-30-12 | M30X2 | 20 | 12 | 22 | O20.0X2.0 | 65.5 | 4 | 63 | 36 |
| 20491-36-12T | M36X2 | 20 | 12 | 28 | O26.0X2.0 | 65.5 | 4.5 | 66.5 | 46 |
| 20491-36-14T | M36X2 | 22 | 14 | 28 | O26.0X2.0 | 71.2 | 4.5 | 67.5 | 46 |
| 20491-45-16T | M45X2 | 25 | 16 | 35 | O32.0X2.0 | 76.7 | 4 | 75 | 55 |
| 20491-45-20T | M45X2 | 32 | 20 | 35 | O32.0X2.0 | 91.5 | 4 | 85 | 55 |
| 20491-52-20T | M52X2 | 32 | 20 | 42 | O38.0X2.0 | 93 | 4 | 87 | 60 |
| 20491-52-24T | M52X2 | 40 | 24 | 42 | O38.0X2.0 | 109.4 | 4 | 100.5 | 60 |
