Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 20412C-xx-xx.

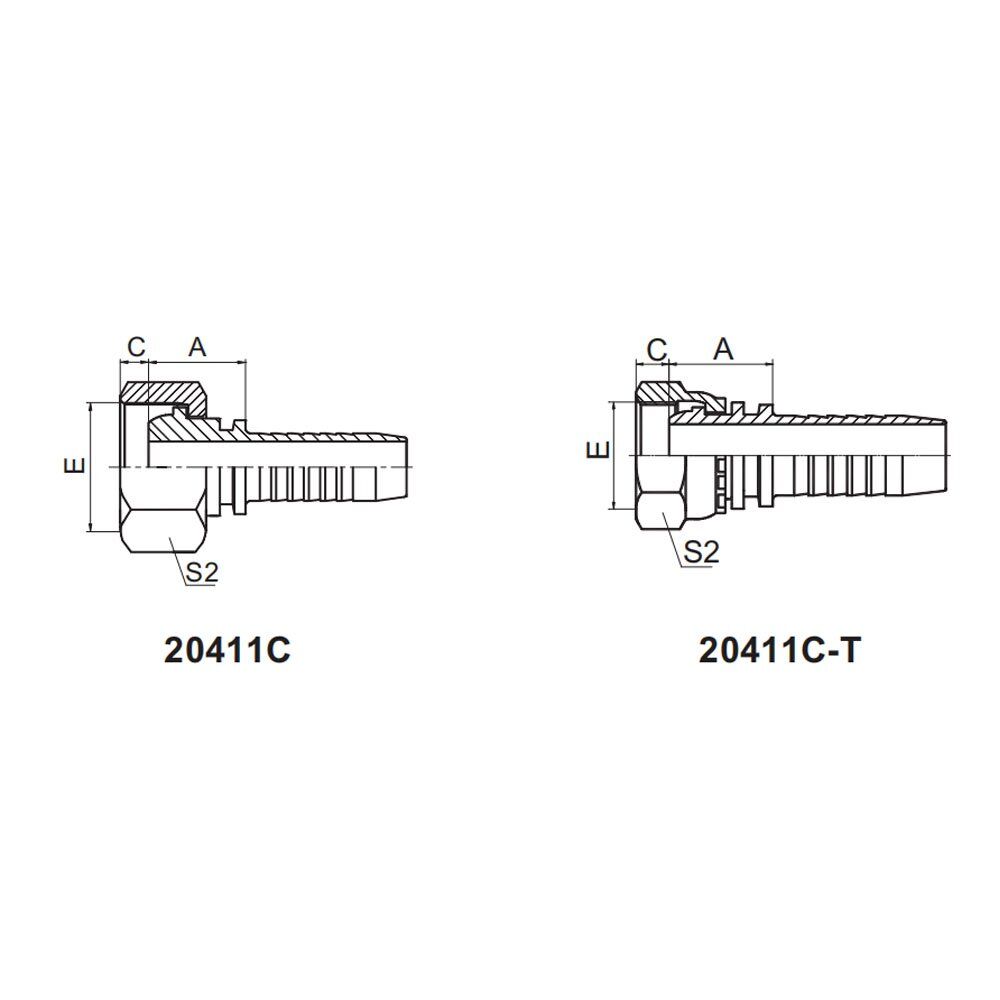

METRIC FEMALE 24° MULTISEAL L.T.
PART NO. | THREAD | HOSE BORE | TUBE O.D | A | C | S1 | |
DN | DASH | ||||||
20411C-12-04 | M12X1.5 | 6 | 04 | 6 | 19.5 | 3.5 | 17 |
20411C-14-04 | M14X1.5 | 6 | 04 | 8 | 20.5 | 3.5 | 19 |
20411C-16-04 | M16X1.5 | 6 | 04 | 10 | 21 | 3.5 | 22 |
20411C-16-05 | M16X1.5 | 8 | 05 | 10 | 21 | 3.5 | 22 |
20411C-16-06 | M16X1.5 | 10 | 06 | 10 | 21 | 3.5 | 22 |
20411C-18-06 | M18X1.5 | 10 | 06 | 12 | 22.5 | 3 | 24 |
20411C-22-06T | M22X1.5 | 10 | 06 | 15 | 23.5 | 4.5 | 27 |
20411C-22-08 | M22X1.5 | 12 | 08 | 15 | 24 | 4.5 | 27 |
20411C-26-10 | M26X1.5 | 16 | 10 | 18 | 27 | 4 | 32 |
20411C-30-10T | M30X2 | 16 | 10 | 22 | 26.5 | 7 | 36 |
20411C-30-12 | M30X2 | 20 | 12 | 22 | 27 | 7 | 36 |
20411C-30-14 | M30X2 | 22 | 14 | 22 | 27 | 7 | 36 |
20411C-36-16 | M36X2 | 25 | 16 | 28 | 29 | 6.7 | 41 |
20411C-45-20T | M45X2 | 32 | 20 | 35 | 33 | 7 | 55 |
20411C-52-24T | M52X2 | 40 | 24 | 42 | 34 | 8 | 60 |
