90° METRIC STANDPIPE STRAIGHT

Category Hydraulic Connectors Tag 50091

Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 50092-xx-xx.

Additional information

Product Video

Product Details:

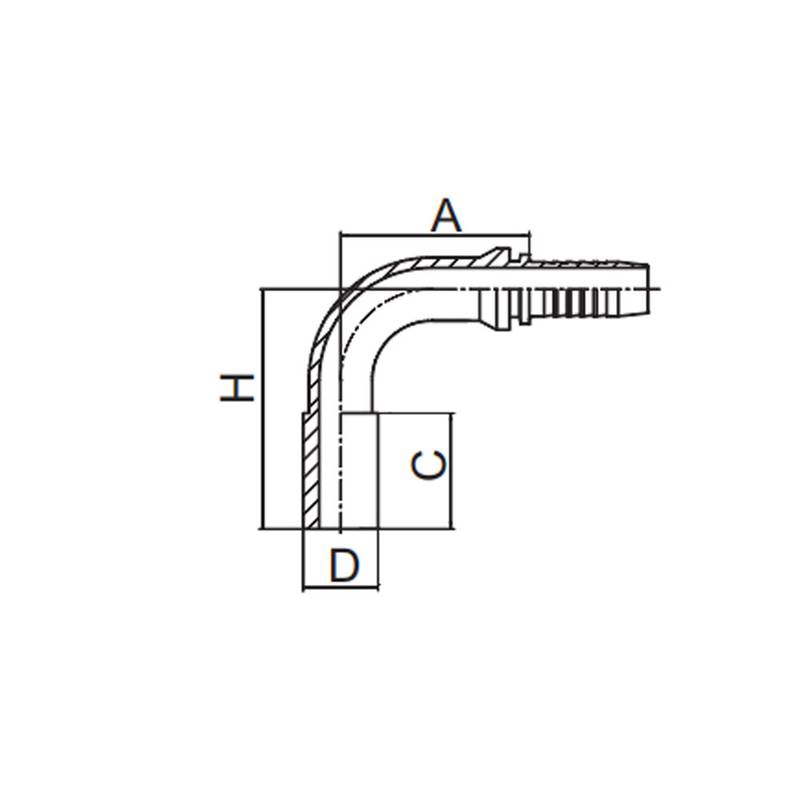

90° METRIC STANDPIPE STRAIGHT

PART NO.	TUBE O.D.	HOSE BORE		A	C	H	L.T.
PART NO.	TUBE O.D.	DN	DASH	A	C	H
50091-06-03	6	5	03	26.5	22	42.5
50091-06-04	6	6	04	30	22	45.5
50091-08-05	8	8	05	33	24	50.5
50091-08-06	8	10	06	35.3	24	52.8
50091-10-05	10	8	05	33	23	49.5
50091-10-06	10	10	06	35.3	23	51.8
50091-12-06	12	10	06	35.3	23	53.8
50091-12-08	12	12	08	41	23	59
50091-15-06	15	10	06	35.3	25	53.8
50091-15-08	15	12	08	41	25	59
50091-18-08	18	12	08	41	26	60
50091-18-10	18	16	10	56.5	26	64.5
50091-22-10	22	16	10	56.5	28	66.5
50091-22-12	22	20	12	65.5	28	76
50091-22-16	22	25	16	76.7	28	81.5
50091-28-16	28	25	16	76.7	30	83.5
50091-35-20	35	32	20	93	36	100.5
50091-08-04	8	6	04	30	24	47.5	H.T.
50091-10-04	10	6	04	30	26	49.5
50091-12-04	12	6	04	30	26	49.5
50091-12-05	12	8	05	33	26	52.5
50091-14-06	14	10	06	35.3	29	57.8
50091-14-08	14	12	08	41	29	63
50091-16-08	16	12	08	41	30	64
50091-16-10	16	16	10	56.5	30	68.5
50091-20-10	20	16	10	56.5	36	74.5
50091-20-12	20	20	12	65.5	36	85
50091-25-12	25	20	12	65.5	40	89
50091-25-16	25	25	16	76.7	40	93.5
50091-30-16	30	25	16	76.7	40	93.5
50091-30-20	30	32	20	91.5	44	108.5
50091-38-16	38	25	16	76.7	50	115.5
50091-38-20	38	32	20	91.5	50	114.5
