Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 24292-xx-xx.

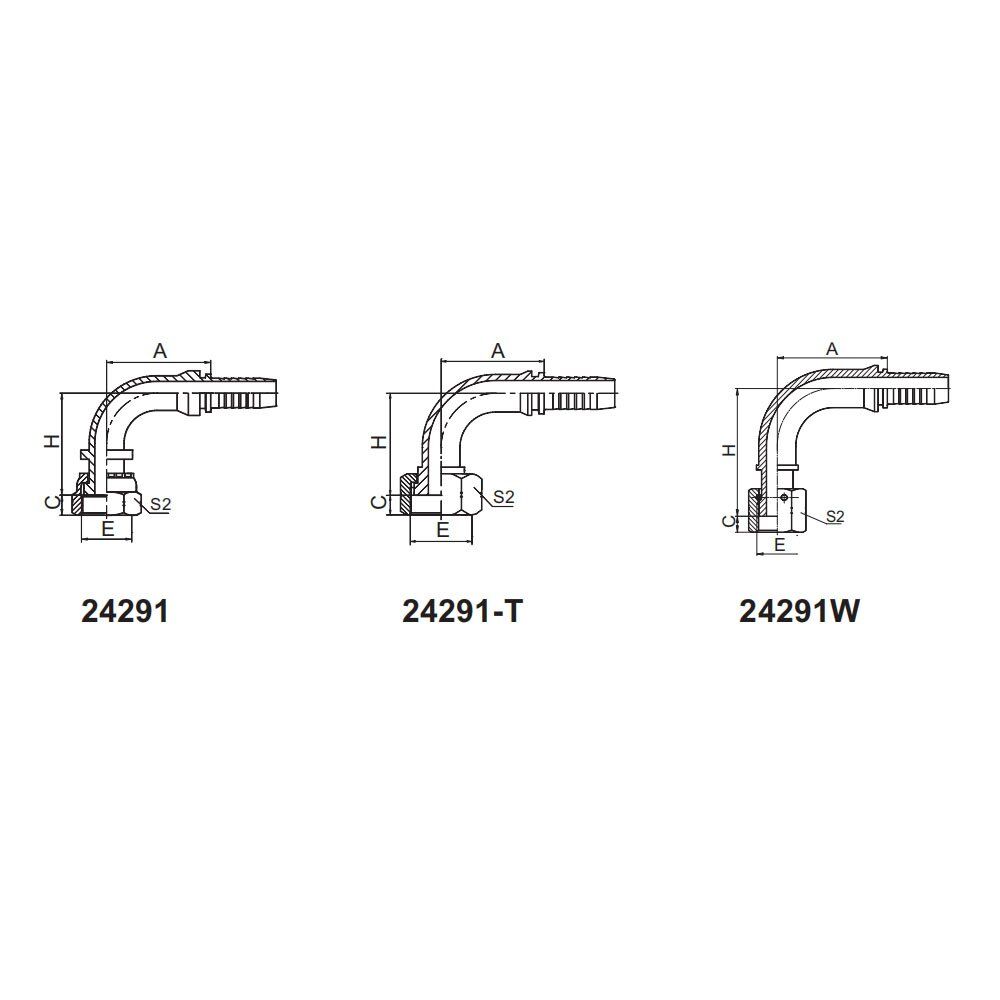

90° ORFS FEMALE FLAT SEAT ISO 12151-1 SAE J516
| PART NO. | THREAD | HOSE BORE | A | H | C | S2 | |
| DN | DASH | ||||||
| 24291-04-04 | 9/16″X18 | 6 | 04 | 30 | 41 | 8.5 | 19 |
| 24291-04-05 | 9/16″X18 | 8 | 05 | 33 | 44 | 8.5 | 19 |
| 24291-06-05T | 11/16″X16 | 8 | 05 | 33 | 37.5 | 10 | 22 |
| 24291-06-06 | 11/16″X16 | 10 | 06 | 35.3 | 49.3 | 10 | 22 |
| 24291-06-08 | 11/16″X16 | 12 | 08 | 41 | 55 | 10 | 22 |
| 24291-08-06T | 13/16″X16 | 10 | 06 | 35.3 | 39.8 | 11 | 27 |
| 24291-08-08 | 13/16″X16 | 12 | 08 | 41 | 57.5 | 11 | 27 |
| 24291-08-10 | 13/16″X16 | 16 | 10 | 56.5 | 61.5 | 11 | 27 |
| 24291-10-08T | 1″X14 | 12 | 08 | 41 | 46 | 13.5 | 30 |
| 24291-10-10 | 1″X14 | 16 | 10 | 56 | 66 | 13.5 | 30 |
| 24291-10-12 | 1″X14 | 20 | 12 | 65.5 | 75.5 | 13.5 | 30 |
| 24291-12-10T | 1.3/16″X12 | 16 | 10 | 56 | 51.5 | 15 | 36 |
| 24291-12-12 | 1.3/16″X12 | 20 | 12 | 65.5 | 77 | 15 | 36 |
| 24291-12-16 | 1.3/16″X12 | 25 | 16 | 76.7 | 83.5 | 15 | 36 |
| 24291-16-12T | 1.7/16″X12 | 20 | 12 | 65.5 | 63 | 14.8 | 41 |
| 24291-16-14T | 1.7/16″X12 | 22 | 14 | 71.2 | 63 | 14.8 | 41 |
| 24291-16-16T | 1.7/16″X12 | 25 | 16 | 76.9 | 67.5 | 14.8 | 41 |
| 24291-20-16T | 1.11/16″X12 | 25 | 16 | 76.7 | 67.5 | 15 | 50 |
| 24291-20-20W | 1.11/16″X12 | 32 | 20 | 93 | 100 | 15 | 50 |
| 24291-24-20T | 2″X12 | 32 | 20 | 91.5 | 78.5 | 14.8 | 60 |
| 24291-24-24T | 2″X12 | 40 | 24 | 109.4 | 92 | 14.8 | 60 |
