Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 27892-xx-xx.

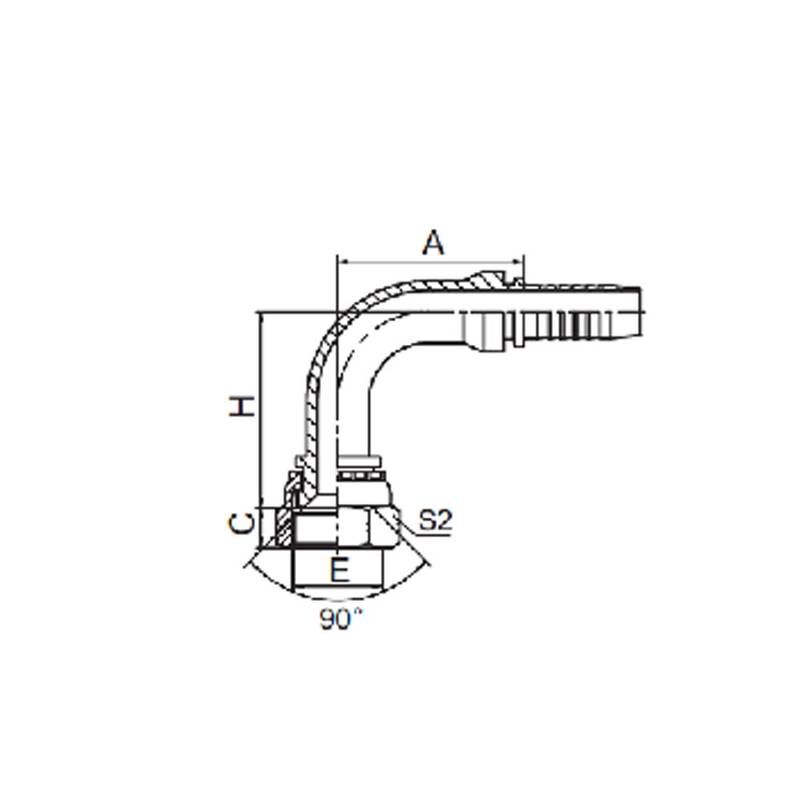

90° SAE FEMALE 90° CONE SEAT SAE J513
| PART NO. | THREAD | HOSE BORE | A | C | H | S2 | |
| DN | DASH | ||||||
| 27891-04-04 | 7/16″X20 | 6 | 04 | 30 | 9 | 33.5 | 15 |
| 27891-06-04 | 5/8″X18 | 6 | 04 | 30 | 11.3 | 35.5 | 22 |
| 27891-06-05 | 5/8″X18 | 8 | 05 | 33 | 11.3 | 38.5 | 22 |
| 27891-06-06 | 5/8″X18 | 10 | 06 | 35.3 | 11.3 | 40.8 | 22 |
| 27891-10-08 | 7/8″X14 | 12 | 08 | 42 | 13 | 47 | 27 |
| 27891-10-10 | 7/8″X14 | 16 | 10 | 56.5 | 13 | 52.5 | 27 |
| 27891-12-12 | 1.1/16″X14 | 20 | 12 | 65 | 14.3 | 63.5 | 32 |
90° SAE FEMALE 90° CONE SEAT SAE J513
| PART NO. | THREAD | HOSE BORE | A | C | H | S2 | |
| DN | DASH | ||||||
| 27891-04-04 | 7/16″X20 | 6 | 04 | 30 | 9 | 33.5 | 15 |
| 27891-06-04 | 5/8″X18 | 6 | 04 | 30 | 11.3 | 35.5 | 22 |
| 27891-06-05 | 5/8″X18 | 8 | 05 | 33 | 11.3 | 38.5 | 22 |
| 27891-06-06 | 5/8″X18 | 10 | 06 | 35.3 | 11.3 | 40.8 | 22 |
| 27891-10-08 | 7/8″X14 | 12 | 08 | 42 | 13 | 47 | 27 |
| 27891-10-10 | 7/8″X14 | 16 | 10 | 56.5 | 13 | 52.5 | 27 |
| 27891-12-12 | 1.1/16″X14 | 20 | 12 | 65 | 14.3 | 63.5 | 32 |
