Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 60012-xx-xx.

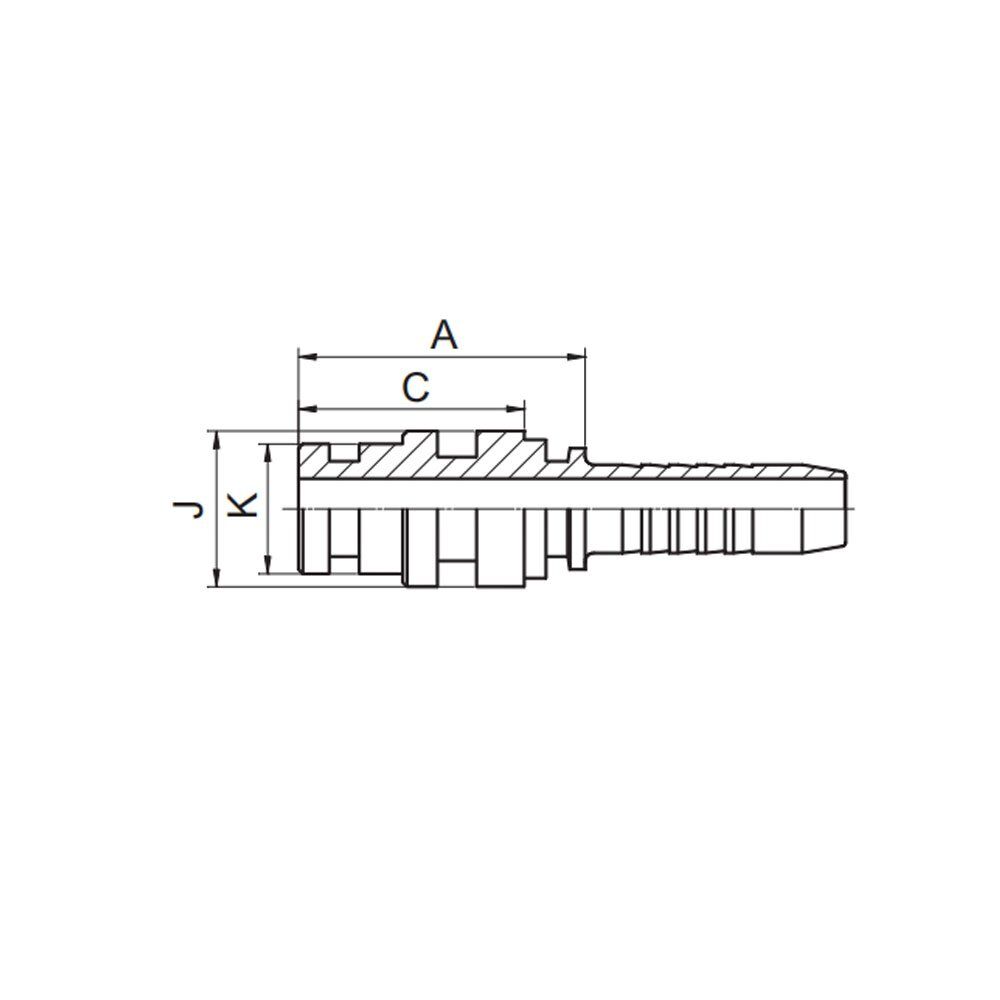

MT STAPLE-LOK MALE
| PART NO. | HOSE BORE | A | C | J | K | |
| DN | DASH | |||||
| 60011-04-04 | 6 | 04 | 31 | 25 | 15 | 11 |
| 60011-05-05 | 8 | 05 | 33.5 | 26 | 18 | 13 |
| 60011-06-06 | 10 | 06 | 33 | 26 | 18 | 15 |
| 60011-08-06 | 10 | 06 | 33.5 | 26 | 22 | 18 |
| 60011-08-08 | 12 | 06 | 34 | 26 | 22 | 18 |
| 60011-10-10 | 16 | 10 | 38.5 | 30 | 25 | 20 |
| 60011-12-12 | 20 | 12 | 40.5 | 31 | 28 | 24 |
| 60011-16-14 | 22 | 14 | 41 | 31 | 35 | 30 |
| 60011-16-16 | 25 | 16 | 41 | 31 | 35 | 30 |
