Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 87X92-xx-xx.

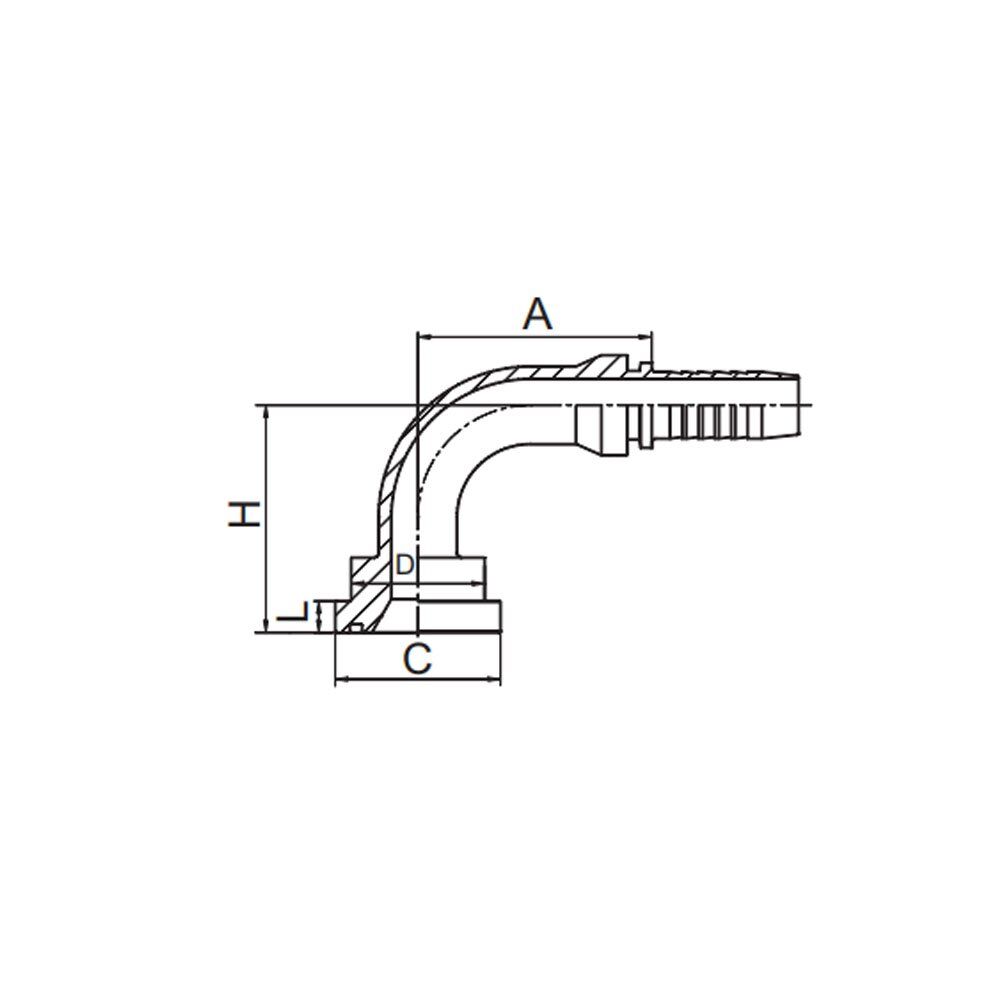

90° SAE FLANGE 6000PSI ISO 12151-3-SAE J516
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | D | H | L | ||
| 87691-12-12(H100) | 3/4″ | 20 | 12 | 65.5 | 41.3 | 32 | 100 | 8.76 |
| 87691-12-12(H127) | 3/4″ | 20 | 12 | 65.5 | 41.3 | 32 | 127 | 8.76 |
| 87691-12-12(H150) | 3/4″ | 20 | 12 | 65.5 | 41.3 | 32 | 150 | 8.76 |
| 87691-16-16(H100) | 1″ | 25 | 16 | 76.7 | 47.6 | 38 | 100 | 9.53 |
| 87691-16-16(H127) | 1″ | 25 | 16 | 76.7 | 47.6 | 38 | 127 | 9.53 |
| 87691-16-16(H150) | 1” | 25 | 16 | 76.7 | 47.6 | 38 | 150 | 9.53 |
| 87691-20-20(H100) | 1.1/4″ | 32 | 20 | 91.5 | 54.0 | 44 | 100 | 10.29 |
| 87691-20-20(H127) | 1.1/4″ | 32 | 20 | 91.5 | 54.0 | 44 | 127 | 10.29 |
| 87691-20-20(H150) | 1.1/4″ | 32 | 20 | 91.5 | 54.0 | 44 | 150 | 10.29 |
| 87691-24-24(H100) | 1.1/2″ | 40 | 24 | 109.4 | 63.5 | 51 | 100 | 12.57 |
| 87691-24-24(H127) | 1.1/2″ | 40 | 24 | 109.4 | 63.5 | 51 | 127 | 12.57 |
