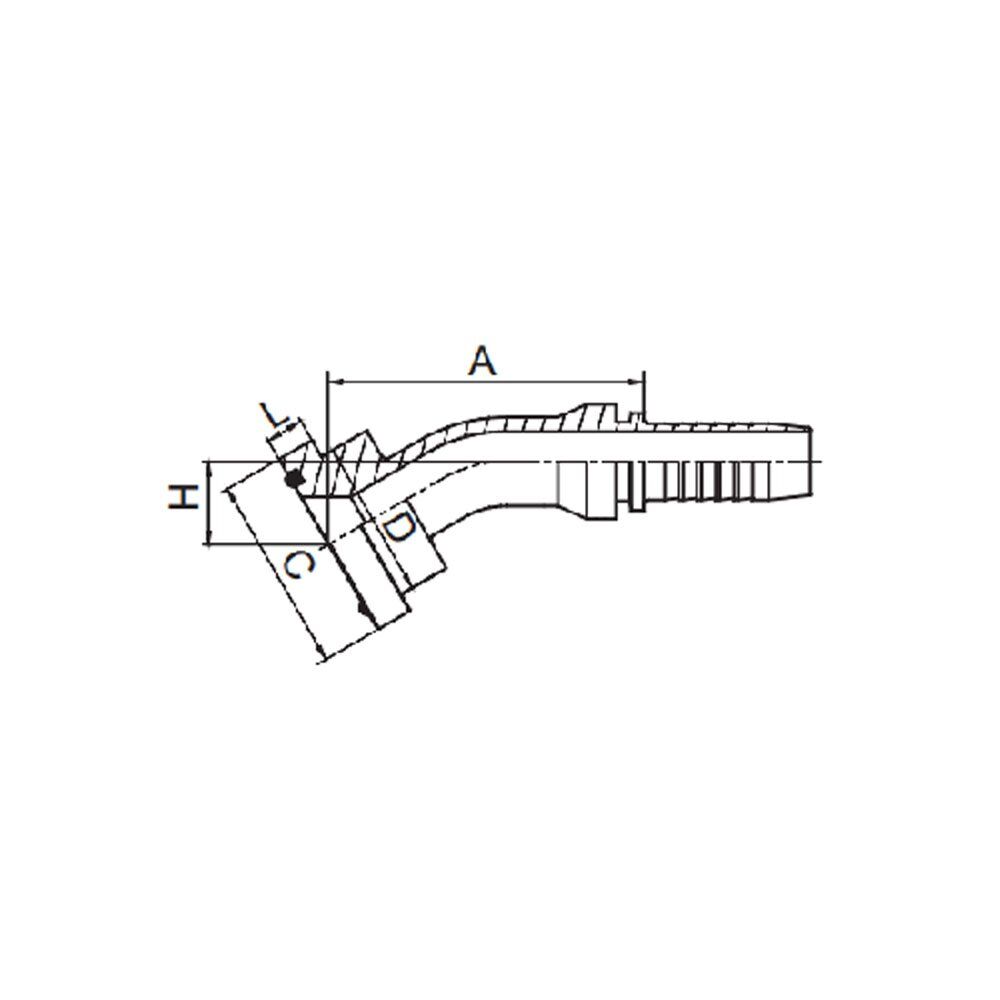

30° SAE FLANGE 6000PSI
| PART NO. | FLANGE SIZE | HOSE BORE | O RING | DIMENSIONS | |||||
| DN | DASH | A | C | D | H | L | |||
| 87631-08-08 | 1/2″ | 12 | 08 | 18.64X3.53 | 31.7 | 23.9 | 15.7 | 7.9 | |
| 87631-12-12 | 3/4″ | 20 | 12 | 24.99X3.53 | 41.3 | 31.7 | 19.8 | 8.9 | |
| 87631-16-12 | 1″ | 20 | 12 | 32.92X3.53 | 47.6 | 38 | 9.6 | ||
| 87631-16-16 | 1″ | 25 | 16 | 32.92X3.53 | 47.6 | 38 | 20.8 | 9.6 | |
| 87631-16-20 | 1″ | 32 | 20 | 32.92X3.53 | 47.6 | 38 | 9.6 | ||
| 87631-20-16 | 1.1/4″ | 25 | 16 | 37.69X3.53 | 54.0 | 43.6 | 10.4 | ||
| 87631-20-20 | 1.1/4″ | 32 | 20 | 37.69X3.53 | 54.0 | 43.6 | 24 | 10.4 | |
| 87631-24-20 | 1.1/2″ | 32 | 20 | 47.22X3.53 | 63.5 | 50.8 | 25.5 | 12.7 | |
| 87631-24-24 | 1.1/2″ | 40 | 24 | 47.22X3.53 | 63.5 | 50.8 | 27.3 | 12.7 | |
| 87631-32-24 | 2″ | 40 | 24 | 56.74X3.53 | 79.4 | 66.5 | 27.3 | 12.7 | |
| 87631-32-32 | 2″ | 50 | 32 | 56.74X3.53 | 79.4 | 66.5 | 31.2 | 12.7 | |
