Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 87392-xx-xx.

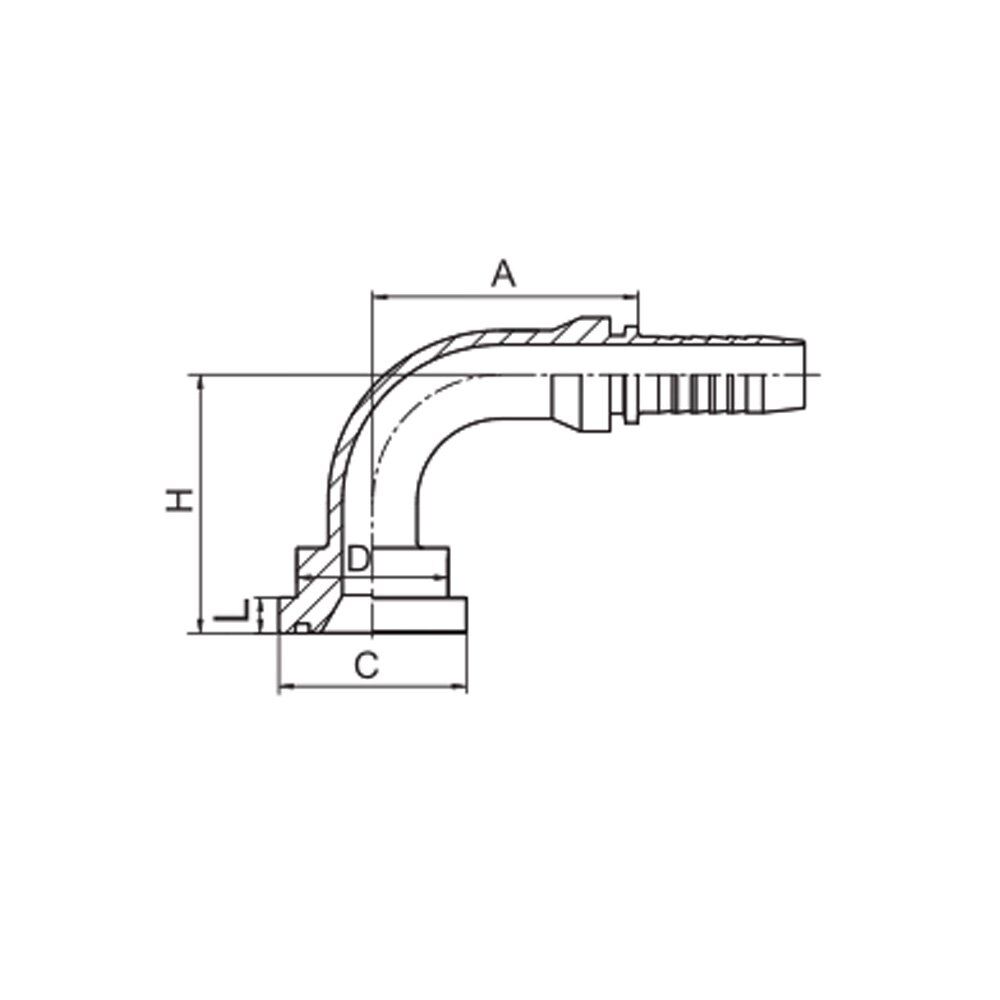

90° SAE FLANGE 3000PSI ISO 12151-3-SAE J516
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | D | H | L | ||
| 87391-08-08 | 1/2″ | 12 | 08 | 41 | 30.2 | 24 | 47 | 6.73 |
| 87391-12-08 | 3/4″ | 12 | 08 | 41 | 38.1 | 31.7 | 48 | 6.73 |
| 87391-12-10 | 3/4″ | 16 | 10 | 56 | 38.1 | 31.7 | 52.5 | 6.73 |
| 87391-12-12 | 3/4″ | 20 | 12 | 66.2 | 38.1 | 31.7 | 62 | 6.73 |
| 87391-12-16 | 3/4″ | 25 | 16 | 76.7 | 38.1 | 67.5 | 6.73 | |
| 87391-16-12 | 1″ | 20 | 12 | 65.5 | 44.4 | 38 | 62 | 8 |
| 87391-16-16 | 1″ | 25 | 16 | 76.7 | 44.4 | 38 | 67.5 | 8 |
| 87391-16-20 | 1” | 32 | 20 | 91.5 | 44.4 | 38 | 78.5 | 8 |
| 87391-20-16 | 1.1/4″ | 25 | 16 | 76.7 | 50.8 | 43 | 67.5 | 8 |
| 87391-20-20 | 1.1/4″ | 32 | 20 | 91.5 | 50.8 | 43 | 78.5 | 8 |
| 87391-20-24 | 1.1/4″ | 40 | 24 | 107 | 60.3 | 50 | 78.5 | 8 |
| 87391-24-20 | 1.1/2″ | 32 | 20 | 91.5 | 60.3 | 50 | 80.5 | 8 |
| 87391-24-24 | 1.1/2″ | 40 | 24 | 109.4 | 60.3 | 50 | 94 | 8 |
| 87391-32-24 | 2″ | 40 | 24 | 109.4 | 71.4 | 62 | 94 | 9.53 |
| 87391-32-32 | 2″ | 50 | 32 | 131.8 | 71.4 | 62 | 114.3 | 9.53 |
| 87391-40-32 | 2.1/2″ | 50 | 32 | 131.8 | 84.1 | 74.4 | 116.3 | 9.83 |
