Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 22692D-xx-xxSM.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

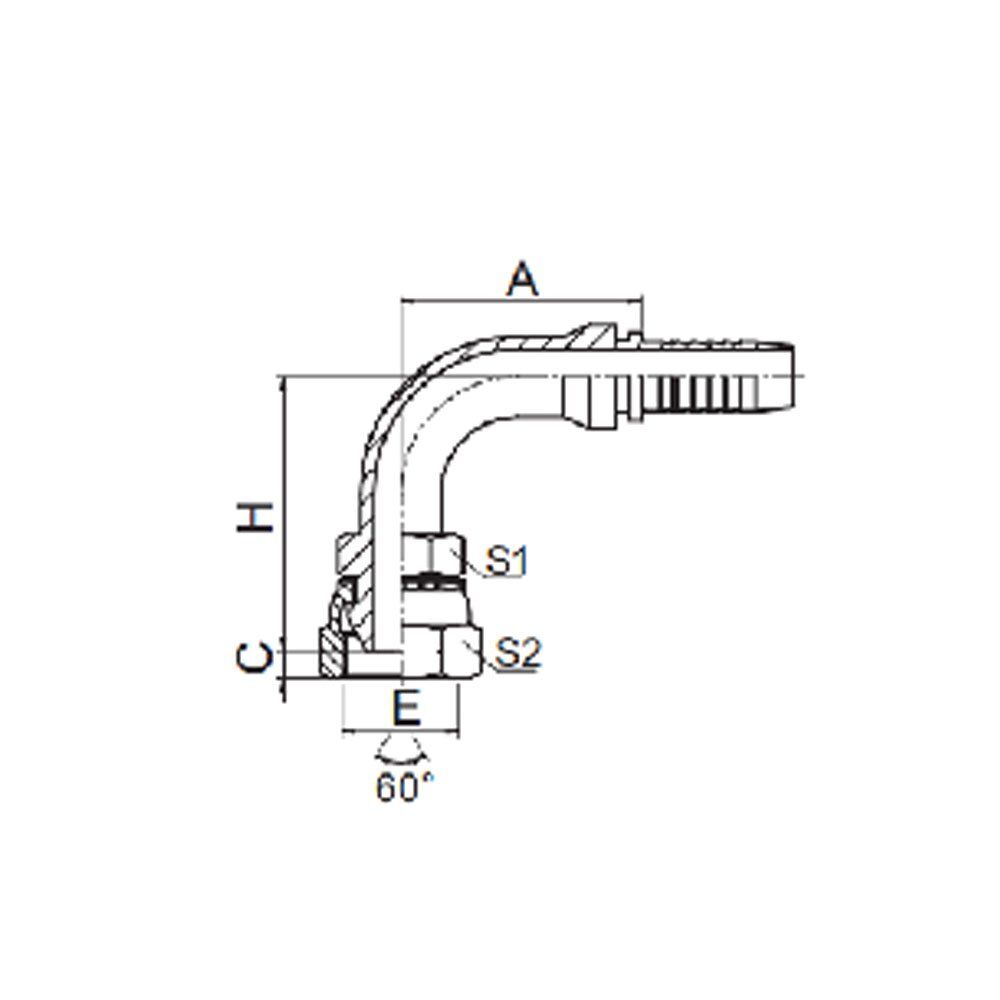

90°BSP FEMALE 60° CONE DOUBLE HEXAGON
| PART NO. | THREAD | HOSE BORE | A | C | H | S1 | S2 | |
| DN | DASH | |||||||
| 22691D-04-04SM | G1/4″X19 | 6 | 04 | 30 | 5.5 | 40.5 | 14 | 19 |
| 22691D-06-06SM | G3/8″X19 | 10 | 06 | 35.3 | 6.3 | 49 | 17 | 22 |
| 22691D-08-08SM | G1/2″X14 | 12 | 08 | 41 | 7.5 | 58 | 22 | 27 |
| 22691D-10-08SM | G5/8″X14 | 12 | 08 | 41 | 9.5 | 58 | 22 | 30 |
| 22691D-12-08SM | G3/4″X14 | 12 | 08 | 41.5 | 10.9 | 58 | 27 | 32 |
| 22691D-12-12SM | G3/4″X14 | 20 | 12 | 65.5 | 10.9 | 74 | 27 | 32 |
| 22691D-16-16SM | G1″X11 | 25 | 16 | 76.7 | 11.7 | 82.8 | 32 | 41 |
90°BSP FEMALE 60° CONE DOUBLE HEXAGON
| PART NO. | THREAD | HOSE BORE | A | C | H | S1 | S2 | |
| DN | DASH | |||||||
| 22691D-04-04SM | G1/4″X19 | 6 | 04 | 30 | 5.5 | 40.5 | 14 | 19 |
| 22691D-06-06SM | G3/8″X19 | 10 | 06 | 35.3 | 6.3 | 49 | 17 | 22 |
| 22691D-08-08SM | G1/2″X14 | 12 | 08 | 41 | 7.5 | 58 | 22 | 27 |
| 22691D-10-08SM | G5/8″X14 | 12 | 08 | 41 | 9.5 | 58 | 22 | 30 |
| 22691D-12-08SM | G3/4″X14 | 12 | 08 | 41.5 | 10.9 | 58 | 27 | 32 |
| 22691D-12-12SM | G3/4″X14 | 20 | 12 | 65.5 | 10.9 | 74 | 27 | 32 |
| 22691D-16-16SM | G1″X11 | 25 | 16 | 76.7 | 11.7 | 82.8 | 32 | 41 |
