1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 51092-xx-xx.

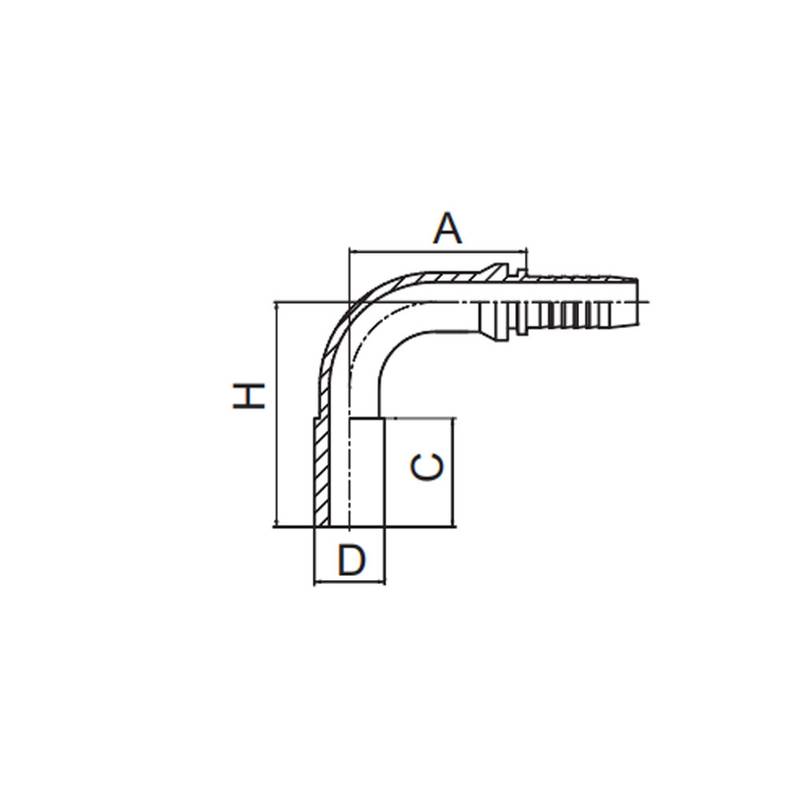

GB METRIC 90° STANDPIPE
| PART NO. | TUBE O.D. | HOSE BORE | A | C | H | |
| DN | DASH | |||||
| 51091-06-04 | 6 | 6 | 04 | 30.5 | 19 | 42.5 |
| 51091-06-06 | 6 | 10 | 06 | 35.3 | 19 | 47.8 |
| 51091-08-04 | 8 | 6 | 04 | 30 | 19 | 42.5 |
| 51091-08-05 | 8 | 8 | 05 | 33 | 19 | 45.5 |
| 51091-10-04 | 10 | 6 | 04 | 30 | 22 | 45.5 |
| 51091-10-06 | 10 | 10 | 06 | 35.8 | 22 | 50.8 |
| 51091-12-06 | 12 | 10 | 06 | 35.3 | 22 | 50.8 |
| 51091-12-08 | 12 | 12 | 08 | 41 | 22 | 56 |
| 51091-14-06 | 14 | 10 | 06 | 35.3 | 22 | 50.8 |
| 51091-14-08 | 14 | 12 | 08 | 41 | 22 | 56 |
| 51091-15-10 | 15 | 16 | 10 | 56.5 | 26 | 64.5 |
| 51091-16-08 | 16 | 12 | 08 | 42 | 22 | 56 |
| 51091-16-10 | 16 | 16 | 10 | 56.5 | 22 | 60.5 |
| 51091-18-10 | 18 | 16 | 10 | 56.5 | 24 | 62.5 |
| 51091-18-12 | 18 | 20 | 12 | 64.9 | 24 | 72 |
| 51091-22-14 | 22 | 22 | 14 | 71.2 | 28 | 77 |
| 51091-28-16 | 28 | 25 | 16 | 76.7 | 30 | 83.5 |
| 51091-34-20 | 34 | 32 | 20 | 91.5 | 33 | 97.5 |
| 51091-42-24 | 42 | 40 | 24 | 109.4 | 35 | 113 |
