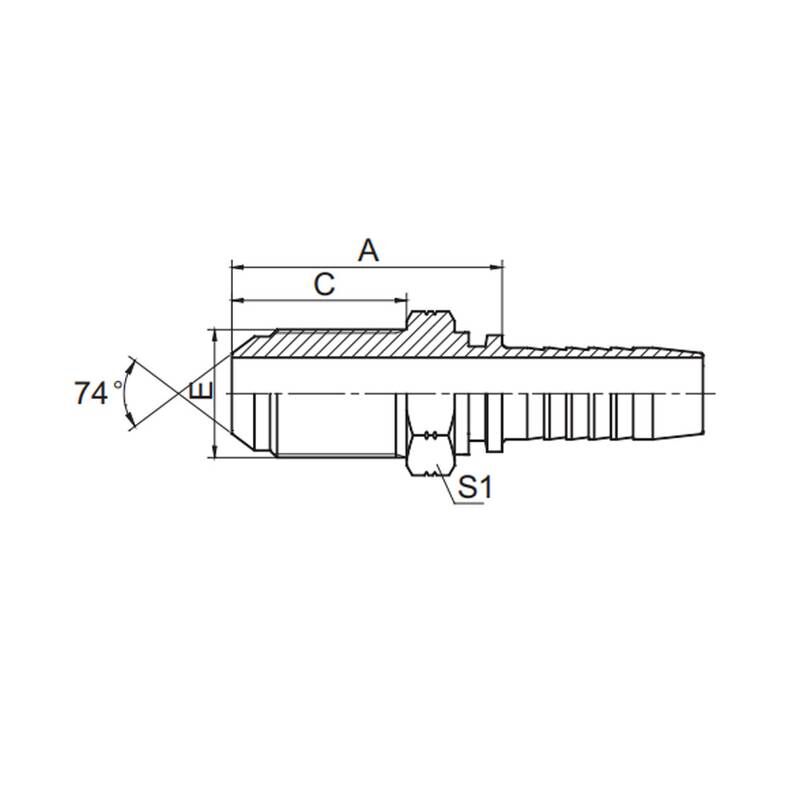

JIC MALE 74° CONE
| PART NO. | THREAD | HOSE BORE | A | C | S1 | |
| DN | DASH | |||||
| 16711L-04-04 | 7/16″X20 | 6 | 04 | 43 | 30.5 | 17 |
| 16711L-05-04 | 1/2″X20 | 6 | 04 | 43 | 30.5 | 19 |
| 16711L-05-05 | 1/2″X20 | 8 | 05 | 43 | 30.5 | 19 |
| 16711L-06-04 | 9/16″X18 | 6 | 04 | 47 | 32.5 | 22 |
| 16711L-06-05 | 9/16″X18 | 8 | 05 | 47 | 32.5 | 22 |
| 16711L-06-06 | 9/16″X18 | 10 | 06 | 47 | 32.5 | 22 |
| 16711L-08-06 | 3/4″X16 | 10 | 06 | 51 | 36.5 | 24 |
| 16711L-08-08 | 3/4″X16 | 12 | 08 | 51.5 | 36.5 | 24 |
| 16711L-10-06 | 7/8″X14 | 10 | 06 | 56.5 | 40 | 30 |
| 16711L-10-08 | 7/8″X14 | 12 | 08 | 57 | 40 | 30 |
| 16711L-10-10 | 7/8″X14 | 16 | 10 | 58 | 40 | 30 |
| 16711L-12-08 | 1.1/16″X12 | 12 | 08 | 63 | 44.5 | 36 |
| 16711L-12-10 | 1.1/16″X12 | 16 | 10 | 64 | 44.5 | 36 |
| 16711L-12-12 | 1.1/16″X12 | 20 | 12 | 64 | 44.5 | 36 |
| 16711L-16-12 | 1.5/16″X12 | 20 | 12 | 66 | 44.5 | 41 |
| 16711L-16-16 | 1.5/16″X12 | 25 | 16 | 67 | 44.5 | 41 |
| 16711L-20-16 | 1.5/8″X12 | 25 | 16 | 70.5 | 45.7 | 50 |
| 16711L-20-20 | 1.5/8″X12 | 32 | 20 | 71.2 | 45.7 | 50 |
| 16711L-24-20 | 1.7/8″X12 | 32 | 20 | 71.5 | 46 | 55 |
| 16711L-24-24 | 1.7/8″X12 | 40 | 24 | 71.5 | 46 | 55 |
