Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 26712D-xx-xxSM.

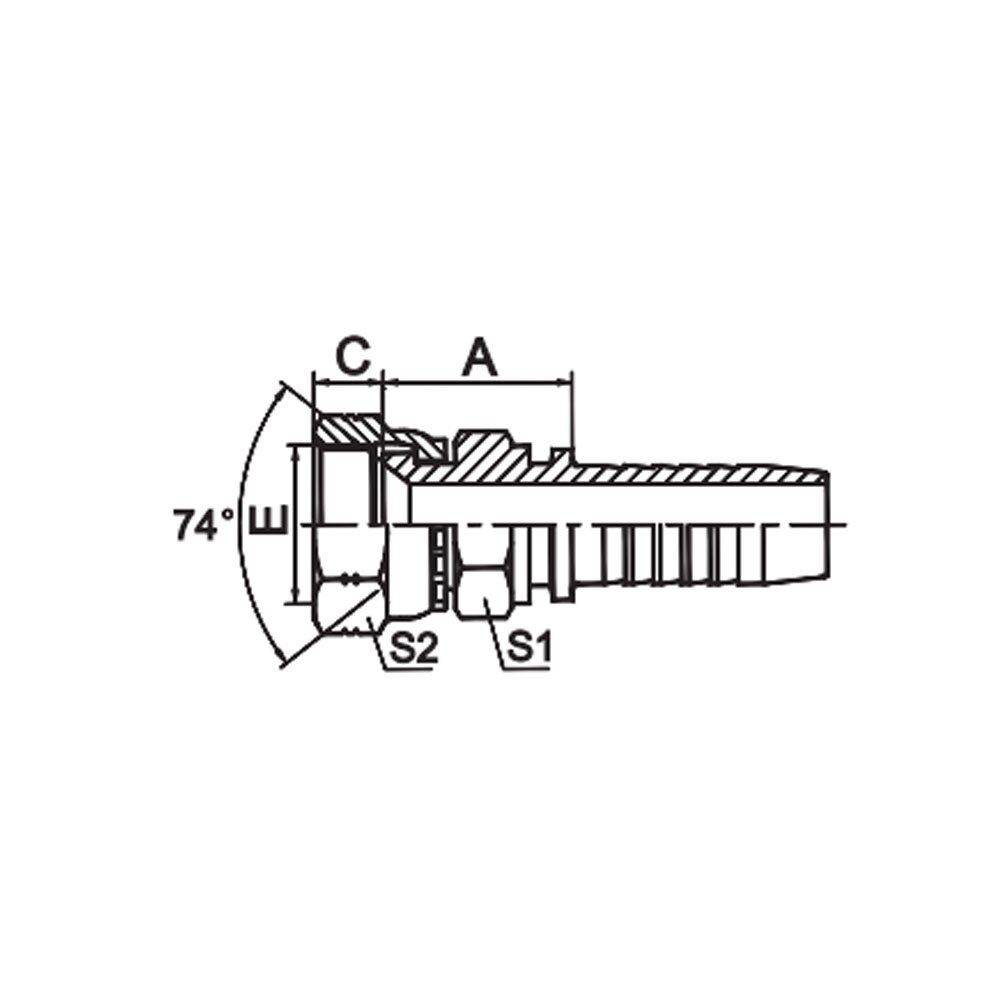

JIC FEMALE 74° CONE SEAT DOUBLE HEXAGON SEA J514
| PART NO. | THREAD | HOSE BORE | A | C | S1 | S2 | |
| DN | DASH | ||||||
| 26711D-04-04SM | 7/16″X20 | 6 | 04 | 20 | 9 | 12 | 15 |
| 26711D-05-04SM | 1/2″X20 | 6 | 04 | 20.5 | 9.5 | 12 | 17 |
| 26711D-06-04SM | 9/16″X18 | 6 | 04 | 21 | 10.5 | 14 | 19 |
| 26711D-06-06SM | 9/16″X18 | 10 | 06 | 21 | 10.5 | 17 | 19 |
| 26711D-08-06SM | 3/4″X16 | 10 | 06 | 23 | 11 | 19 | 24 |
| 26711D-08-08SM | 3/4″X16 | 12 | 08 | 24.5 | 11 | 22 | 24 |
| 26711D-08-10SM | 3/4″X16 | 16 | 10 | 25.5 | 11 | 22 | 24 |
| 26711D-10-08SM | 7/8″X14 | 12 | 08 | 26 | 13 | 22 | 27 |
| 26711D-10-10SM | 7/8″X14 | 16 | 10 | 27 | 13 | 22 | 27 |
| 26711D-10-12SM | 1.1/16″X12 | 20 | 12 | 31.5 | 15 | 27 | 32 |
| 26711D-16-12SM | 1.5/16″X12 | 20 | 12 | 31.5 | 16 | 32 | 41 |
| 26711D-16-16SM | 1.5/16″X12 | 25 | 16 | 33 | 16 | 32 | 41 |
| 26711D-20-20WSM | 1.7/16″X12 | 32 | 20 | 39 | 17 | 41 | 50 |
