JIS BSPP MALE 60° CONE SEAT

JIS BSPP MALE 60° CONE SEAT

Category JIS Fitting Tag 19611

Additional information

Product Video

Product Details:

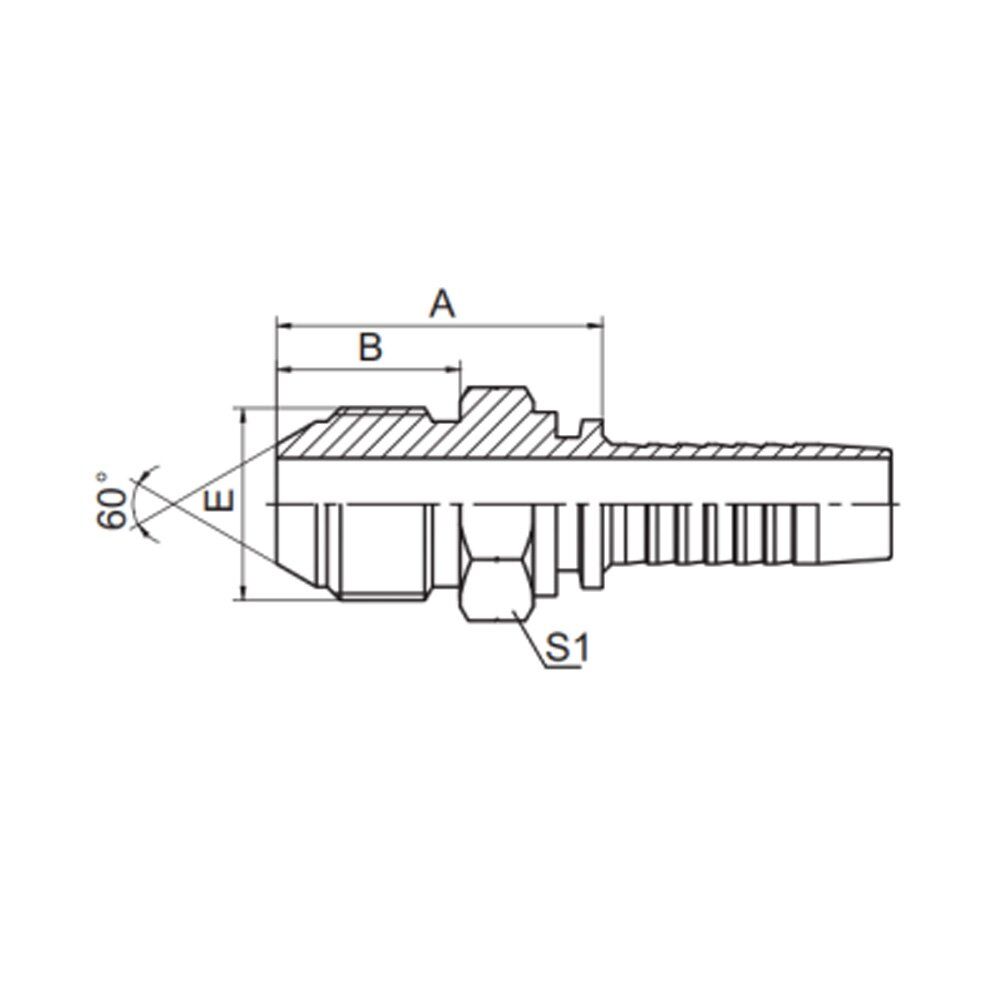

JIS BSPP MALE 60° CONE SEAT

PART NO.	THREAD	HOSE BORE		A	B	S1
PART NO.	THREAD	DN	DASH	A	B	S1
19611-04-04	G1/4″X19	6	04	29	16	17
19611–06-06	G3/8″X19	10	06	31	18	19
19611-08-08	G1/2″X14	12	08	35.5	20	22
19611-12-12	G3/4″X14	20	12	41	22	30
19611-16-16	G1″X11	25	16	45.5	24	36
