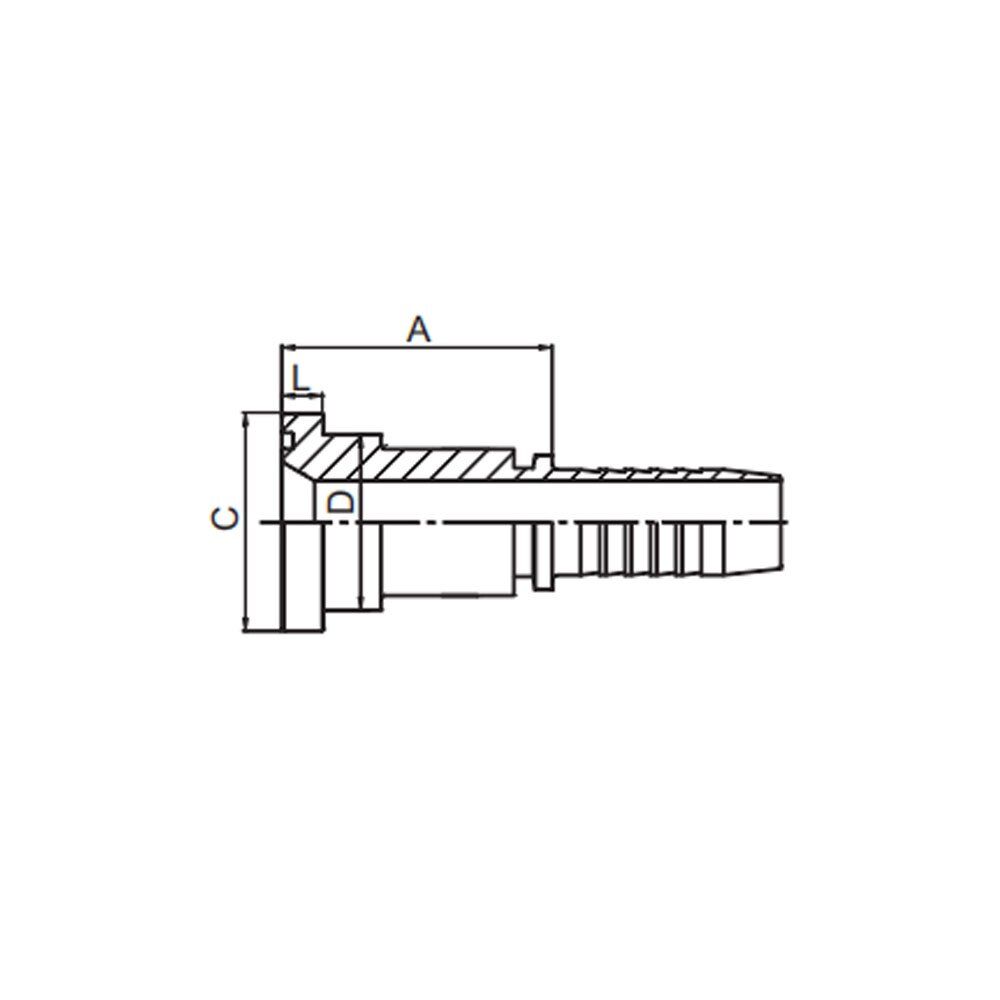

JIS FLANGE
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | D | L | ||
| 88111-10-08 | 5/8″ | 12 | 08 | 45 | 34.2 | 27.8 | 6.7 |
| 88111-10-10 | 5/8″ | 16 | 10 | 45.5 | 34.2 | 27.8 | 6.7 |
| 88111-10-12 | 5/8″ | 20 | 12 | 46 | 34.2 | 27.8 | 6.7 |
Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 88112-xx-xx.
