Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 87612-xx-xx.

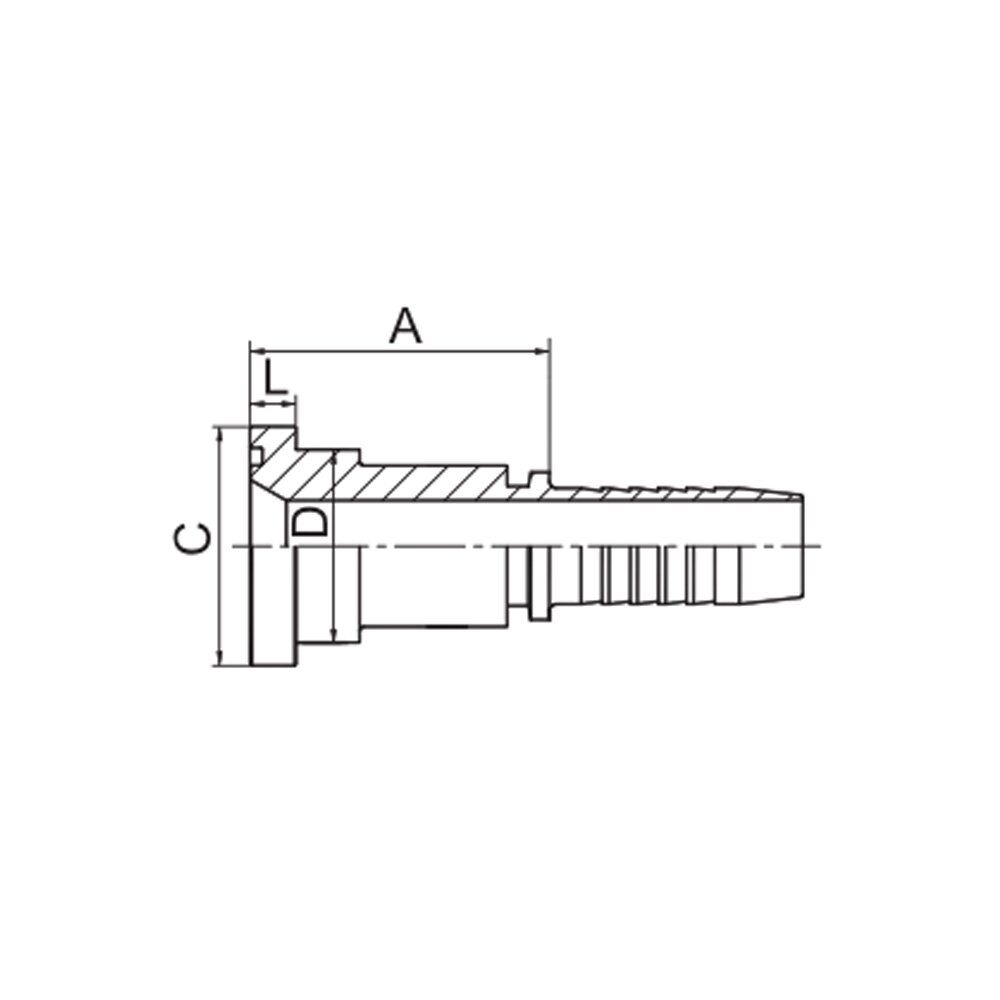

SAE FLANGE 6000PSI ISO 12151-3-SAE J516
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | D | L | ||
| 87611-08-08 | 1/2″ | 12 | 08 | 47 | 31.7 | 24 | 7.75 |
| 87611-12-10 | 3/4″ | 16 | 10 | 50.5 | 41.3 | 32 | 8.76 |
| 87611-12-12 | 3/4″ | 20 | 12 | 51 | 41.3 | 32 | 8.76 |
| 87611-16-12 | 1″ | 20 | 12 | 56 | 47.6 | 38 | 9.53 |
| 87611-16-16 | 1″ | 25 | 16 | 57 | 47.6 | 38 | 9.53 |
| 87611-16-20 | 1″ | 32 | 20 | 61 | 47.6 | 38 | 9.53 |
| 87611-20-16 | 1.1/4″ | 25 | 16 | 65 | 54.0 | 44 | 10.29 |
| 87611-20-20 | 1.1/4″ | 32 | 20 | 66 | 54.0 | 44 | 10.29 |
| 87611-24-20 | 1.1/2″ | 32 | 20 | 75 | 63.5 | 51 | 12.57 |
| 87611-24-24 | 1.1/2″ | 40 | 24 | 75 | 63.5 | 51 | 12.57 |
| 87611-32-24 | 2″ | 40 | 24 | 85 | 79.4 | 67 | 12.57 |
| 87611-32-32 | 2″ | 50 | 32 | 85 | 79.4 | 67 | 12.57 |
