Description

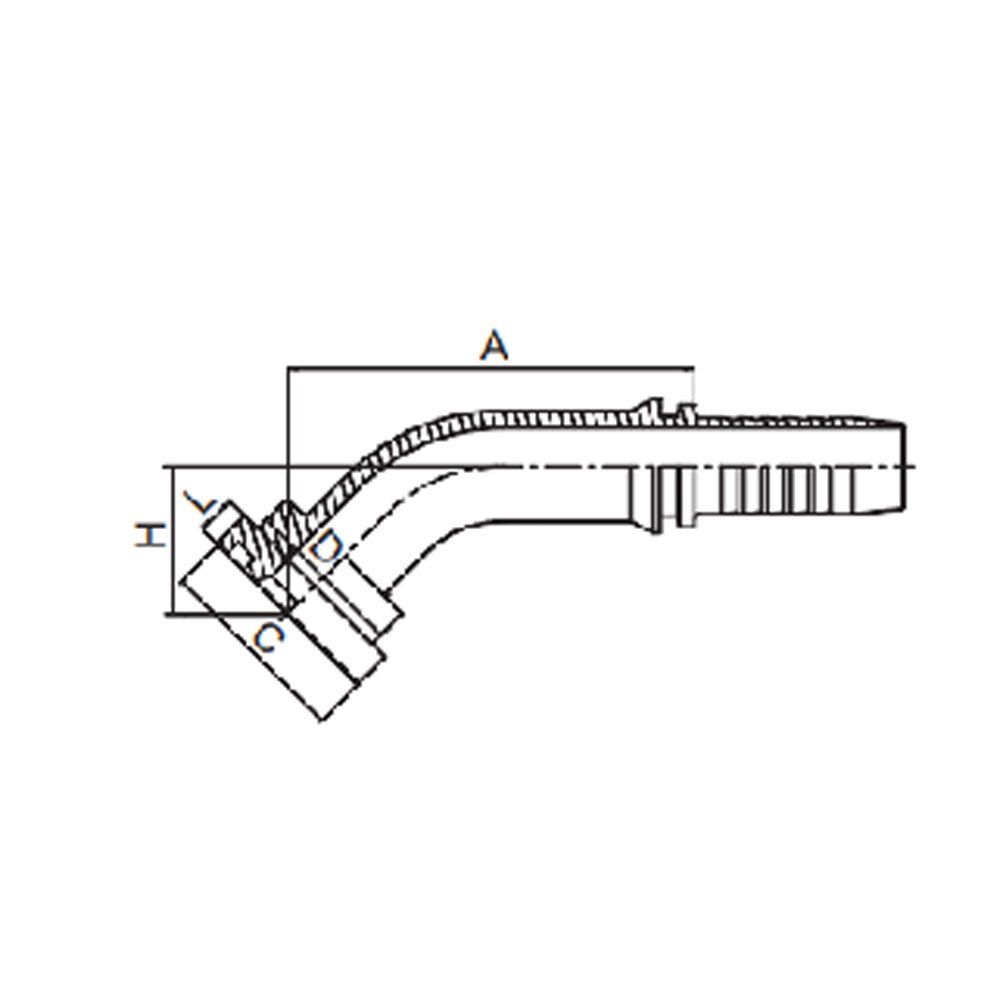

45° JIS FLANGE
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | D | H | L | ||
| 88141-10-08 | 5/8″ | 12 | 08 | 58.9 | 34.2 | 27.8 | 24 | 6.7 |
| 88141-10-10 | 5/8″ | 16 | 10 | 69.6 | 34.2 | 27.8 | 25.3 | 6.7 |
| 88141-10-12 | 5/8″ | 20 | 12 | 76.3 | 34.2 | 27.8 | 28.9 | 6.7 |
Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 88142-xx-xx.
