If you are interested to order the fitting with lock nut, please insert suffic”LN” after our part no. For example 10811L-12-04LN.

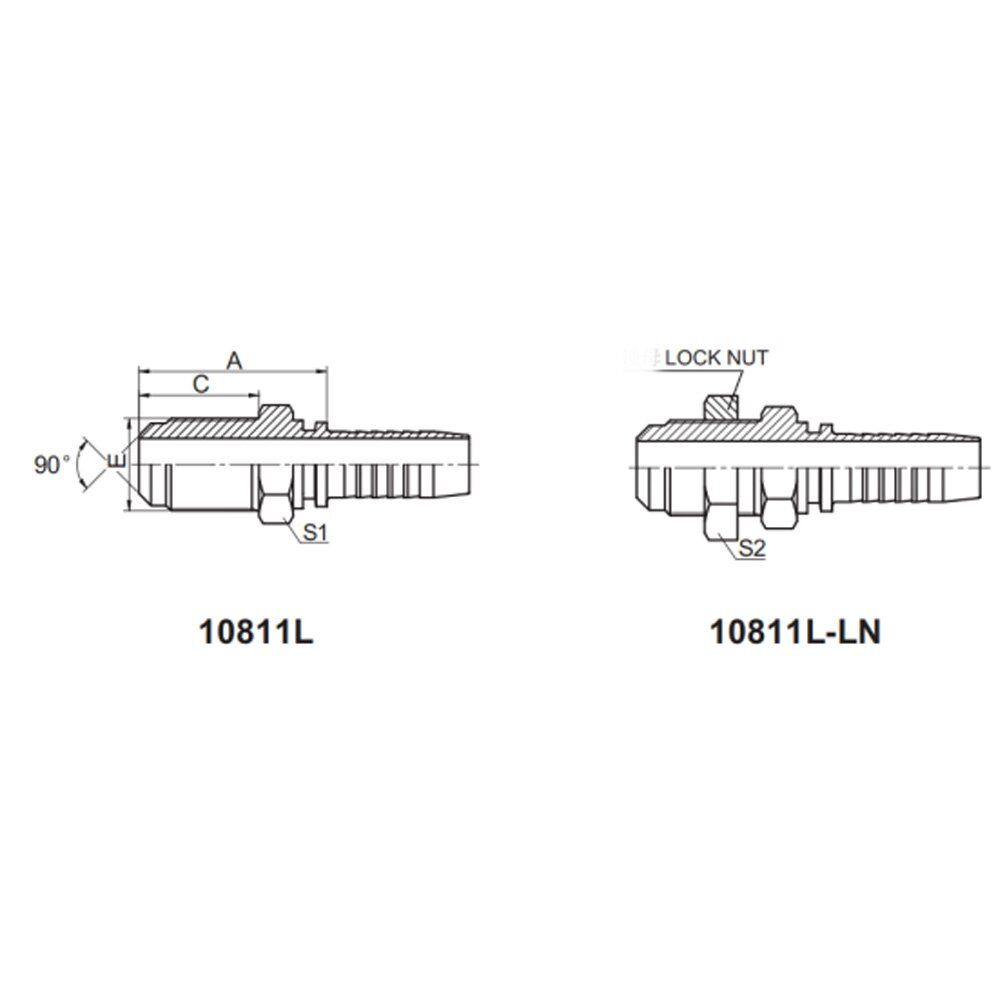

METRIC MALE 90° CONE
| PART NO. | THREAD | HOSE BORE | A | C | S1 | S2 | |
| DN | DASH | ||||||
| 10811L-12-04 | M12X1.5 | 6 | 04 | 46 | 34 | 17 | 17 |
| 10811L-12-04A | M12X1 | 6 | 04 | 44.5 | 32.5 | 17 | 17 |
| 10811L-14-04 | M14X1.5 | 6 | 04 | 46 | 34 | 17 | 19 |
| 10811L–14-06 | M14X1.5 | 10 | 06 | 46.5 | 34 | 17 | 19 |
| 10811L-16-04 | M16X1.5 | 6 | 04 | 46.5 | 34 | 19 | 22 |
| 10811L-16-06 | M16X1.5 | 10 | 06 | 46.5 | 34 | 22 | 22 |
| 10811L-20-06 | M20X1.5 | 10 | 06 | 57 | 40 | 27 | 27 |
| 10811L-20-08 | M20X1.5 | 12 | 08 | 57.5 | 40 | 27 | 27 |
| 10811L-22-08 | M22X1.5 | 12 | 08 | 62.5 | 45 | 27 | 27 |
