Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 21612-xx-xx.

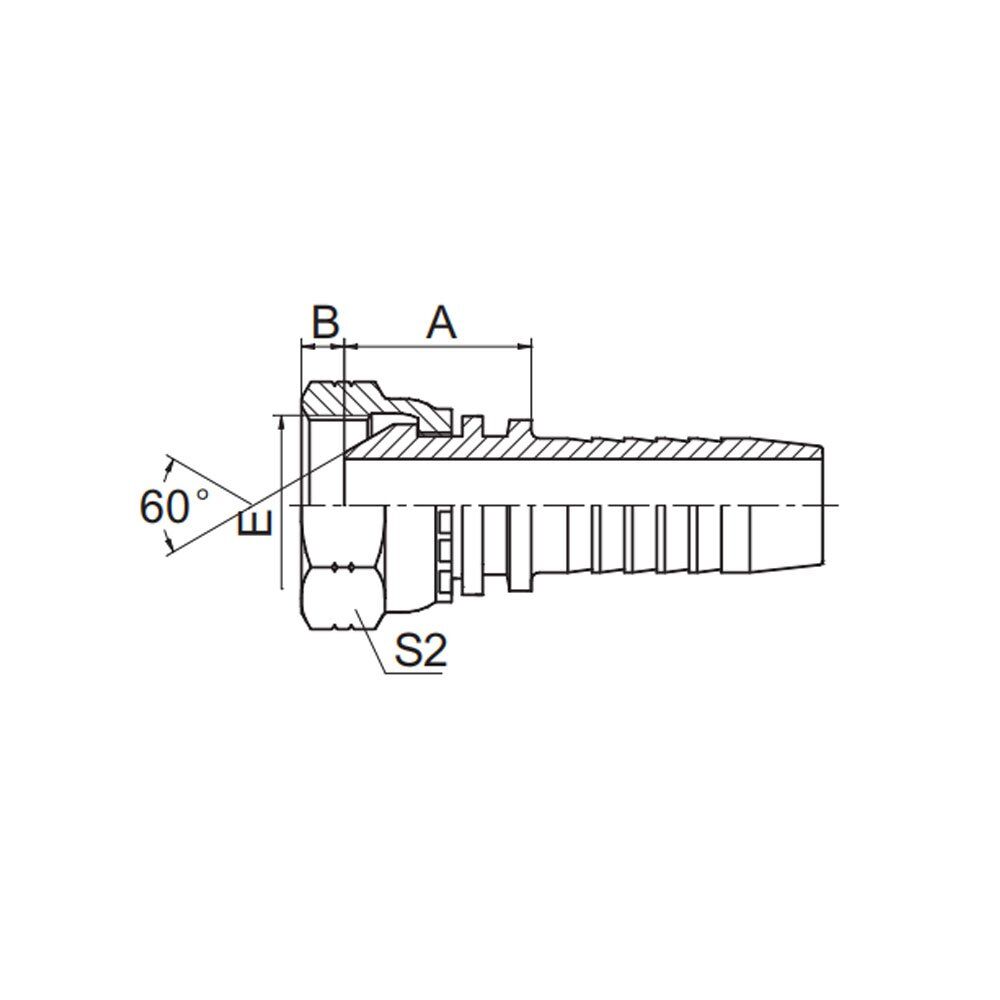

NPSM FEMALE 60° CONE SAE J514
| PART NO. | THREAD | HOSE BORE | A | B | S2 | |
| DN | DASH | |||||
| 21611-04-04 | 1/4″X18 | 6 | 04 | 18 | 4.6 | 19 |
| 21611-04-06 | 1/4″X18 | 10 | 06 | 19 | 4.6 | 19 |
| 21611-06-04 | 3/8″X18 | 6 | 04 | 19 | 6 | 22 |
| 21611-06-05 | 3/8″X18 | 8 | 05 | 19 | 6 | 22 |
| 21611-06-06 | 3/8″X18 | 10 | 06 | 19 | 6 | 22 |
| 21611-08-08 | 1/2″X14 | 12 | 08 | 21.5 | 7.5 | 27 |
| 21611-12-10 | 3/4″X14 | 16 | 10 | 24 | 8.9 | 32 |
| 21611-12-12 | 3/4″X14 | 20 | 12 | 24 | 8.9 | 32 |
| 21611-16-12T | 1″X11.5 | 20 | 12 | 25 | 10.5 | 41 |
| 21611-16-16 | 1″X11.5 | 25 | 16 | 27 | 10.5 | 41 |
| 21611-20-20W | 1.1/4″X11.5 | 32 | 20 | 29.5 | 11.2 | 50 |
| 21611-24-24W | 1.1/2″X11.5 | 40 | 24 | 29.5 | 11.2 | 55 |
