SAE MALE 90° CONE SAE J513

Category Tag

Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 17812-xx-xx.

Additional information

ASK FOR A QUOE

Product Video

Product Details:

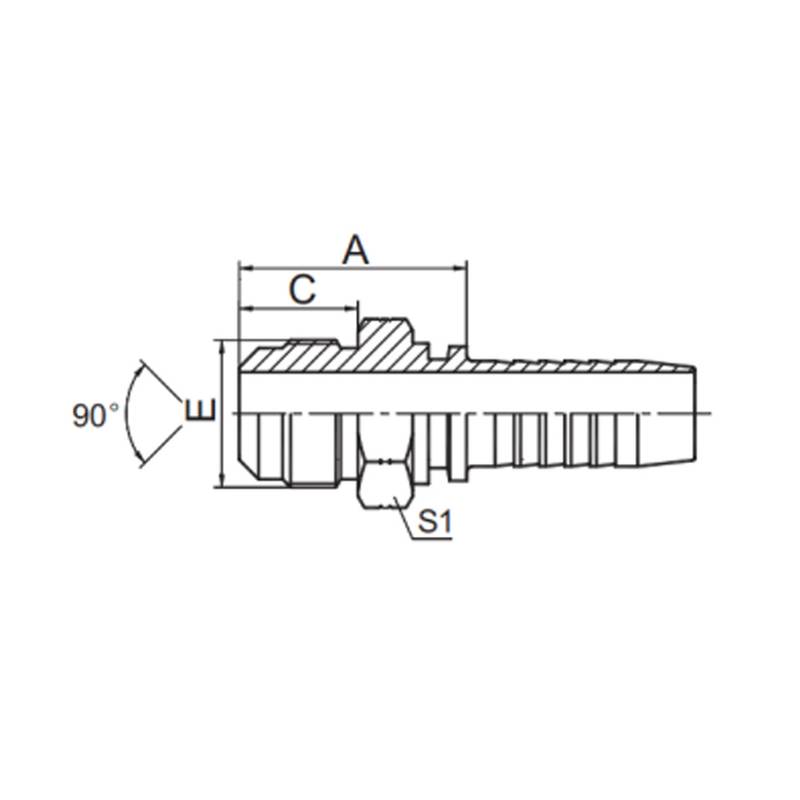

SAE MALE 90° CONE SAE J513

PART NO. THREAD HOSE BORE A C S1
DN DASH
17811-04-04 7/16″X20 6 04 25.5 12.7 12
17811-05-05 1/2″X20 8 05 27 14.2 14
17811-06-06 5/8″X18 10 06 28.5 15.7 17
17811-08-08 3/4″X16 12 08 34 19 22
17811-10-10 7/8″X14 16 10 38.5 22.4 24
17811-12-12 1.1/16″X14 20 12 44 25.4 30
