Note:
1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 17812-xx-xx.

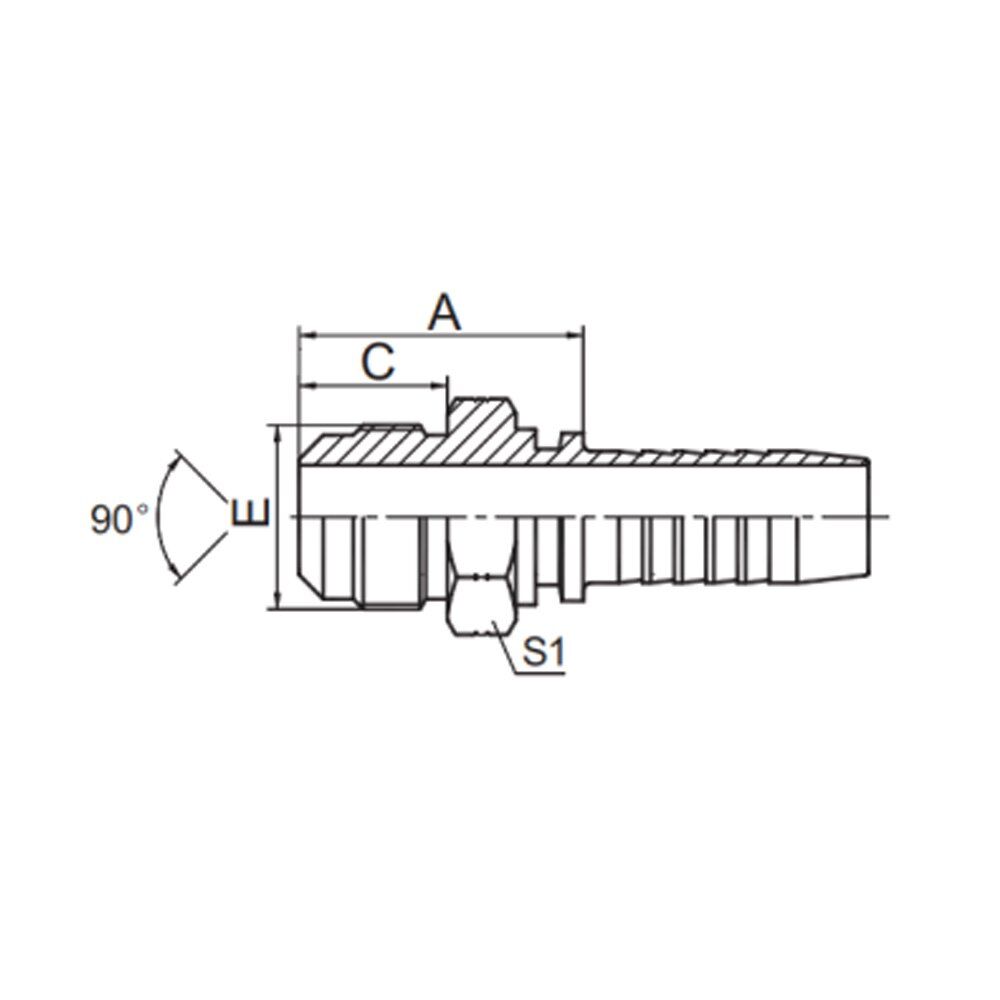

SAE MALE 90° CONE SAE J513
| PART NO. | THREAD | HOSE BORE | A | C | S1 | |
| DN | DASH | |||||
| 17811-04-04 | 7/16″X20 | 6 | 04 | 25.5 | 12.7 | 12 |
| 17811-05-05 | 1/2″X20 | 8 | 05 | 27 | 14.2 | 14 |
| 17811-06-06 | 5/8″X18 | 10 | 06 | 28.5 | 15.7 | 17 |
| 17811-08-08 | 3/4″X16 | 12 | 08 | 34 | 19 | 22 |
| 17811-10-10 | 7/8″X14 | 16 | 10 | 38.5 | 22.4 | 24 |
| 17811-12-12 | 1.1/16″X14 | 20 | 12 | 44 | 25.4 | 30 |
