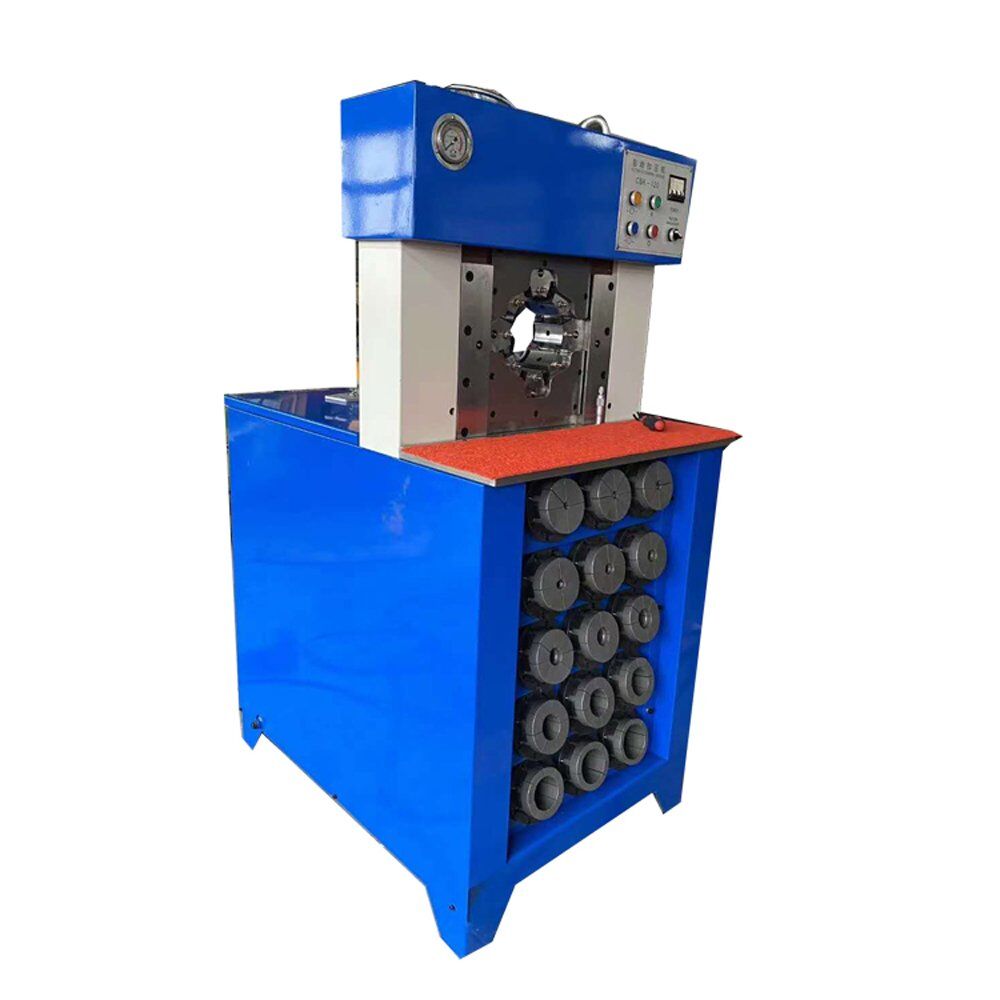

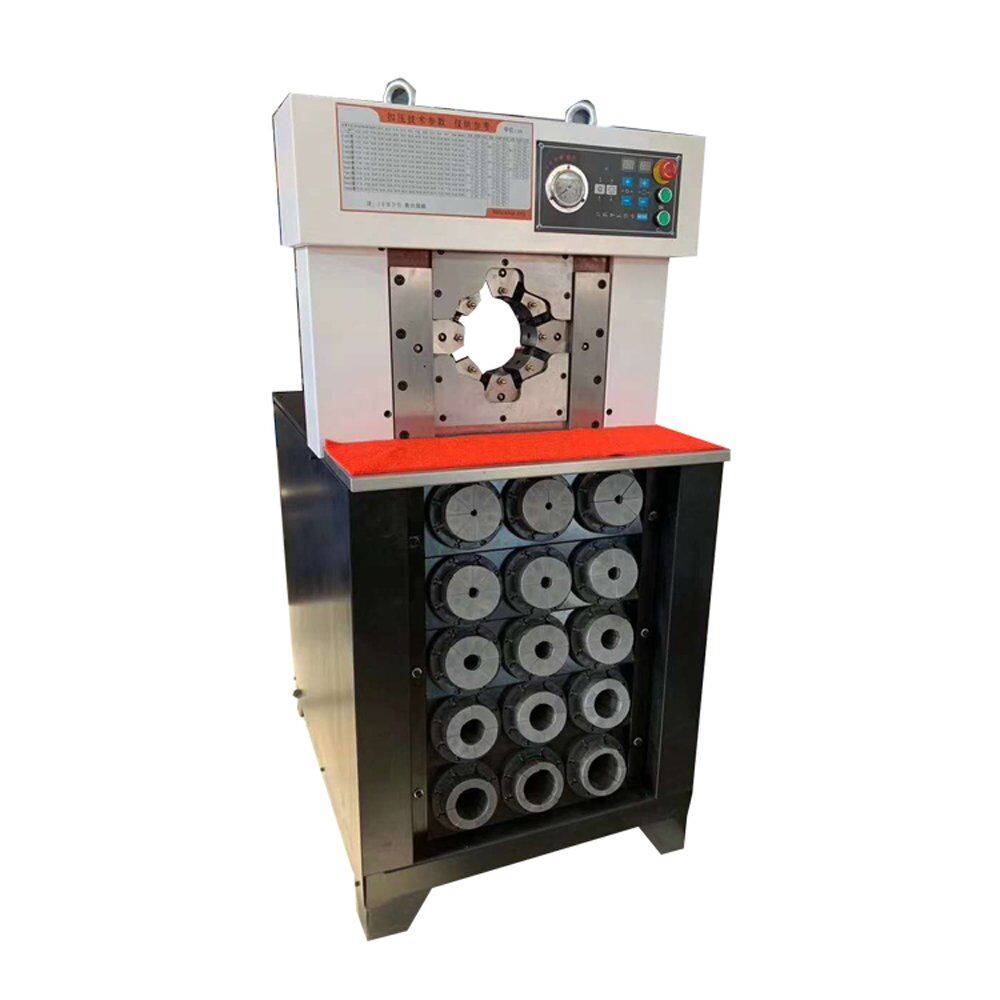

CYT-120A High-Volume Hose Crimping Equipment (1500T Force, Up to 3″ Capacity)

Description

The Ultimate High-Volume Hose Crimping Equipment

When your hydraulic repair facility transitions from standard commercial vehicles to heavy-duty mining, marine, and construction equipment, your machinery must scale accordingly. You need power, capacity, and speed. The CYT-120A Hose Crimping Equipment is a giant in the industry. Built as a complete floor-standing workstation, it is engineered to handle the thickest, highest-pressure hoses on the market without slowing down your production line.

1500 Tons of Force for 3-Inch Hoses

Most standard crimpers max out at 2 inches. The CYT-120A shatters that ceiling. Utilizing a massive hydraulic cylinder running at 31.5Mpa system pressure, it delivers a staggering 1500 Tons of mechanical force. This allows operators to easily crush heavy metal fittings onto extreme 3-inch (76mm) multi-spiral hoses. Combined with a huge 165mm die opening, you can effortlessly maneuver large-flange fittings and bulky elbows that simply will not fit into smaller machines.

Designed for Mass Production (300 pcs/hour)

Power is nothing without efficiency. Driven by a customizable high-output motor (5.5Kw or 7.5Kw) and a high-volume pump (10L/16L), this machine is built for continuous, 24/7 manufacturing shifts. It achieves an astonishing production rate of up to 300 crimps per hour. We include a heavy-duty foot pedal switch as standard, freeing up both of the operator’s hands to handle heavy, awkward hose assemblies safely and quickly.

Micro-Precision Meets Ultimate Organization

Despite its immense 1250 KG bulk, the CYT-120A operates like a surgical instrument. The precision micrometer control guarantees an accuracy of 0.01mm, ensuring every crimp meets strict international safety tolerances.

Furthermore, a messy shop is a slow shop. The robust base of the CYT-120A acts as a comprehensive tool organizer, safely storing the 15 complete sets of dies (included with the machine). This keeps your workspace hazard-free and ensures your technicians always have the right size die exactly when they need it.
