1. Used for braided hoses
2.If used for sprial hoses,hose fitting series No. is 87362-xx-xx.

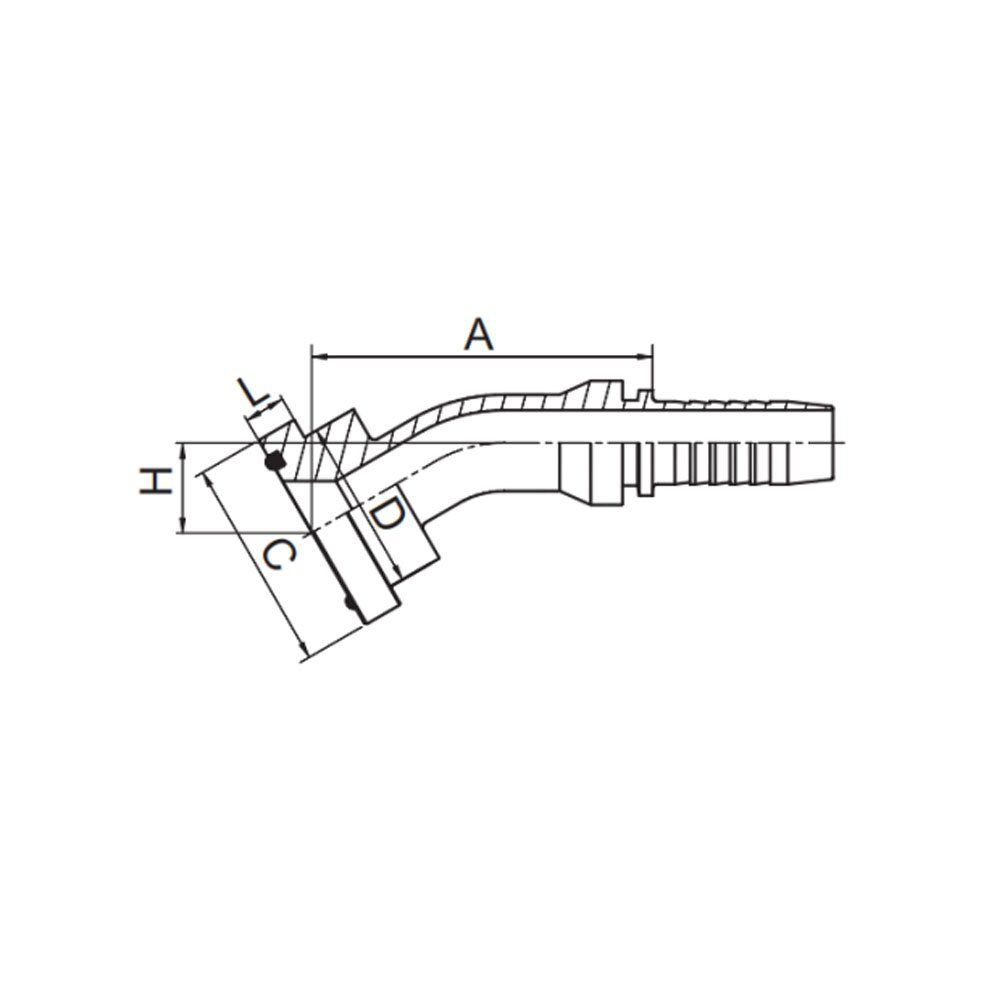

60° SAE FLANGE 3000PSI
| PART NO. | FLANGE SIZE | HOSE BORE | O RING | DIMENSIONS | |||||
| DN | DASH | A | C | D | H | L | |||
| 87361-08-08 | 1/2″ | 12 | 08 | 18.64X3.53 | 30.2 | 23.9 | 31.9 | 7 | |
| 87361-12-08 | 3/4″ | 12 | 08 | 24.99X3.53 | 38.1 | 31.7 | 33.6 | 7 | |
| 87361-12-12 | 3/4″ | 20 | 12 | 24.99X3.53 | 38.1 | 31.7 | 41.4 | 7 | |
| 87361-12-16 | 3/4″ | 25 | 16 | 32.92X3.53 | 38.1 | 31.7 | 7 | ||
| 87361-16-12 | 1″ | 20 | 12 | 32.92X3.53 | 44.4 | 38 | 41.4 | 8.2 | |
| 87361-16-16 | 1″ | 25 | 16 | 32.92X3.53 | 44.4 | 38 | 43.4 | 8.2 | |
| 87361-16-20 | 1″ | 32 | 20 | 32.92X3.53 | 44.4 | 38 | 8.2 | ||
| 87361-20-16 | 1.1/4″ | 25 | 16 | 37.69X3.53 | 50.8 | 43.2 | 43.4 | 8.2 | |
| 87361-20-20 | 1.1/4″ | 32 | 20 | 37.69X3.53 | 50.8 | 43.2 | 49.6 | 8.2 | |
| 87361-20-24 | 1.1/4″ | 40 | 24 | 37.69X3.53 | 50.8 | 43.2 | 8.2 | ||
| 87361-24-20 | 1.1/2″ | 32 | 20 | 47.22X3.53 | 60.3 | 50.3 | 53.9 | 8.2 | |
| 87361-24-24 | 1.1/2″ | 40 | 24 | 47.22X3.53 | 60.3 | 50.3 | 60.7 | 8.2 | |
| 87361-32-24 | 2″ | 40 | 24 | 56.74X3.53 | 71.4 | 62.2 | 60.7 | 9.8 | |
| 87361-32-32 | 2″ | 50 | 32 | 56.74X3.53 | 71.4 | 62.2 | 71.9 | 9.8 | |
| 87361-40-32 | 2.1/2″ | 50 | 32 | 69.44X3.53 | 84.1 | 74.4 | 9.8 | ||
